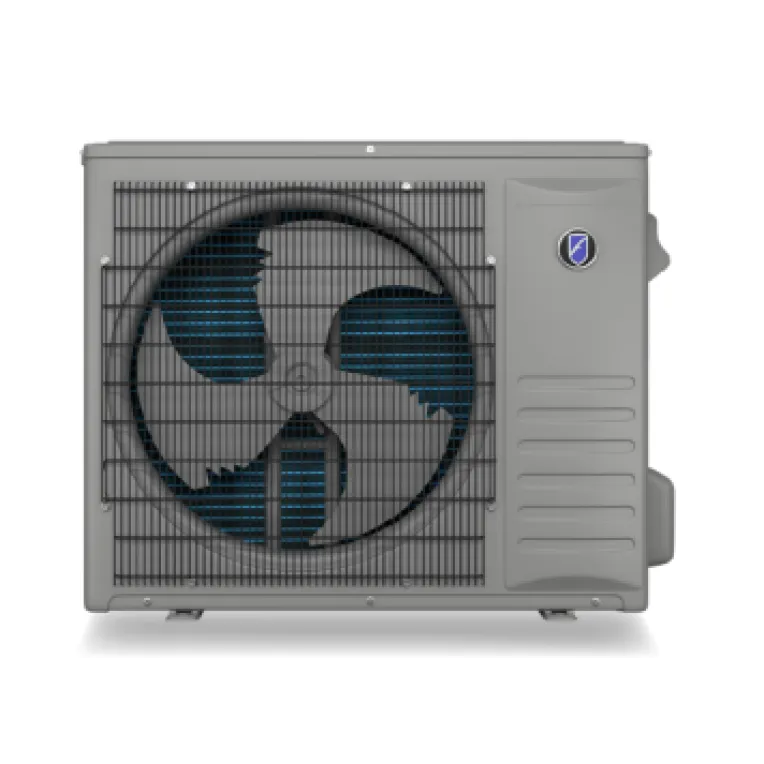

Friedrich FSHSR36B3D Floating Air Select Series Outdoor Unit 36000 BTU

Product Description

The Friedrich FSHSR36B3D Floating Air Select Series outdoor mini split condenser uses inverter technology for efficient cooling. It features variable compressor speeds and R32 refrigerant with a Global Warming Potential (GWP) of 675. This single zone outdoor unit is compatible with the Friedrich FAHSW36A3D wall unit, offering 34,600 BTU cooling and 35,000 BTU heating.

• Inverter Technology for energy efficiency and self-adjusting capacity
• FastPro design for easy access to drain pan, blower, and terminal blocks
• Ultra quiet operation

Product Highlights

The Friedrich FSHSR36B3D offers efficient cooling and heating with easy installation and maintenance.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FSHSR36B3D

Technical Specifications

• Cooling Capacity: 34,600 Btu/h
• Heating Capacity: 35,000 Btu/h
• Includes Heat Pump: Yes
• Outdoor Unit Noise Level (dBA): 60
• Inverter Technology: Yes
• Liquid Line: 3/8"
• Gas Line: 5/8"
• Maximum Pipe Length (ft.): 98
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -5°F - 75°F
• Min. Outdoor Temp for Heat °F: -5
• Voltage: 208-230V
• Amps: 25.8
• Circuit Breaker Size (Amps): 40
• Refrigerant: R-32
• COP2: 3.2
• EER2: 9.5
• HSPF2: 8.4
• Connection: Flare
• Moisture Removal: 7.9
• Max. Airflow: 2,590 CFM
• Fan Motor: 102W (Output)
