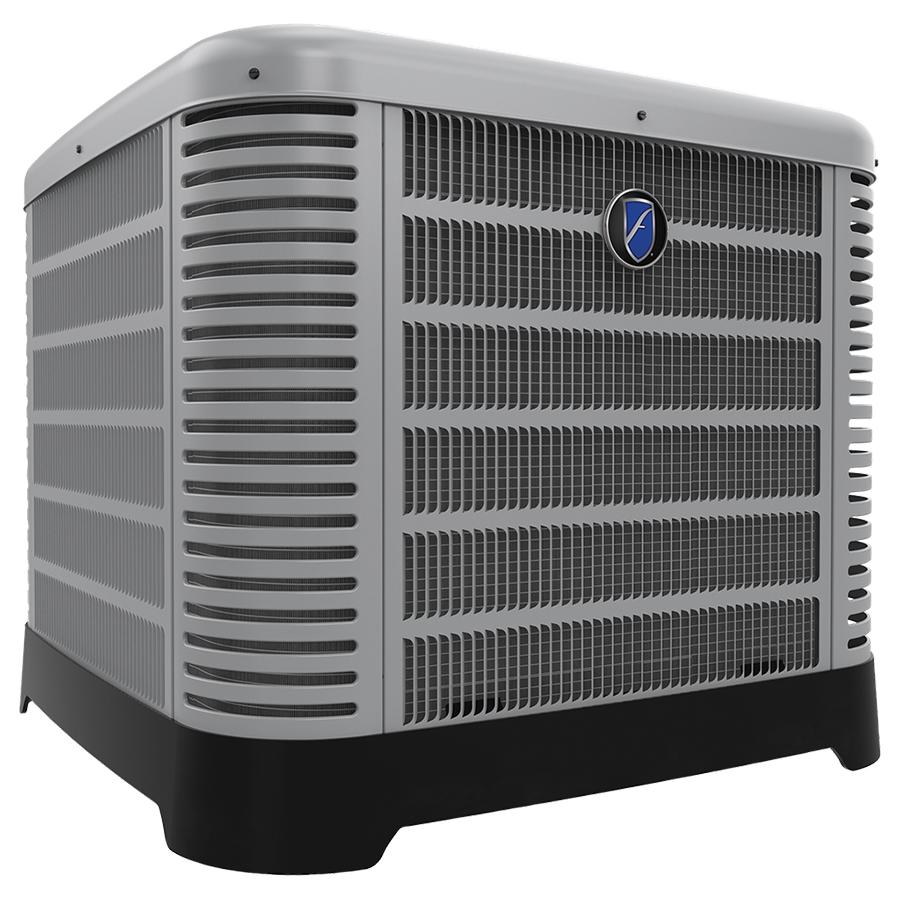

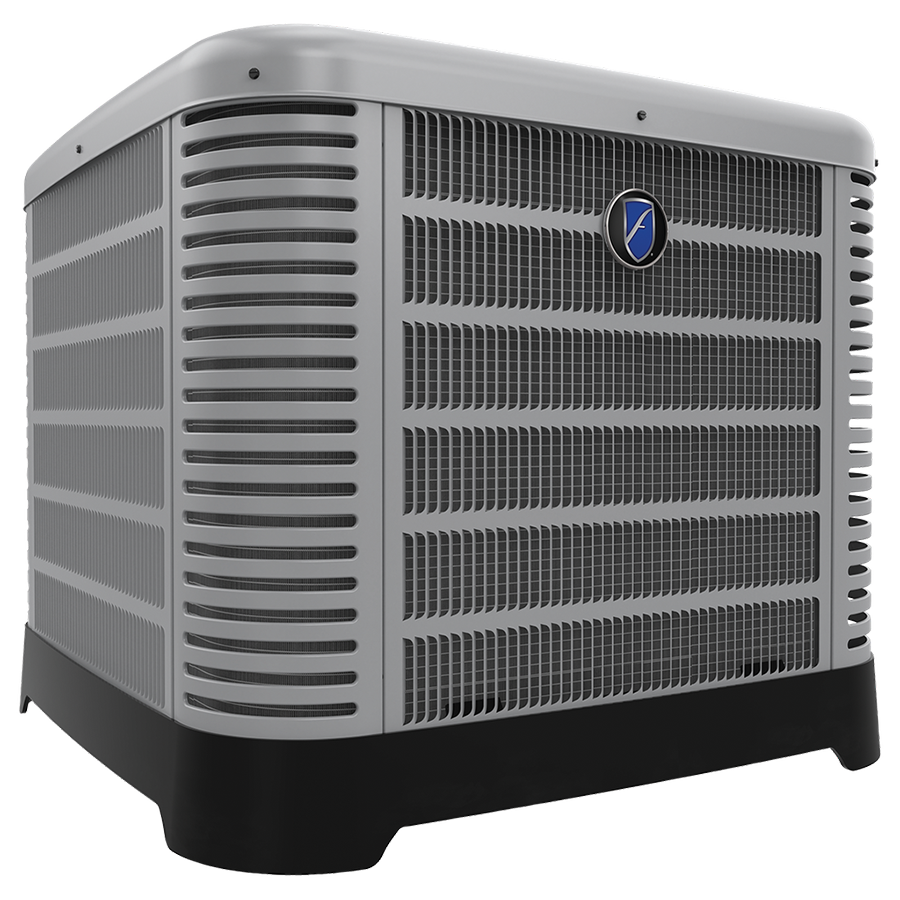

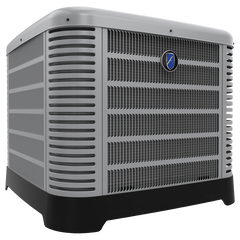

Friedrich FRP15AY30AJ2NA Heat Pump 2.5 Ton 15 SEER2

Product Description

The FRIEDRICH FRP15AY30AJ2NA is a 2.5-ton two-stage heat pump designed for residential and light-commercial split-system HVAC applications. It delivers 30,000 BTU/h of cooling capacity at 15 SEER2 efficiency, meeting current Department of Energy regional efficiency standards. The unit operates on R454B refrigerant, a lower-GWP A2L refrigerant that has replaced R410A in new equipment lines. Two-stage compression allows the system to run at a reduced capacity stage during mild conditions, improving comfort, humidity control, and runtime efficiency. Licensed HVAC technicians handle installation, refrigerant handling, and system commissioning.

This heat pump is suited for residential forced-air split systems requiring a 2.5-ton outdoor condensing unit. The two-stage compressor pairs well with variable-speed or two-stage air handlers and compatible thermostats to take full advantage of staged operation. Systems using R454B require A2L-rated components, proper equipment labeling, and installers familiar with A2L handling procedures. Verify that the matched indoor coil and air handler are rated and listed for use with R454B and meet the minimum efficiency requirements for the installed region.

Key Features

• 30,000 BTU/h cooling capacity at 2.5 nominal tons
• 15 SEER2 rated efficiency, compliant with current DOE minimum standards
• Two-stage compressor operation for improved comfort and humidity management
• R454B refrigerant — lower global warming potential A2L replacement for R410A

Compatibility

Designed as an OEM split-system heat pump outdoor unit requiring a matched indoor coil and air handler rated for R454B refrigerant at 2.5 nominal tons.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician qualified to handle A2L refrigerants. Disconnect and lock out all electrical power before servicing or connecting refrigerant lines. R454B systems require A2L-compliant tools, leak detection rated for mildly flammable refrigerants, and adherence to local mechanical codes and manufacturer installation instructions. Do not mix refrigerant types or use components not rated for A2L service.

Technical Specifications

• Cooling Capacity: 30,000 BTU/h
• Nominal Tonnage: 2.5 tons
• SEER2: 15
• Compressor Stages: Two Stage
• Refrigerant: R454B

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP15AY30AJ2NA
