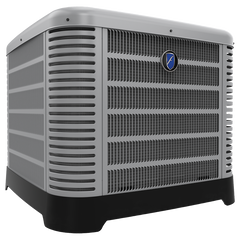

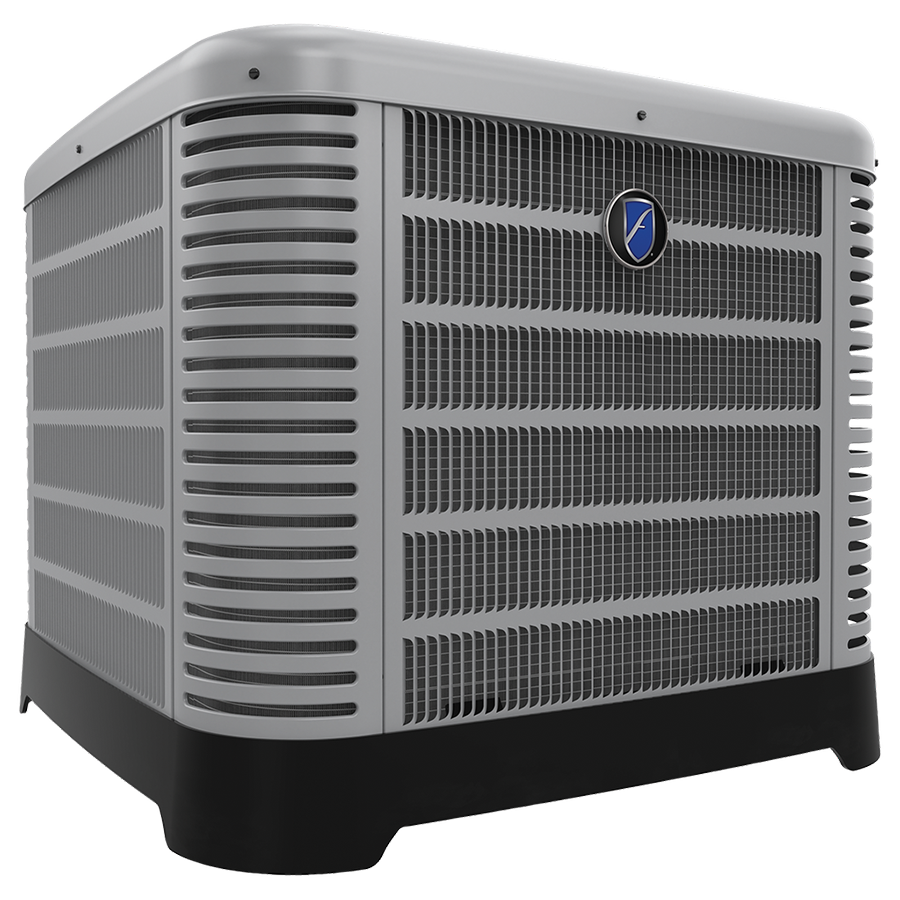

Friedrich FRP15AY24AJ2NA Heat Pump 2 Ton 15 SEER2

Product Description

The FRIEDRICH FRP15AY24AJ2NA is a two-stage residential heat pump rated at 24,000 BTU/h cooling capacity and 15 SEER2 efficiency. It operates on R454B refrigerant, a lower-GWP alternative to R-410A that meets current EPA regulations. The two-stage compressor modulates between low and high capacity, reducing short-cycling and improving dehumidification during part-load conditions. Licensed HVAC technicians install this unit as the outdoor condensing section of a split-system heat pump, pairing it with a compatible indoor air handler or fan coil.

This unit is suited for residential and light-commercial split-system heat pump applications requiring 2-ton nominal cooling capacity. The 15 SEER2 rating reflects performance under the updated M1 test procedure, which replaced the legacy SEER standard. Two-stage operation is particularly effective in climates with extended moderate-temperature periods where a single-stage unit would oversize the load. It is intended for new installations and qualifying replacements where current regional efficiency minimums require a 15 SEER2 or higher outdoor unit.

Key Features

• 24,000 BTU/h nominal cooling capacity at 2-ton classification
• 15 SEER2 efficiency rating compliant with current DOE standards
• Two-stage compressor reduces short-cycling and improves indoor humidity control
• R454B refrigerant charge meets EPA low-GWP requirements under current regulations
• Split-system outdoor condensing unit designed for pairing with a matched indoor coil or air handler

Compatibility

Designed as an OEM split-system outdoor heat pump unit for residential and light-commercial applications requiring a 2-ton, 15 SEER2 two-stage configuration with R454B refrigerant; verify matched indoor coil and refrigerant line set compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power to the system before making any wiring or refrigerant connections. R454B is an A2L mildly flammable refrigerant; follow applicable ASHRAE 15 and local mechanical code requirements for handling, leak detection, and ventilation. Confirm that the indoor coil, line set size, and system controls are rated and matched for use with this outdoor unit before startup.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Nominal Tonnage: 2 tons
• Efficiency Rating: 15 SEER2
• Compressor Stages: Two Stage
• Refrigerant: R454B

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP15AY24AJ2NA
