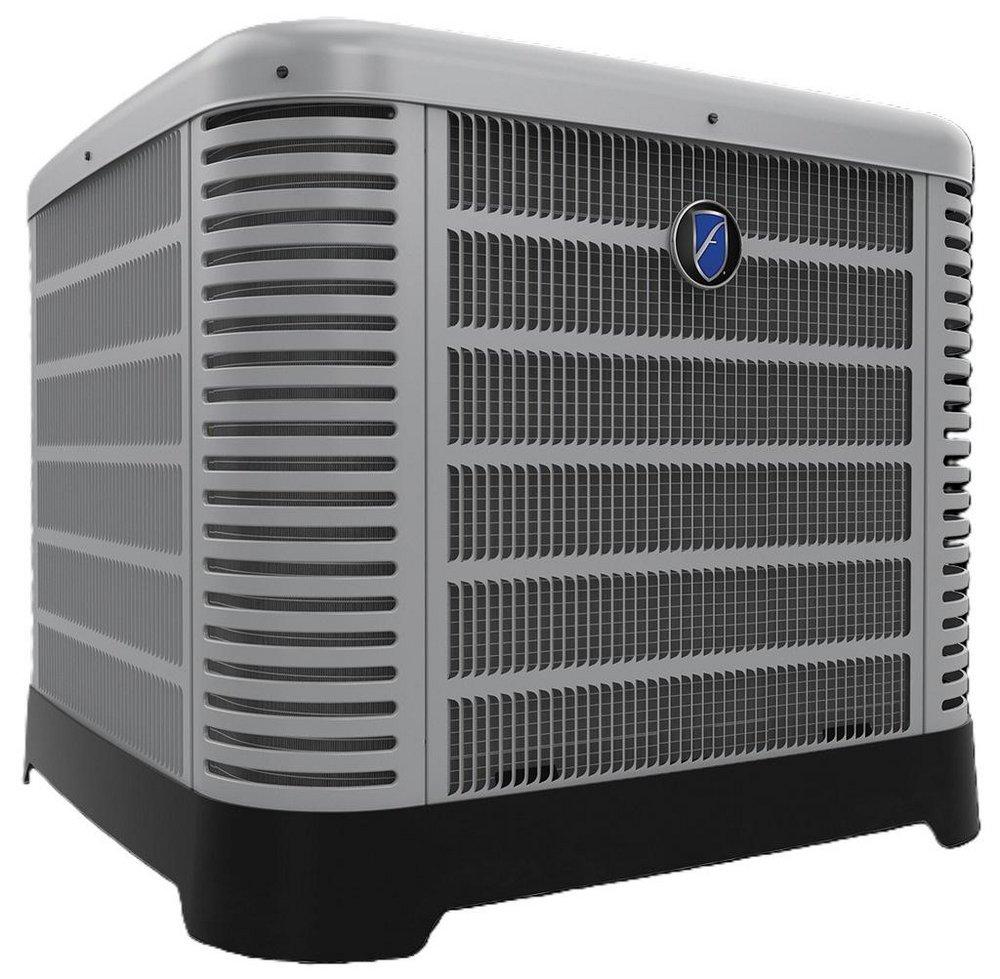

Friedrich FRP14AY36AJ2NA Air Conditioning Endeavor® Line 3 Ton Two-Stage Heat Pump

Product Description

The FRIEDRICH FRP14AY36AJ2NA is an Endeavor® Line 3 Ton two-stage heat pump, utilizing R-454B refrigerant and operating at 208-230V. Designed for residential applications, it delivers 34200 BTU/h cooling and 33600 BTU/h heating. The unit features a scroll compressor and operates at a decibel rating of 72 dB.

• A2L Compatible
• Two-Stage Compressor
• Residential Application

Product Highlights

Efficient 3 Ton heat pump for residential use with two-stage compressor and A2L compatibility.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP14AY36AJ2NA

Technical Specifications

• A2L Compatible: Yes
• AMP: 20
• Application: Residential
• BTU Cooling Rating: 34200 Btu/h
• BTU Heat Rating: 33600 Btu/h
• Collection: Endeavor® Line
• Communicating: Non-Communicating
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Decibel Rating (dB): 72 dB
• Depth: 33.75
• EER2: 9
• EER2 Range: 0 - 10.5
• Factory Std. Refrigerant Charge: 94
• HSPF2: 7.5
• HSPF2 Range: 7.5 - 25.0
• Height: 35
• Horsepower: 1/5 hp
• Liquid Line (OD): 3/8
• Max Fuse Size: 30
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-454B
• Refrigeration Control Type: TXV
• SEER2: 14.3
• SEER2 Range: 13.4 - 13.7
• Suction Line (OD): 3/4
• Tonnage: 3 Ton
• UL Listed: Yes
• Volts: 208/230V
• Watts: 234
• Width: 33.75
