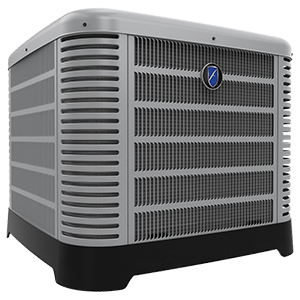

Friedrich FRP14AY30AJ2NA Air Conditioning Endeavor� Line 2.5 Ton

Product Description

The FRIEDRICH FRP14AY30AJ2NA is an Endeavor� Line 2.5 Ton air conditioning unit. This two-stage heat pump uses R-454B refrigerant and operates at 208/230V. It is designed for residential applications and is A2L compatible. The unit features a scroll compressor and a TXV refrigeration control type.

• A2L Compatible
• HVAC equipment products sold to licensed contractors only.
• Requires Certification

Product Highlights

This Friedrich air conditioning unit provides efficient cooling and heating with a two-stage compressor and eco-friendly R-454B refrigerant.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP14AY30AJ2NA

Technical Specifications

• A2L Compatible: Yes
• Application: Residential
• BTU: 30000
• BTU Cooling Rating: 28600 Btu/h
• BTU Heat Rating: 28000 Btu/h
• CFM: 3391
• Collection: Endeavor� Line
• Communicating: Non-Communicating
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Decibel Rating (dB): 72 dB
• Depth: 33-3/4
• EER2: 9
• EER2 Range: 0 - 10.5
• HSPF2: 7.5
• HSPF2 Range: 7.5 - 25.0
• Height: 27
• Horsepower: 1/5 hp
• Liquid Line (OD): 3/8
• MBH: 30
• Max Fuse Size: 30
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-454B
• Refrigeration Control Type: TXV
• SEER2: 14.3
• SEER2 Range: 13.4 - 13.7
• Suction Line (OD): 3/4
• Tonnage: 2.5 Ton
• UL Listed: Yes
• Volts: 208/230V
• Watts: 175
• Width: 33-3/4
• AMP: 20
