Friedrich FRP14AY24AJ2NA Heat Pump 2 Ton 14 SEER2

Product Description

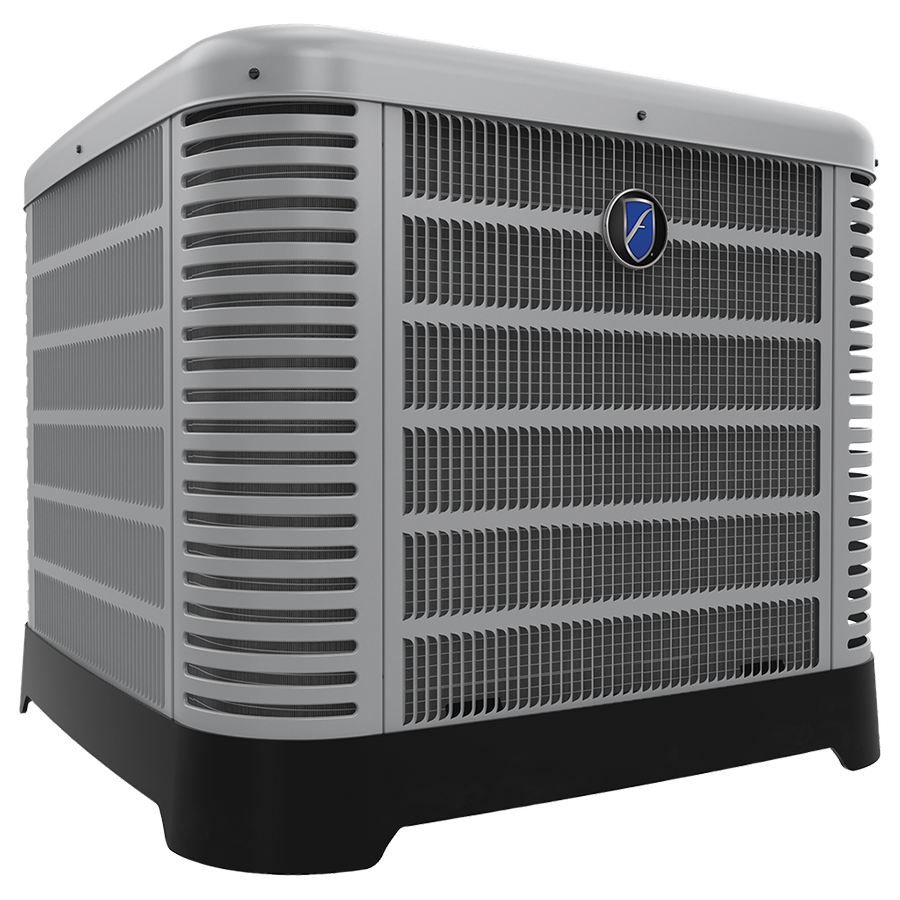

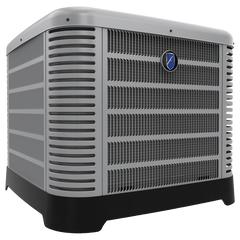

The FRIEDRICH FRP14AY24AJ2NA is a two-stage residential heat pump rated at 24,000 BTU/h cooling capacity and 14 SEER2 efficiency. Operating on R454B refrigerant, this unit delivers both heating and cooling in a single outdoor condensing system. The two-stage compressor allows the unit to run at a lower capacity during mild conditions, reducing runtime cycling and improving dehumidification. Licensed HVAC technicians handle the installation and commissioning of this equipment.

This heat pump is designed for residential split-system applications where a single outdoor unit serves a matched indoor air handler or fan coil. The 2-ton nominal capacity suits typical residential spaces requiring year-round comfort control. Installation follows standard split-system practices with a matched indoor coil and air handler. The R454B refrigerant charge requires technicians certified to handle A2L refrigerants per current EPA and industry guidelines.

Key Features

• 24,000 BTU/h cooling capacity at 2 nominal tons
• 14 SEER2 rated efficiency for modern minimum-efficiency compliance
• Two-stage compressor operation reduces cycling and improves humidity control
• R454B refrigerant — lower global warming potential A2L alternative to R410A
• 25 BTU/h per watt efficiency ratio

Compatibility

Designed as an OEM split-system heat pump condensing unit intended for use with a compatible matched indoor air handler or fan coil rated for R454B refrigerant and two-stage operation.

Installation Notes

Installation must be performed by a licensed HVAC technician with A2L refrigerant handling certification, as R454B is a mildly flammable refrigerant subject to specific handling and recovery requirements. Disconnect and lock out all electrical power before servicing the unit or connecting refrigerant lines. Follow local mechanical codes and manufacturer clearance requirements for outdoor unit placement and line set sizing. Do not use R410A service equipment or recovery cylinders interchangeably with R454B systems.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Nominal Tonnage: 2 tons
• SEER2 Rating: 14
• Efficiency Ratio: 25 BTU/h per watt
• Compressor Staging: Two Stage
• Refrigerant: R454B

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP14AY24AJ2NA
