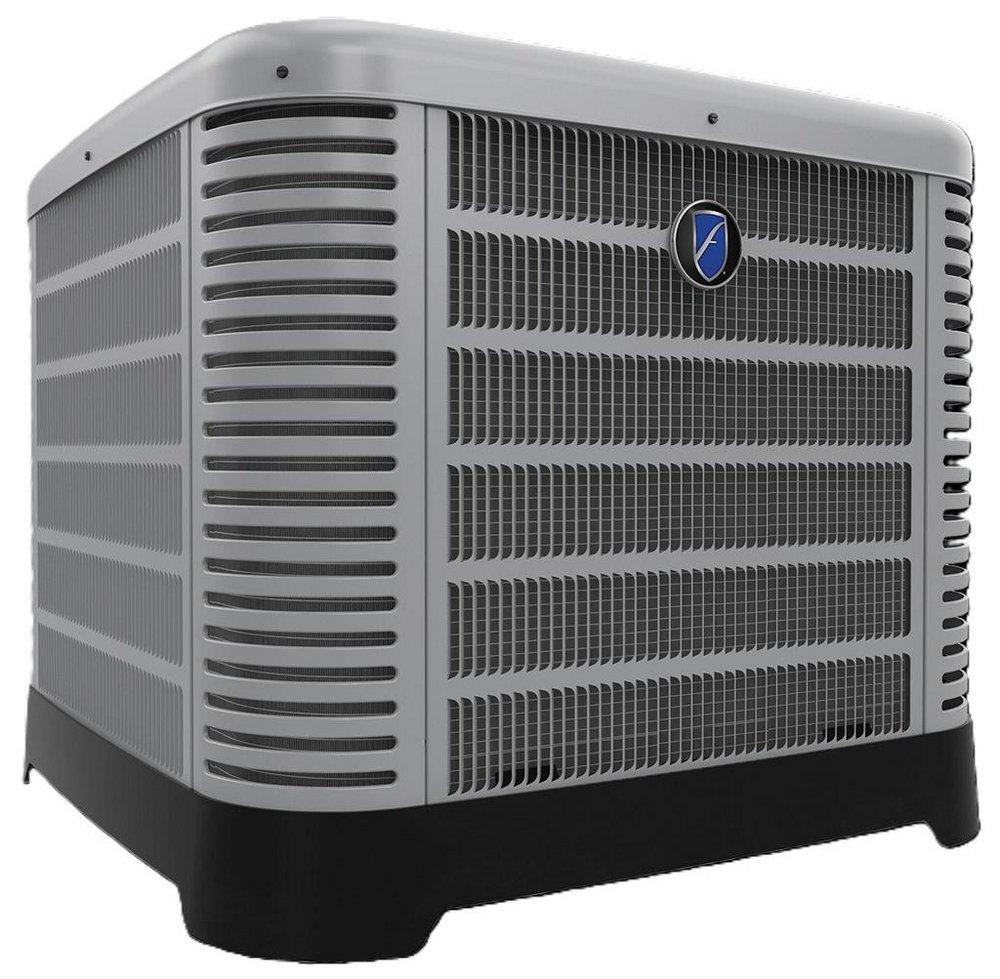

Friedrich FRP14AY18AJ1NA Endeavor® Line F-Series™ Heat Pump 1.5 Ton

Product Description

The FRIEDRICH FRP14AY18AJ1NA is an Endeavor® Line F-Series™ 1 1/2 ton heat pump with a 14.3 SEER2 rating. This single-stage unit operates at 208/230/1/60 and uses R-454B refrigerant. It features a 7mm condenser coil and provides cooling and heating capacities from 17.1 to 54 kBTU, with sound levels as low as 72 dB. The unit also has PlusOne® service access.

• Features quieter operation and improved unit acoustics with Swept Wing Fan Technology
• Two-Stage Scroll Compressor provides more precise temperature control and lower humidity
• PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access

Product Highlights

This FRIEDRICH heat pump offers efficient and reliable heating and cooling with advanced features for easy maintenance and homeowner peace of mind.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRP14AY18AJ1NA

Technical Specifications

• Type: Heat Pump
• Nominal Capacity: 18000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 83
• Compressor Type: Scroll
• Sound Level: 73 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 20 A
• Minimum Circuit Ampacity: 13 A
• Compressor - Rated Load Amps: 10 A
• Compressor - Locked Rotor Amps: 52 A
• Condenser Fan Motor - Full Load Amps: 0.75 A
• Condenser Fan Motor - Locked Rotor Amps: 1.40 A
• Net Face Area - Outer Coil: 10.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 22
• Outdoor Fan Diameter: 20 in
• Number of Blades: 3
• Motor HP: 1/7 hp
• CFM: 2401 ft³/min
• RPM: 1075
• Watts: 146 W
• Total Capacity: 17100 Btu/h
• Net Sensible Capacity: 13100 Btu/h
• Net Latent Capacity: 4000 Btu/h
• SEER2: 14.3
• EER2: 9.0
• HSPF2: 7.5
• Indoor CFM: 625 ft³/min
• Heating Capacity - 47°F: 16600 Btu/h
• Heating Capacity - 17°F: 10100 Btu/h
• COP - 47°F: 3.30
• COP - 17°F: 2.4
• Depth: 29.75 in
• Width: 29.75 in
• Height: 25.00 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Application: Residential
• BTU Cooling Rating: 17100 Btu/h
• BTU Heat Rating: 16600 Btu/h
• Collection: Endeavor® Line
• Communicating: Non-Communicating
• Compressor Stages: Single Stage
• Decibel Rating (dB): 73 dB
• EER2 Range: 0 - 10.5
• Factory Std. Refrigerant Charge: 83
• HSPF2 Range: 7.5 - 25.0
• Horsepower: 1/7 hp
• MBH: 18
• Max Fuse Size: 20
• Phase: Single Phase
• Power Source: Electric
• Refrigeration Control Type: TXV
• SEER2 Range: 13.4 - 13.7
• Tonnage: 1.5 Ton
• UL Listed: Yes
