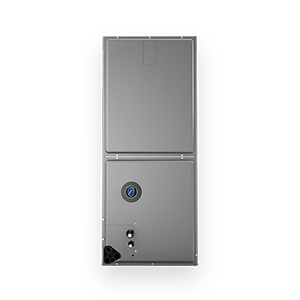

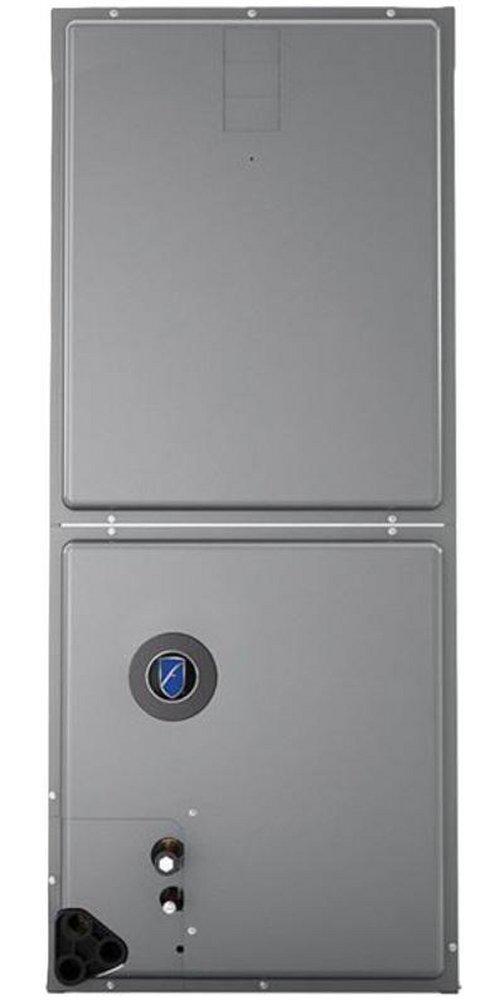

Friedrich FRH2VY6024STACNJ endeavor® line air handler 60000 Btu/h

Product Description

The FRIEDRICH FRH2VY6024STACNJ is an Endeavor® line air handler. When paired with EcoNet® Smart Thermostat, the constant CFM motor gradually auto-adjusts from low capacity to 100% to meet comfort requirements. Features include quieter operation due to two-stage operation and sturdy cabinet construction with 1.0 inch of foil faced insulation. Built-in EcoNet® & Bluetooth® technology makes monitoring and troubleshooting easier.

• Constant CFM motor auto-adjusts to meet comfort requirements when paired with EcoNet® Smart Thermostat
• Quieter operation due to two-stage operation and sturdy cabinet construction
• Built-in EcoNet® & Bluetooth® technology for easy monitoring and troubleshooting

Product Highlights

This FRIEDRICH air handler features a constant CFM motor, quieter operation, and built-in EcoNet® & Bluetooth® technology for easy monitoring and troubleshooting.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRH2VY6024STACNJ

Technical Specifications

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant CFM
• Refrigerant: R-454B
• Nominal Capacity: 60000 Btu/h
• Efficiency: Standard
• Metering: TXV
• Controls: Communicating
• Coil Series: N Coil
• Blower Motor: 3/4 hp
• Blower Motor - RPM: 300 to 1300
• Motor Amps: 5.2 A
• Minimum Circuit Ampacity: 7 A
• Maximum Overcurrent Protection: 15 A
• Depth: 21.6875 in
• Width: 24.5 in
• Height: 55.5 in
• Refrigerant Connections Sweat ID - Liquid: 3/8 in
• Refrigerant Connections Sweat ID - Vapor: 7/8 in
• A2L Compatible: Yes
• Tonnage: 5 Ton
• Configuration: Multi-Position
• Nom Tons: 5
• Orientation: Multi-position
• Stage: Two Stage
