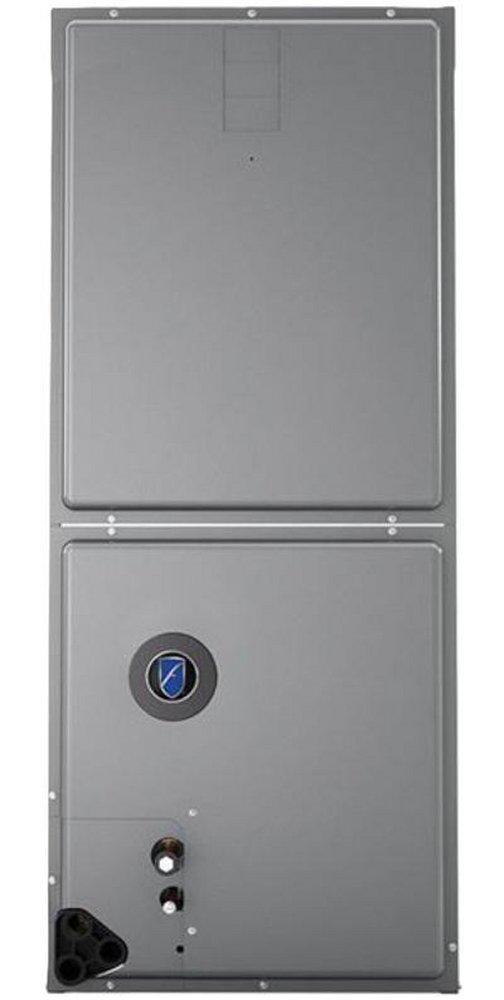

Friedrich FRH2VY3617STACNJ Endeavor® Line Air Handler 36000 Btu/h

Product Description

The FRIEDRICH FRH2VY3617STACNJ Endeavor® Line Air Handler features a constant CFM motor that auto-adjusts when paired with an EcoNet® Smart Thermostat. It also offers quieter operation with two-stage operation and variable speed airflow technology. Built-in EcoNet® & Bluetooth® technology allows for easy monitoring and troubleshooting. Designed for upflow, downflow, horizontal left and right applications.

• Constant CFM motor for optimal humidity control and energy savings
• Two-stage operation and variable speed airflow for quieter performance
• EcoNet® & Bluetooth® technology for easy monitoring and troubleshooting

Product Highlights

The FRH2VY3617STACNJ air handler provides efficient and versatile climate control with smart technology integration and quiet operation.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRH2VY3617STACNJ

Technical Specifications

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant CFM
• Refrigerant: R-454B
• Nominal Capacity: 36000 Btu/h
• Efficiency: Standard
• Metering: TXV
• Controls: Communicating
• Coil Series: N Coil
• Blower Motor: 1/2 hp
• Blower Motor - RPM: 300 to 1300
• Motor Amps: 4.6 A
• Minimum Circuit Ampacity: 6 A
• Maximum Overcurrent Protection: 15 A
• Depth: 21 11/16 in
• Width: 17.5 in
• Height: 42 1/2 in
• Suply Duct: 16 in
• Refrigerant Connections Sweat ID - Liquid: 3/8 in
• Refrigerant Connections Sweat ID - Vapor: 3/4 in
• A2L Compatible: Yes
• BTU Cooling Rating: 36000 Btu/h
• Configuration: Multi-Position
• Tonnage: 3 Ton
