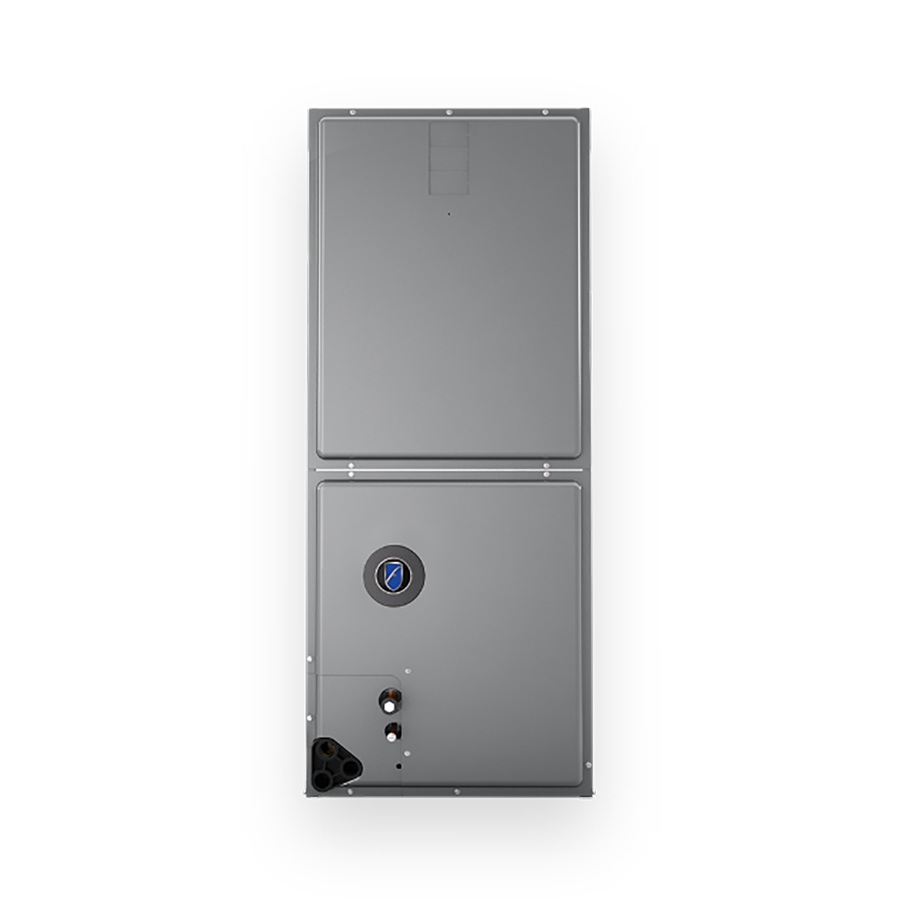

Friedrich FRH2VY2417STACNJ Air Handler 2 Ton R454B

Product Description

The FRIEDRICH FRH2VY2417STACNJ is a multi-position air handler rated at 2 nominal tons (24,000 BTU/h) and designed for use with R454B refrigerant. It operates on a two-stage configuration paired with a variable-speed blower motor, allowing the system to run at a lower stage during mild conditions and ramp to full capacity when demand increases. This combination reduces short-cycling, improves humidity control, and lowers operating noise compared to single-stage units. Licensed HVAC technicians install this unit as the indoor section of a split system or heat pump setup.

This air handler is suited for residential and light commercial split-system installations where multi-position flexibility is required. The multi-position design allows installation in upflow, downflow, or horizontal orientations, making it adaptable to attic, closet, basement, and crawl space applications. The two-stage, variable-speed operation is well matched to systems where comfort consistency and energy efficiency are priorities. R454B refrigerant compatibility positions this unit for current low-global-warming-potential refrigerant requirements.

Key Features

• 2 nominal ton (24,000 BTU/h) capacity for residential and light commercial applications
• Compatible with R454B low-GWP refrigerant
• Two-stage operation reduces short-cycling and improves dehumidification
• Variable-speed blower motor supports quiet, efficient airflow modulation
• Multi-position design installs in upflow, downflow, or horizontal orientation

Compatibility

Designed as an OEM-style indoor air handler for residential and light commercial split-system or heat pump applications using R454B refrigerant at 2 nominal tons.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before beginning any installation or service work. Follow local mechanical codes and manufacturer wiring diagrams when connecting low-voltage control wiring and line-voltage power. Verify that the matched outdoor unit and refrigerant line set are rated for R454B before completing the system installation.

Technical Specifications

• Nominal Capacity: 24,000 BTU/h (2 tons)
• Refrigerant: R454B
• Staging: Two Stage
• Blower Motor: Variable Speed
• Orientation: Multi-Position

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRH2VY2417STACNJ
