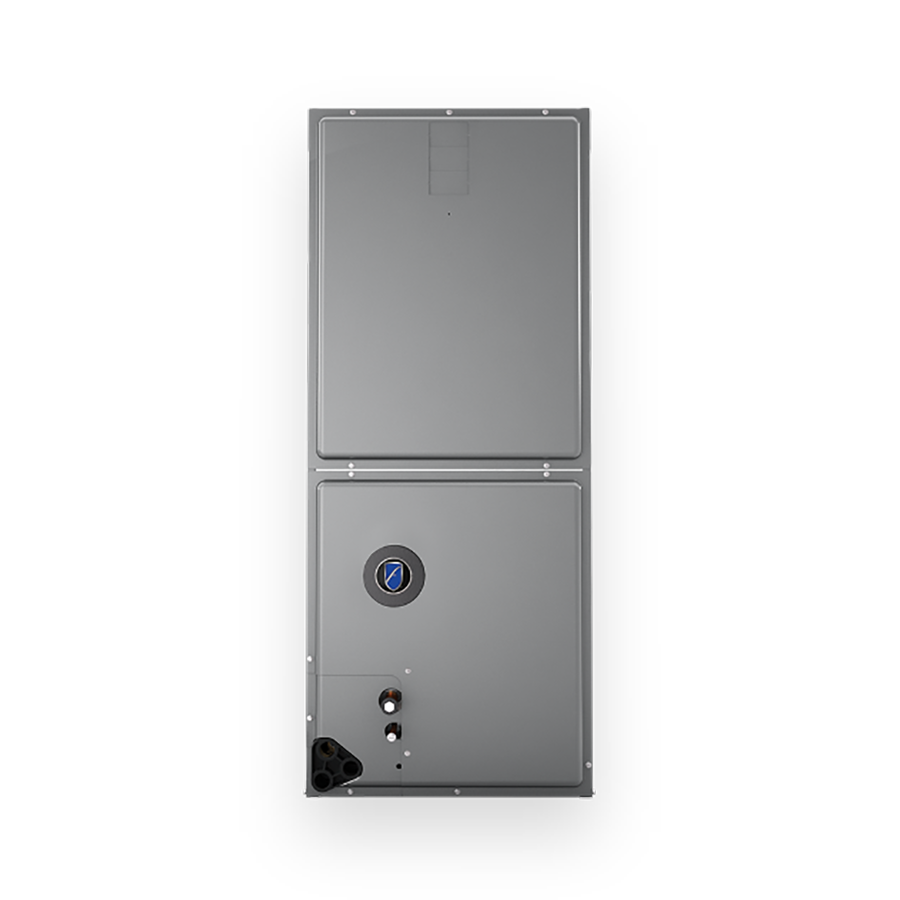

Friedrich FRH2TY6024STANNJ Air Handler 5 Ton R454B

Product Description

The FRIEDRICH FRH2TY6024STANNJ is a multi-position air handler rated at 5 nominal tons and 60,000 BTU/h, designed for use with R454B refrigerant. It operates in two stages, allowing the system to run at a lower capacity during mild conditions and ramp up when the load demands it. This unit is built for central forced-air systems and is intended for installation by licensed HVAC technicians. The multi-position design allows for upflow, downflow, or horizontal orientation, giving installers flexibility across a range of residential and light-commercial job sites.

This air handler is suited for new construction and replacement applications where R454B refrigerant systems are specified. Two-stage operation pairs well with variable or two-stage outdoor condensing units, improving comfort and efficiency compared to single-stage systems. The multi-position configuration makes it a practical choice for tight or non-standard mechanical room layouts where orientation flexibility is required.

Key Features

• 5 nominal ton capacity at 60,000 BTU/h for medium-to-large residential or light-commercial loads
• R454B refrigerant compatible, aligned with current low-GWP refrigerant transition requirements
• Two-stage operation reduces short-cycling and improves humidity control at part-load conditions
• Multi-position installation supports upflow, downflow, and horizontal configurations

Compatibility

Designed for use in central forced-air HVAC systems utilizing R454B refrigerant with a compatible two-stage outdoor condensing unit. No specific model compatibility data was provided in the product input.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer instructions. Disconnect all power to the system before beginning any installation or service work. Confirm refrigerant line sizing and coil orientation match the selected installation position before securing the unit. Verify that the matched outdoor unit is rated for R454B and two-stage operation before commissioning the system.

Technical Specifications

• Nominal Capacity: 5 tons
• Capacity: 60,000 BTU/h
• Refrigerant: R454B
• Staging: Two Stage
• Orientation: Multi-position

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRH2TY6024STANNJ
