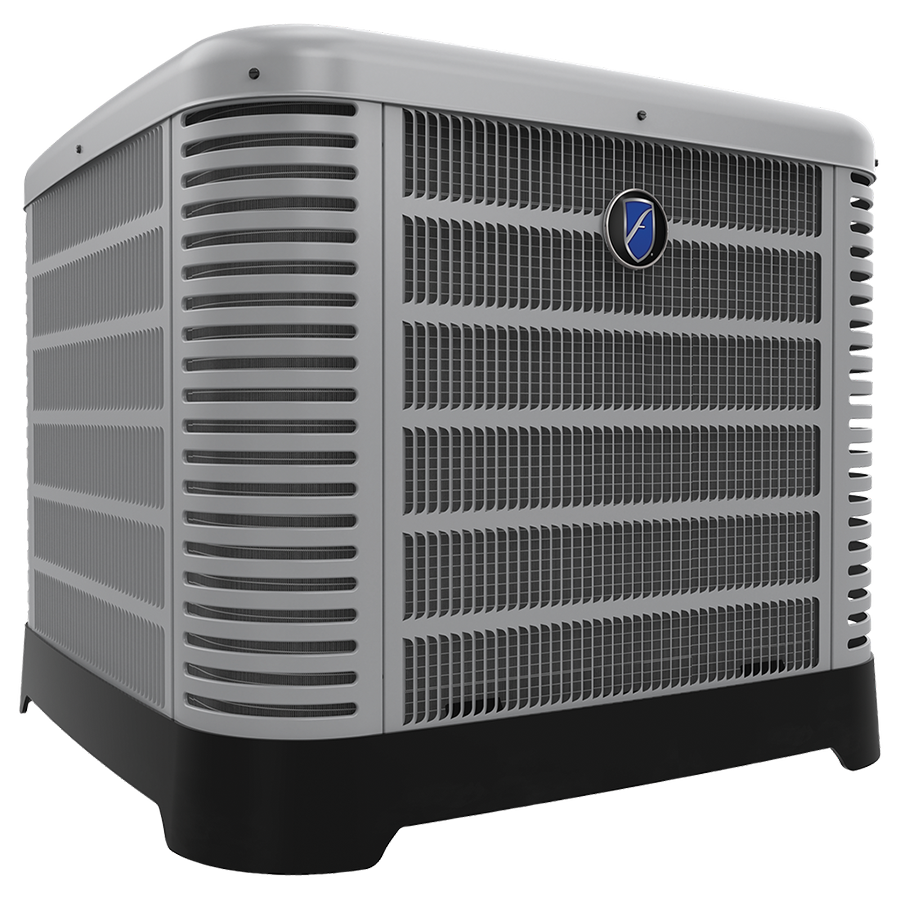

Friedrich FRA15AY30AJ1NALHP Condensing Unit 2.5 Ton 15 SEER2

Product Description

The FRIEDRICH FRA15AY30AJ1NALHP is a 2.5-ton residential split-system condensing unit rated at 15 SEER2 and charged with R454B refrigerant. Operating as a single-stage cooling system, this outdoor unit delivers 30,000 BTU/h of cooling capacity. It is designed to pair with a compatible indoor air handler or coil as part of a central split cooling system. Licensed HVAC technicians install and commission this unit in accordance with local mechanical codes and EPA Section 608 refrigerant-handling requirements. The R454B refrigerant charge is a lower-GWP A2L refrigerant, which requires technicians to follow current handling and safety guidelines specific to mildly flammable refrigerants.

The FRA15AY30AJ1NALHP is suited for residential split-system cooling applications where a 2.5-ton, single-stage outdoor condensing unit is required. It is intended for installation with a matched indoor evaporator coil or air handler. Single-stage operation provides straightforward on-off cooling suited to standard residential load profiles. This unit is sized for typical residential structures requiring approximately 30,000 BTU/h of cooling capacity.

Key Features

• 30,000 BTU/h cooling capacity for 2.5-ton residential applications
• 15 SEER2 efficiency rating meets current minimum efficiency standards
• R454B refrigerant — lower-GWP A2L replacement refrigerant
• Single-stage operation for straightforward system control and compatibility

Compatibility

Designed as an OEM-style replacement or new-installation outdoor condensing unit for residential split cooling systems requiring a 2.5-ton, R454B-charged, single-stage unit. Confirm indoor coil or air handler compatibility with FRIEDRICH specifications before installation.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out all electrical power before servicing. R454B is an A2L mildly flammable refrigerant — follow current ASHRAE 15 and local code requirements for handling, leak detection, and work-area ventilation. Set the unit on a level, code-compliant pad and verify refrigerant line sizing and total system charge against manufacturer specifications prior to startup.

Technical Specifications

• Cooling Capacity: 30,000 BTU/h
• Nominal Tonnage: 2.5 tons
• SEER2 Rating: 15
• Refrigerant Type: R454B
• Staging: Single Stage

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRA15AY30AJ1NALHP
