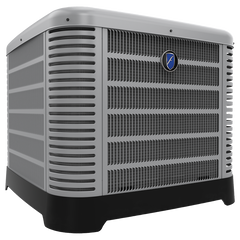

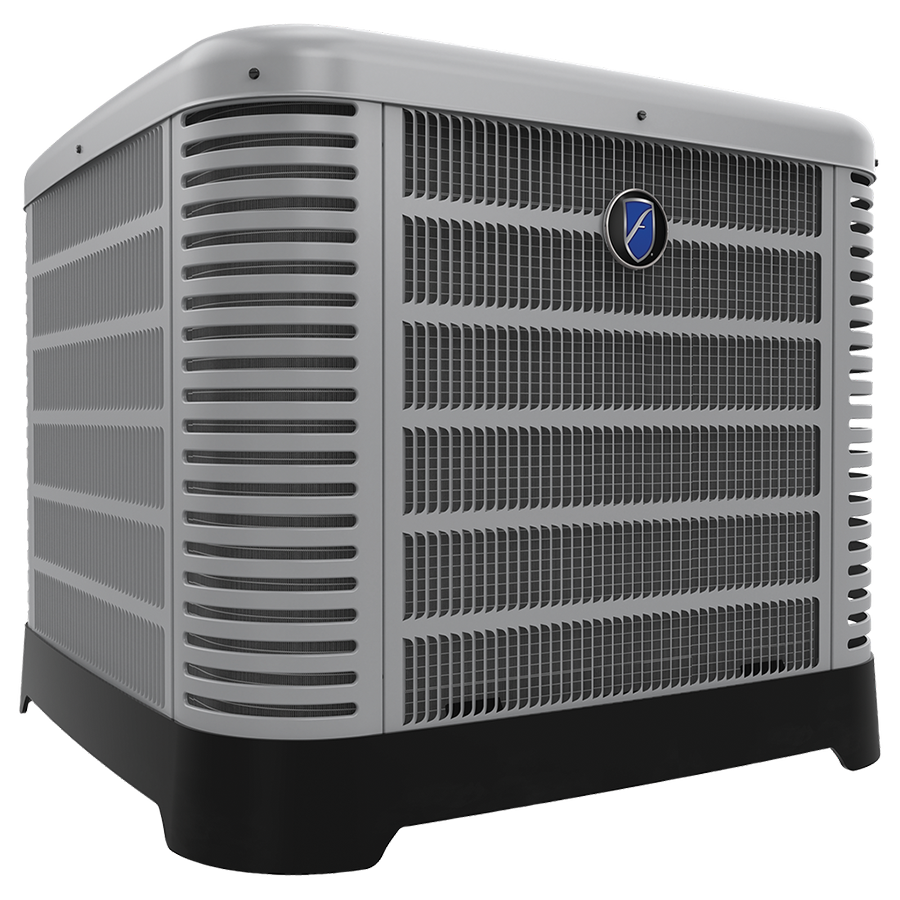

Friedrich FRA14AY24AJ1NALHP Condensing Unit 2 Ton 14 SEER2

Product Description

The FRIEDRICH FRA14AY24AJ1NALHP is a 2-ton residential condensing unit rated at 24,000 BTU/h with a 14 SEER2 efficiency rating. It operates on R454B refrigerant, a lower-GWP alternative to R-410A that complies with current EPA refrigerant transition requirements. The unit runs a single-stage compressor configuration, delivering reliable, straightforward cooling capacity without variable-speed staging. Licensed HVAC technicians install this unit as the outdoor section of a split-system air conditioning setup, pairing it with a compatible indoor air handler or coil to complete the refrigerant circuit.

This condensing unit is suited for residential cooling applications where a 2-ton system capacity matches the structure's load calculation. Single-stage operation makes it a practical choice for straightforward replacement and new-installation projects. The R454B refrigerant charge aligns with current and near-future regulatory requirements, reducing the need for near-term refrigerant changeover. It is installed outdoors and connects to an indoor evaporator coil via refrigerant line sets sized to the manufacturer's specifications.

Key Features

• 24,000 BTU/h cooling capacity at 2 nominal tons
• 14 SEER2 efficiency rating meeting current federal minimum standards
• R454B refrigerant charge for regulatory compliance and lower global warming potential
• Single-stage compressor operation for simplified installation and service

Compatibility

Designed as an OEM-style outdoor condensing unit for use in residential split-system air conditioning applications. Pair with a compatible indoor evaporator coil or air handler rated for R454B and matched to 2-ton capacity.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician due to the pressurized refrigerant system and R454B handling requirements. Disconnect and lock out all electrical power to the system before beginning any service or installation work. Follow local mechanical codes and the manufacturer's installation instructions for line set sizing, refrigerant charge verification, and electrical disconnect requirements. Do not attempt to charge or recover R454B with equipment rated only for R-410A — use refrigerant-specific recovery and charging tools rated for A2L refrigerants.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Nominal Tonnage: 2 tons
• SEER2 Rating: 14
• Refrigerant: R454B
• Compressor Stages: Single Stage

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRA14AY24AJ1NALHP
