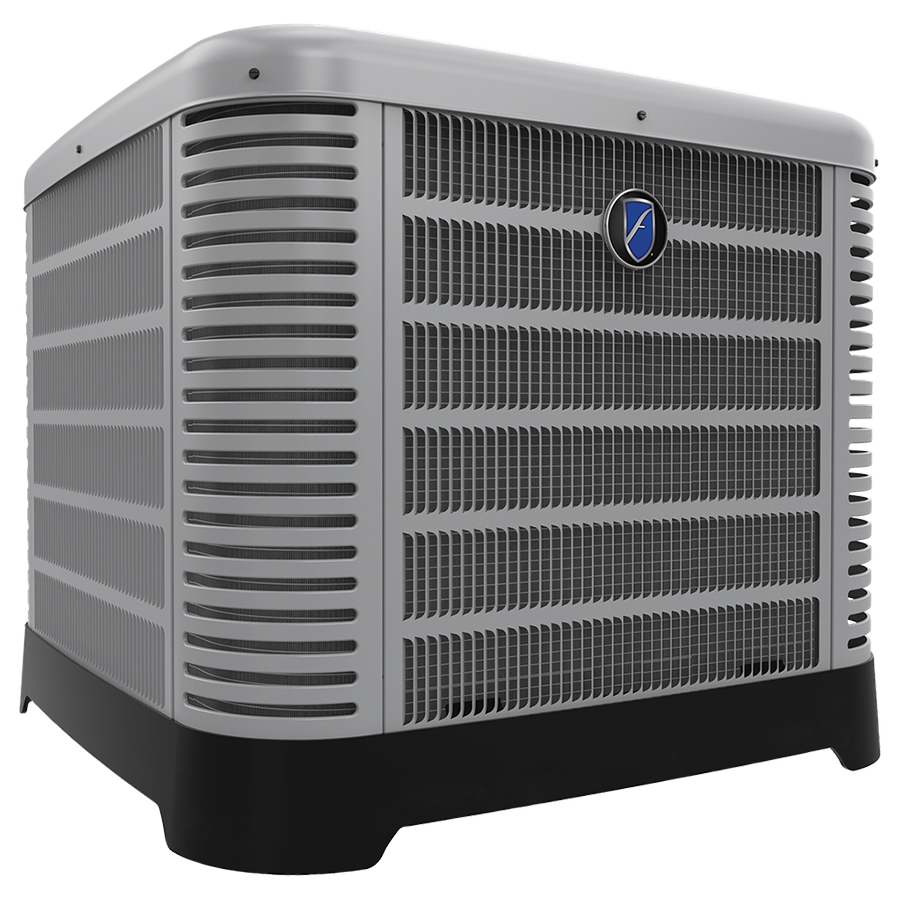

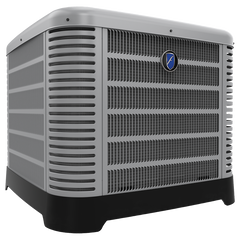

Friedrich FRA13NY24AJ1NALHP Condensing Unit 2 Ton 13 SEER2

Product Description

The FRIEDRICH FRA13NY24AJ1NALHP is a 2-ton residential air conditioning condensing unit rated at 13 SEER2, designed for use with R454B refrigerant. Operating as a single-stage system, this unit delivers 24,000 BTU/h of cooling capacity. It serves as the outdoor component in a split-system air conditioning setup, working in tandem with a matched indoor coil and air handler. Licensed HVAC technicians install this unit as part of new installations or system replacements in residential applications where current efficiency and refrigerant standards must be met.

This condensing unit is suited for residential split-system cooling applications requiring a 2-ton capacity. Single-stage operation makes it a straightforward replacement or new-install choice in standard residential settings where variable-speed or two-stage equipment is not required. The R454B refrigerant charge aligns with current low-GWP refrigerant regulations, positioning this unit for compliance with updated environmental standards in applicable regions.

Key Features

• 24,000 BTU/h cooling capacity for 2-ton system sizing
• 13 SEER2 efficiency rating meeting current minimum standards
• R454B refrigerant — lower GWP alternative to legacy refrigerants
• Single-stage operation for simplified controls and installation

Compatibility

Designed as an OEM-style replacement or new-install condensing unit for residential split-system air conditioning applications requiring a 2-ton, single-stage, R454B-compatible outdoor unit.

Installation Notes

This unit must be installed by a licensed HVAC technician holding EPA Section 608 certification for handling regulated refrigerants. Disconnect and lock out all electrical power before servicing. The system should be matched to a compatible indoor coil rated for R454B refrigerant — do not use with legacy coils or line sets without verifying compatibility with the manufacturer. Follow local mechanical codes and the manufacturer installation instructions for proper pad placement, line set sizing, and electrical disconnect requirements.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Nominal Tonnage: 2 Ton
• Efficiency Rating: 13 SEER2
• Refrigerant: R454B
• Stage: Single Stage

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FRA13NY24AJ1NALHP
