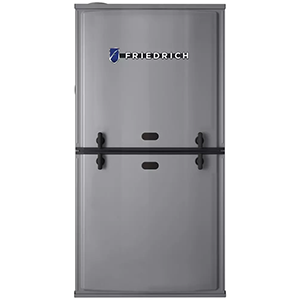

Friedrich FR98MV1155A24UPSGAP Air Conditioning Endeavor�� 98% AFUE - 112k Upflow Gas Furnace 24-1/2 inches

Product Description

The FRIEDRICH FR98MV1155A24UPSGAP is an Air Conditioning Endeavor�� 98% AFUE - 112k Upflow Gas Furnace. This furnace is designed for HVAC systems and is A2L compatible, contingent on specific conditions. It operates with a variable (modulating) gas valve and direct spark ignition system, ensuring efficient and reliable performance.

• 98% AFUE rating for high energy efficiency.
• Variable (Modulating) gas valve stages for precise temperature control.
• Upflow configuration with a 24-1/2" width.

Product Highlights

This Friedrich gas furnace is ideal for residential heating, providing 112000 BTU with a 98% AFUE rating. It features a direct drive blower and aluminized steel heat exchanger.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR98MV1155A24UPSGAP

Technical Specifications

• A2L Compatible: Contingent
• AFUE: 98
• AMP: 12
• ANSI: Z223.1
• BTU: 112000
• BTU Heat Rating: 110000 Btu/h
• Blower Type: Direct Drive
• CEC Compliant: For Sale in CA
• CFM: 1629
• Collection: Endeavor��
• Communicating: Communicating
• Condensing: No
• Configuration: Upflow
• Depth: 29-5/8
• Fan Speeds: 5
• Fuel Type: Propane
• Gas Valve Stages: Variable (Modulating)
• Heat Exchanger Type: Aluminized Steel
• Height: 34
• Horsepower: 3/4 hp
• Ignition System: Direct Spark Ignition
• Input (MBH): 112
• Length: 29-5/8
• MBH: 110
• Max Fuse Size: 20
• Phase: Single Phase
• Power Source: Gas
• UL Listed: Yes
• Vent Type: B-Vent/L-Vent
• Volts: 115V
• Watts: 559
• Width: 24-1/2
