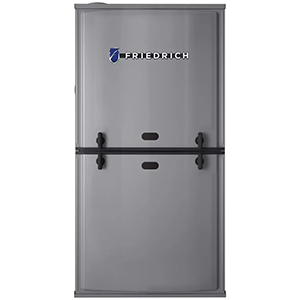

Friedrich FR98MV0703A17UPSGAP Endeavor 98% AFUE 70k BTU Upflow Gas Furnace 17-1/2 inches

Product Description

The FRIEDRICH FR98MV0703A17UPSGAP Endeavor�� is a 98% AFUE upflow gas furnace with a 70k BTU rating and a width of 17-1/2". This furnace is designed for HVAC applications and is compatible with both R-410A and R-454B refrigerants. It features a variable (modulating) gas valve and an aluminized steel heat exchanger.

• 98% AFUE rating for efficient heating.
• Variable (Modulating) gas valve stages.
• Aluminized Steel heat exchanger type.

Product Highlights

The FRIEDRICH FR98MV0703A17UPSGAP is a high-efficiency gas furnace suitable for residential or commercial HVAC systems, offering reliable performance and energy savings.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR98MV0703A17UPSGAP

Technical Specifications

• A2L Compatible: Contingent
• AFUE: 98
• AMP: 10
• ANSI: Z223.1
• BTU: 70000
• BTU Heat Rating: 69000 Btu/h
• Blower Type: Direct Drive
• CEC Compliant: For Sale in CA
• CFM: 1109
• Collection: Endeavor��
• Communicating: Communicating
• Condensing: No
• Configuration: Upflow
• Depth: 29-5/8
• Fan Speeds: 5
• Fuel Type: Propane
• Gas Valve Stages: Variable (Modulating)
• Heat Exchanger Type: Aluminized Steel
• Height: 34
• Horsepower: 1/2 hp
• Ignition System: Direct Spark Ignition
• Input (MBH): 70
• Length: 29-5/8
• MBH: 69
• Max Fuse Size: 15
• Phase: Single Phase
• Power Source: Gas
• Refrigerant: R-410A;R-454B
• UL Listed: Yes
• Vent Type: B-Vent/L-Vent
• Volts: 115V
• Watts: 373
• Width: 17-1/2
