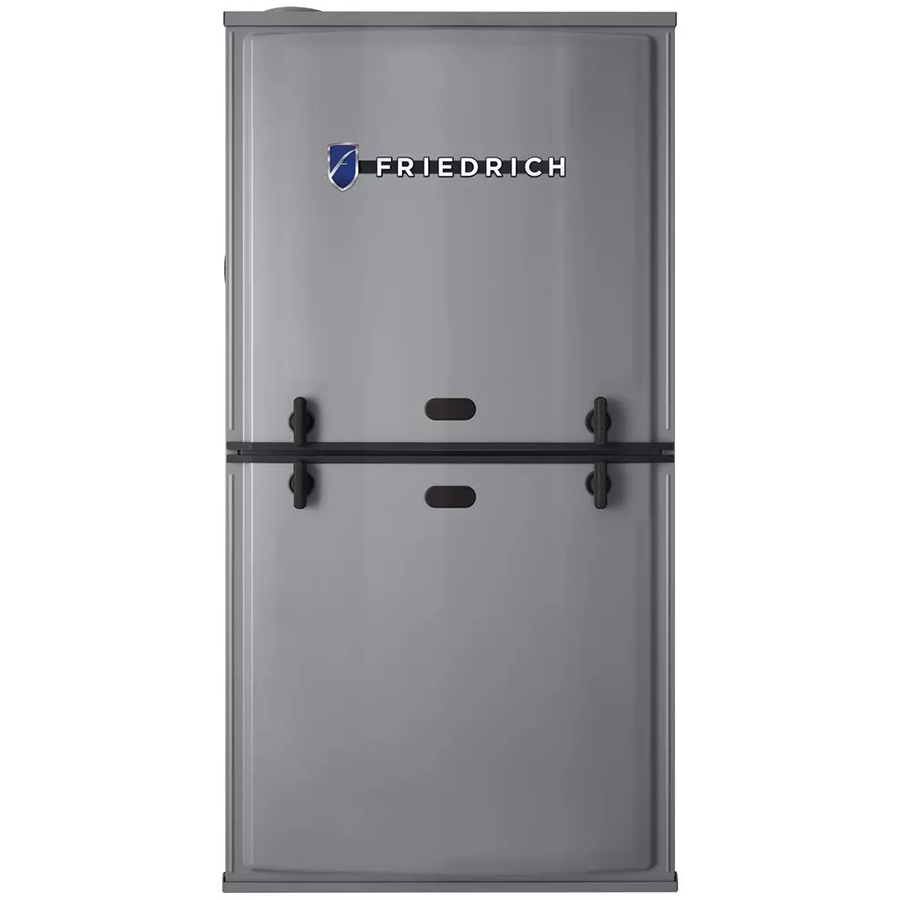

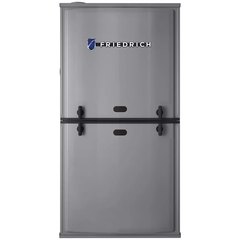

Friedrich FR962V0703A17M4SCAP Gas Furnace 96% 70K Btu 2-stage

Product Description

The FRIEDRICH FR962V0703A17M4SCAP is a natural gas furnace rated at 96 percent AFUE efficiency and 70000 BTU/h output. It runs a two-stage burner paired with an ECM variable speed blower motor, allowing the unit to modulate heating output and airflow based on demand rather than cycling at full capacity on every call. The result is more consistent space temperatures and lower operating costs over the heating season. At 17.5 inches wide, the cabinet fits standard residential alcove and closet installations. Licensed HVAC technicians install and commission this unit.

This furnace is designed for residential and light-commercial forced-air heating applications. The multi-position, four-way configuration means the cabinet can be installed in upflow, downflow, horizontal left, or horizontal right orientations, making it adaptable to attic, basement, closet, and crawlspace installations. The nominal three-ton airflow rating aligns it with three-ton split or packaged cooling systems for year-round comfort systems. Two-stage operation is well suited to variable-load applications where single-stage cycling creates comfort complaints or humidity control issues.

Key Features

• 96 percent AFUE efficiency reduces fuel consumption compared to standard 80 percent units
• Two-stage burner operation provides a low-fire stage for mild weather and full-fire stage for design-day conditions
• ECM variable speed blower motor adjusts airflow continuously for even heat distribution and quiet operation
• Multi-position four-way cabinet installs in upflow, downflow, or either horizontal orientation
• 70000 BTU/h output sized for medium residential loads or small commercial spaces
• 17.5-inch cabinet width fits standard furnace alcoves and closet rough openings

Compatibility

Designed as an OEM-style replacement or new-installation furnace for three-ton residential forced-air heating systems using natural gas fuel. Confirm electrical supply, venting category, and thermostat compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and the manufacturer installation instructions supplied with the unit. Shut off gas supply and disconnect electrical power at the breaker before any service work. High-efficiency condensing furnaces require a Category IV vent system with approved PVC or CPVC flue pipe and a condensate drain; never connect this unit to a B-vent or single-wall metal flue. Verify thermostat wiring supports two-stage heating and variable speed blower control before startup.

Technical Specifications

• Fuel Type: Natural Gas
• AFUE Efficiency: 96 percent
• Heating Capacity: 70000 BTU/h
• Stages: Two Stage
• Motor Type: ECM Variable Speed
• Nominal Cooling Tonnage: 3 Ton
• Cabinet Width: 17.5 inches
• Configuration: Multi-Position 4-Way

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR962V0703A17M4SCAP
