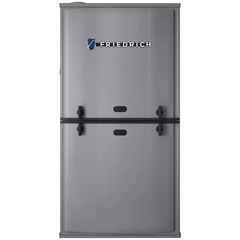

Friedrich FR951V1155A24M4SCAP Gas Furnace 95% Afue 115K Btu

Product Description

The FRIEDRICH FR951V1155A24M4SCAP is a natural gas furnace rated at 115,000 BTU/h with 95% AFUE efficiency, designed for residential and light-commercial forced-air heating systems. It uses an ECM variable-speed blower motor to modulate airflow, which reduces energy consumption and improves comfort compared to single-speed PSC motors. Single-stage gas valve operation keeps the control system straightforward. At 24.5 inches wide, this unit is sized for standard residential installations. Licensed HVAC technicians are the intended installers for this equipment.

This furnace is configured for multi-position installation, meaning it can be oriented upflow, downflow, or horizontal depending on the application and available mechanical space. It is matched to 5-ton nominal cooling capacity, making it suitable for larger residential homes or small commercial spaces where a matched split system or package unit will be installed alongside it. Single-stage firing simplifies zoning and control wiring while the ECM motor provides variable airflow across all operating modes.

Key Features

• 95% AFUE efficiency reduces fuel consumption compared to standard 80% AFUE units
• ECM variable-speed blower motor delivers quieter operation and improved humidity management
• 115,000 BTU/h heating capacity suited for larger conditioned spaces
• Multi-position cabinet allows upflow, downflow, or horizontal installation
• Single-stage gas valve simplifies controls and thermostat compatibility
• 5-ton nominal airflow rating matches larger residential or light-commercial cooling systems

Compatibility

Designed as an OEM-style natural gas furnace for multi-position forced-air heating applications with a 5-ton nominal cooling match. No specific model or system compatibility data was provided in the product input.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and manufacturer instructions. Shut off the gas supply and disconnect electrical power before making any connections or servicing the unit. Verify that venting, gas line sizing, and electrical supply meet local code requirements before startup. ECM motor wiring should be handled carefully to avoid damage to the motor control module.

Technical Specifications

• Fuel Type: Natural Gas
• Heating Capacity: 115,000 BTU/h
• AFUE Efficiency: 95%
• Stage: Single Stage
• Motor Type: ECM Variable Speed
• Nominal Cooling Match: 5 Tons
• Cabinet Width: 24.5 inches
• Configuration: Multi 4-Way (Upflow, Downflow, Horizontal)

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951V1155A24M4SCAP
