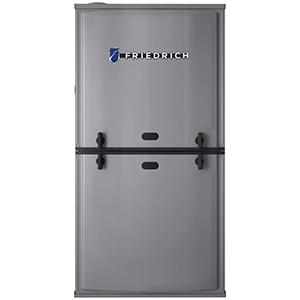

Friedrich FR951V0703A17M4SCAP Air Conditioning Endeavor�� 70k BTU Multi-Position Gas Furnace 17-1/2 inches

Product Description

The FRIEDRICH FR951V0703A17M4SCAP Air Conditioning Endeavor�� is a 70k BTU, multi-position gas furnace. This furnace is designed for HVAC systems and is A2L compatible. It features a direct drive blower type and a single-stage gas valve. It is for sale in CA and is UL listed.

• 95 AFUE rating for efficient heating.
• Multi-position configuration for flexible installation.
• Direct spark ignition system for reliable start-up.

Product Highlights

The FRIEDRICH FR951V0703A17M4SCAP is a 70000 BTU gas furnace with a 95 AFUE rating, multi-position configuration and direct spark ignition.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951V0703A17M4SCAP

Technical Specifications

• A2L Compatible: Contingent
• AFUE: 95
• AMP: 10
• ANSI: Z223.1
• BTU: 70000
• Blower Type: Direct Drive
• CEC Compliant: For Sale in CA
• CFM: 1200
• Collection: Endeavor��
• Communicating: Communicating
• Condensing: No
• Configuration: Multi-Position
• Depth: 29-5/8
• Fan Speeds: 5
• Fuel Type: Propane
• Gas Valve Stages: Single-Stage
• Heat Exchanger Type: Aluminized Steel
• Height: 34
• Horsepower: 1/2 hp
• Ignition System: Direct Spark Ignition
• Input (MBH): 70
• Max Fuse Size: 15
• Phase: Single Phase
• Power Source: Gas
• UL Listed: Yes
• Vent Type: B-Vent/L-Vent
• Volts: 115V
• Watts: 373
• Width: 17-1/2
