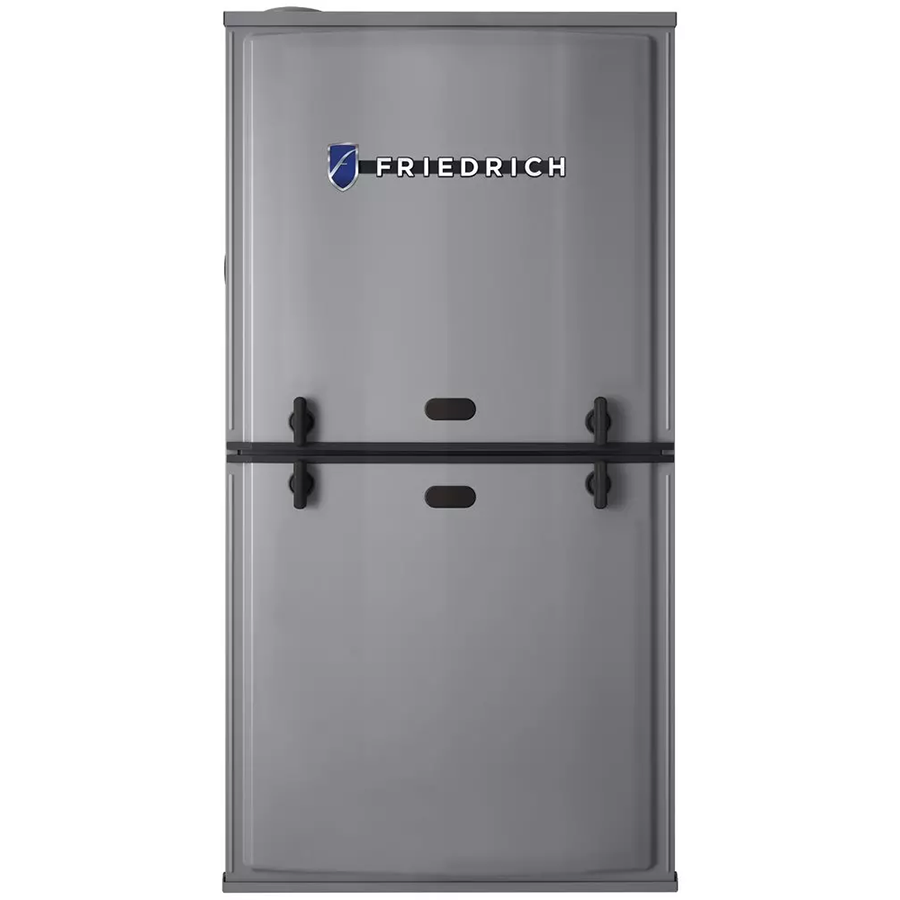

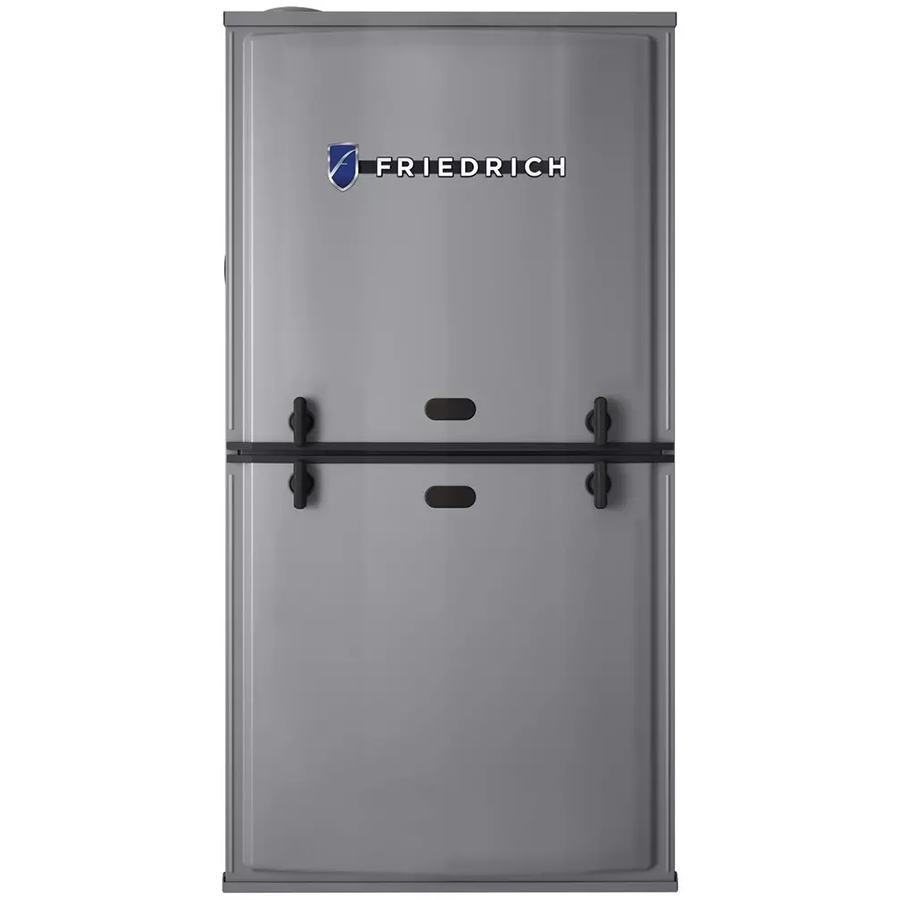

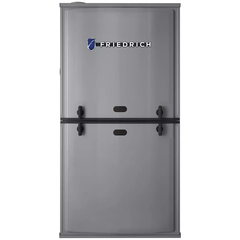

Friedrich FR951T1155A24M4SNAP Gas Furnace 95% 115K Btu

Product Description

The FRIEDRICH FR951T1155A24M4SNAP is a multi-position, single-stage natural gas furnace rated at 115,000 BTU/h input with 95% AFUE efficiency. It features an ECM (electronically commutated motor) blower drive, which delivers variable-speed airflow with lower operating amperage compared to a standard PSC motor. The 24-inch cabinet width and multi-position design allow installation in upflow, downflow, or horizontal configurations, giving contractors flexibility across a range of residential applications. This furnace is sized for nominal 5-ton cooling coil systems and is part of the Builders Series product line.

This furnace is suited for new construction and replacement installations in residential settings where a high-efficiency, single-stage heating solution is required. The multi-position configuration makes it appropriate for installations in utility closets, attics, crawlspaces, or dedicated mechanical rooms. The 5-ton nominal tonnage rating accommodates larger homes or buildings that pair the furnace with a matched cooling system. Licensed HVAC contractors handle installation in compliance with local mechanical codes and manufacturer specifications.

Key Features

• 95% AFUE efficiency reduces fuel consumption compared to standard 80% units
• 115,000 BTU/h input capacity for larger residential or light commercial heating loads
• ECM blower motor provides energy-efficient, quieter airflow versus PSC motor designs
• Multi-position cabinet installs in upflow, downflow, or horizontal orientation
• Single-stage operation with straightforward controls and wiring
• 24-inch cabinet width fits standard residential furnace openings

Compatibility

Designed as an OEM-style multi-position gas furnace for residential forced-air heating systems with a nominal 5-ton cooling coil configuration. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code (IFGC), local mechanical codes, and the manufacturer installation manual. Shut off gas supply and disconnect electrical power before beginning any installation or service work. A 95% AFUE condensing furnace requires proper condensate drainage and a Category IV sealed venting system; do not connect to a conventional B-vent flue. Verify static pressure, gas supply pressure, and flue condensate drainage before commissioning the unit.

Technical Specifications

• Fuel Type: Natural Gas
• AFUE Efficiency: 95%
• BTU/h Input: 115,000 BTU/h
• Nominal Cooling Tonnage: 5 tons
• Stage: Single Stage
• Motor Type: ECM
• Configuration: Multi-Position
• Cabinet Width: 24 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951T1155A24M4SNAP
