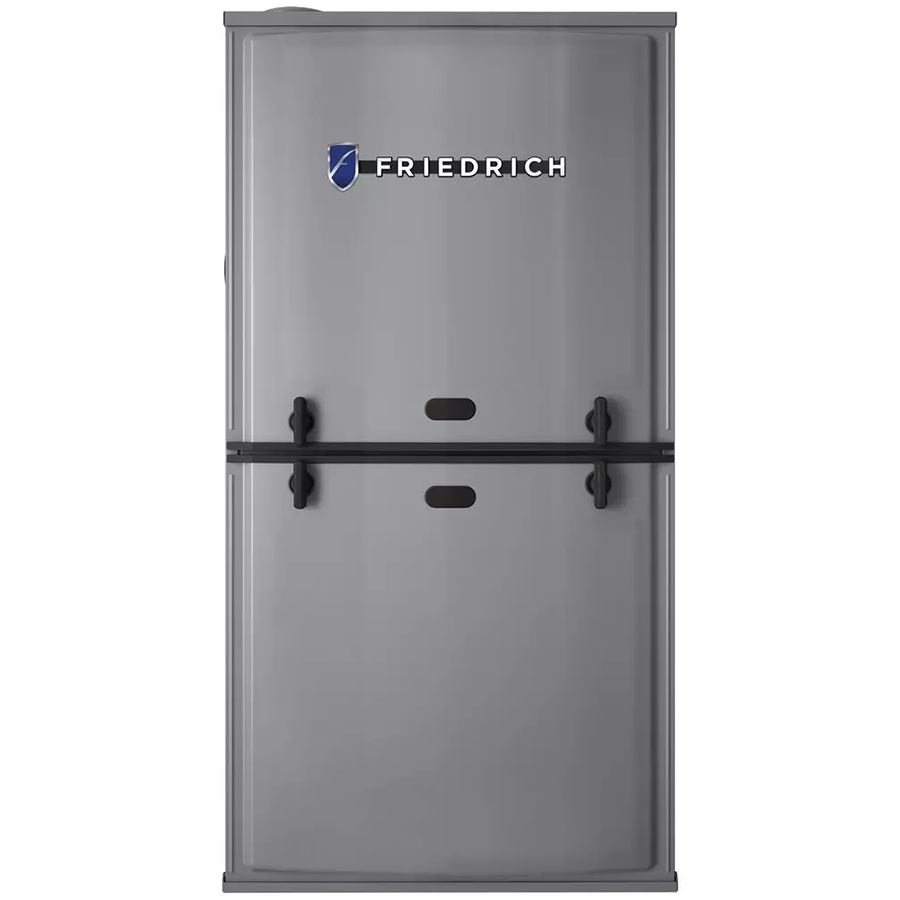

Friedrich FR951T1005A21M4SNAP Gas Furnace 95% 100K Btu

Product Description

The FRIEDRICH FR951T1005A21M4SNAP is a multi-position, single-stage natural gas furnace rated at 95% AFUE and 100,000 BTU/h input. Designed for the Builders Series, it uses an ECM blower motor to deliver efficient, consistent airflow across heating and cooling modes. The 95% AFUE rating means the unit extracts 95 cents of usable heat from every dollar of gas input, making it a strong performer for code-conscious new construction and replacement installs. Licensed HVAC technicians handle installation and commissioning of this equipment.

This furnace is built for multi-position installation, meaning it can be configured for upflow, downflow, or horizontal applications depending on the job site layout. At 21 inches wide, it fits standard air handler closets and utility spaces common in residential construction. The 5-ton nominal cooling capacity allows pairing with a matched 5-ton condensing unit for a complete split system. It is well suited for residential new construction projects where a single-stage, high-efficiency gas furnace is specified.

Key Features

• 95% AFUE efficiency for high-efficiency natural gas heating
• 100,000 BTU/h input capacity for larger residential loads
• Single-stage operation with straightforward controls integration
• ECM blower motor for reduced electrical consumption and quieter airflow
• Multi-position design supports upflow, downflow, and horizontal configurations
• 21-inch cabinet width fits standard residential mechanical spaces
• 5-ton nominal cooling airflow capacity for matched split-system pairing

Compatibility

Designed as an OEM-style multi-position natural gas furnace for residential split-system applications requiring a 5-ton, 100,000 BTU/h, single-stage unit with ECM motor technology.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code and applicable local codes. Shut off gas supply and disconnect electrical power before servicing or connecting any components. The ECM motor requires correct low-voltage control wiring and a compatible thermostat or communicating control system. Vent this furnace per the manufacturer specifications using approved Category IV flue materials appropriate for 95% AFUE condensing appliances.

Technical Specifications

• Fuel Type: Natural Gas
• BTU/h Input: 100,000 BTU/h
• AFUE Efficiency: 95%
• Stage: Single Stage
• Nominal Cooling Capacity: 5 Tons
• Motor Type: ECM
• Configuration: Multi-Position
• Cabinet Width: 21 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951T1005A21M4SNAP
