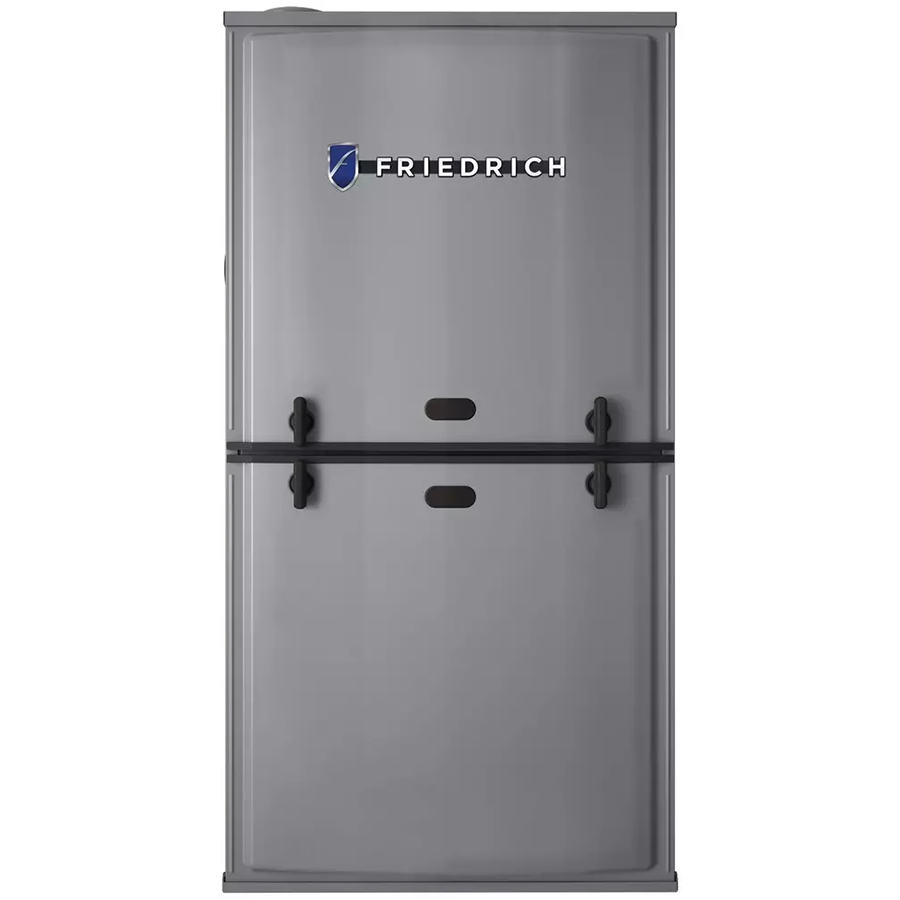

Friedrich FR951T0705A21M4SNAP 95% 70K Btu Gas Furnace

Product Description

The FRIEDRICH FR951T0705A21M4SNAP is a multi-position, single-stage natural gas furnace rated at 95% AFUE and 70,000 BTU/h input capacity. The unit features an ECM blower motor, which delivers variable-speed airflow efficiency and quieter operation compared to PSC motor alternatives. At 21 inches wide, the cabinet fits a range of residential applications where space is a consideration. This furnace is part of the Builders Series and is intended for installation by licensed HVAC technicians in new construction and replacement residential projects.

This furnace is designed for multi-position installation, allowing upflow, downflow, or horizontal orientation depending on the mechanical room or utility space configuration. The 5-ton nominal cooling airflow rating makes it compatible with central air systems up to 5 tons when paired with a matched coil and condensing unit. Single-stage operation provides straightforward, reliable heating without variable-speed burner staging. The 21-inch cabinet width is suited for installations where a compact footprint is required.

Key Features

• 95% AFUE efficiency reduces fuel consumption compared to standard 80% AFUE units
• ECM blower motor improves airflow efficiency and reduces electrical operating costs
• Multi-position configuration supports upflow, downflow, and horizontal installation
• 70,000 BTU/h natural gas input handles mid-size residential heating loads
• Single-stage burner operation provides consistent, reliable heat output
• 21-inch cabinet width fits tighter mechanical spaces in residential installations

Compatibility

Designed as an OEM-style residential natural gas furnace for multi-position installations with nominal 5-ton cooling system configurations. Verify coil, flue, and electrical compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes, NFPA 54, and the manufacturer installation instructions. Shut off the gas supply and disconnect electrical power before beginning any service or installation work. As a 95% AFUE condensing furnace, this unit requires a PVC condensate drain and approved PVC or CPVC vent piping rather than B-vent. Ensure the flue and combustion air intake are properly sized and terminated per local code requirements.

Technical Specifications

• Efficiency: 95% AFUE
• BTU/h Input: 70,000 BTU/h
• Nominal Cooling Capacity: 5 tons
• Stage: Single Stage
• Motor Type: ECM
• Configuration: Multi-Position
• Cabinet Width: 21 inches
• Fuel Type: Natural Gas

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951T0705A21M4SNAP
