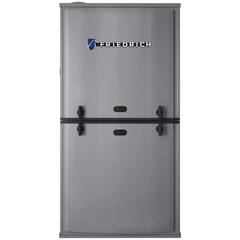

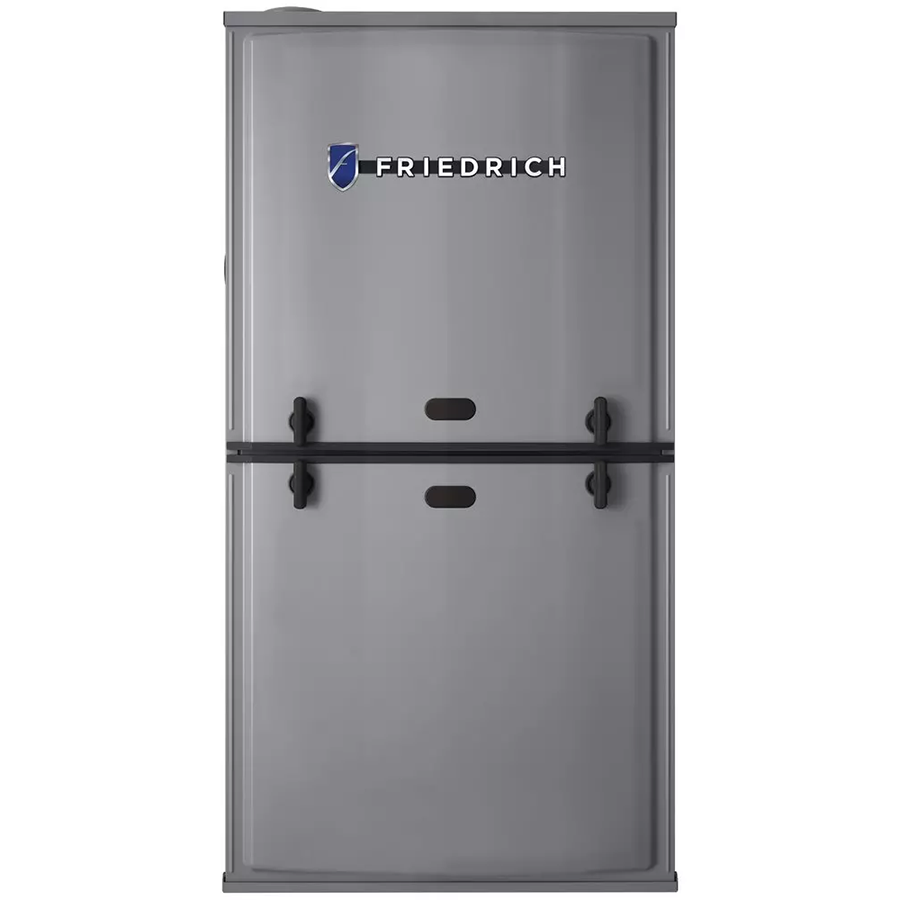

Friedrich FR951T0703A17M4SNAP Furnace 95% 70000 Btu

Product Description

The FRIEDRICH FR951T0703A17M4SNAP is a multi-position, single-stage natural gas furnace rated at 95% AFUE and 70,000 BTU/h input. It is part of the Builders Series and features an ECM blower motor for efficient airflow management. The 17-inch cabinet width accommodates a range of installation orientations, including upflow, downflow, and horizontal configurations. Licensed HVAC technicians install this unit in residential new-construction and replacement applications where high-efficiency gas heat and flexible positioning are required.

This furnace is designed for residential forced-air heating systems paired with a 3-ton nominal cooling coil. Its single-stage operation and 95% AFUE rating make it a straightforward, efficient choice for builders and HVAC contractors working on new residential construction or retrofit projects. The ECM motor contributes to lower blower energy consumption across heating and cooling seasons.

Key Features

• 95% AFUE efficiency rating reduces gas consumption compared to standard-efficiency units
• 70,000 BTU/h input capacity sized for typical residential heating loads
• Multi-position cabinet installs in upflow, downflow, or horizontal orientation
• ECM blower motor delivers variable-speed airflow with lower electrical draw
• Single-stage operation provides reliable, straightforward heating control
• 17-inch cabinet width fits standard residential utility closet and alcove installations

Compatibility

Designed as an OEM-style replacement or new-installation furnace compatible with 3-ton nominal central air systems using natural gas fuel. Consult system design documentation to confirm coil, thermostat, and duct sizing before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code (IFGC), local mechanical codes, and the manufacturer installation instructions. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Proper venting for a 95% AFUE condensing furnace requires a PVC or CPVC vent system — do not connect to a standard B-vent flue. Verify thermostat low-voltage wiring compatibility with the ECM control board prior to startup.

Technical Specifications

• Fuel Type: Natural Gas
• AFUE Efficiency: 95%
• BTU/h Input: 70,000 BTU/h
• Stage: Single Stage
• Nominal Cooling Capacity: 3 Tons
• Motor Type: ECM
• Configuration: Multi-Position
• Cabinet Width: 17 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951T0703A17M4SNAP
