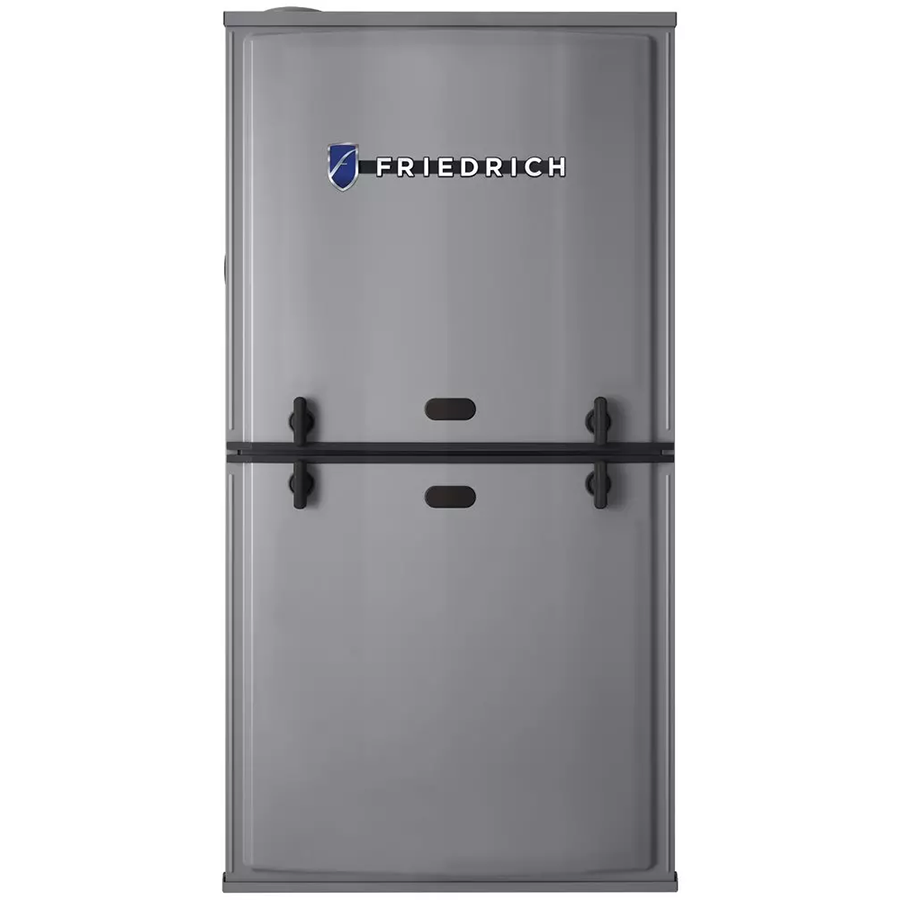

Friedrich FR951T0403A17M4SNAP 95% 40000 Btu Gas Furnace

Product Description

The FRIEDRICH FR951T0403A17M4SNAP is a multi-position, single-stage natural gas furnace rated at 95% AFUE efficiency and 40,000 BTU/h input. The unit is part of the Builders Series lineup and features an ECM (electronically commutated motor) blower drive, which delivers variable-speed airflow control and improved energy performance compared to standard PSC motors. At 17 inches wide, the cabinet fits a range of residential installation spaces. This furnace is designed for installation by licensed HVAC technicians in residential applications where high-efficiency gas heat is required.

The FR951T0403A17M4SNAP is suited for multi-position installation, meaning it can be configured for upflow, downflow, or horizontal airflow depending on the job site layout. The 3-ton nominal cooling airflow rating makes it compatible with matching central air conditioning or heat pump systems. Its single-stage gas valve provides straightforward, reliable heating operation in residential new construction and replacement projects where simplified controls are preferred over modulating or two-stage systems.

Key Features

• 95% AFUE efficiency reduces natural gas consumption compared to standard-efficiency furnaces
• ECM blower motor provides variable-speed airflow and lower operating energy draw
• Multi-position cabinet supports upflow, downflow, and horizontal installations
• Single-stage heating operation for straightforward controls and reliable ignition cycles
• 40,000 BTU/h input capacity suited for smaller residential heating loads
• 17-inch cabinet width fits tighter mechanical room and closet installations

Compatibility

Designed as an OEM-style residential gas furnace for multi-position installations with a nominal 3-ton cooling airflow match. No additional specific model compatibility data was provided in the product input.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, NFPA 54, and the manufacturer instructions. Shut off the gas supply and disconnect electrical power before beginning any service or replacement work. Venting must meet local code requirements for 95% AFUE condensing furnaces, which typically require PVC or CPVC flue piping rather than standard B-vent. Verify static pressure, gas line sizing, and electrical supply before commissioning.

Technical Specifications

• Fuel Type: Natural Gas
• AFUE Efficiency: 95%
• BTU/h Input: 40,000 BTU/h
• Stage: Single Stage
• Configuration: Multi-Position
• Motor Type: ECM
• Nominal Cooling Tonnage: 3 Tons
• Cabinet Width: 17 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR951T0403A17M4SNAP
