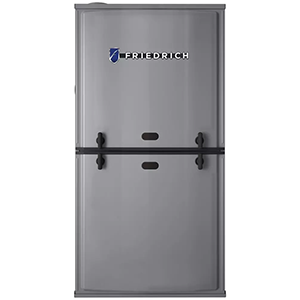

Friedrich FR802V1255A24UHSCAP Endeavor�� Line F-Series Plus 125000 BTU

Product Description

The FRIEDRICH FR802V1255A24UHSCAP is an Endeavor�� Line F-Series Plus, 80.00% AFUE, 125000 BTU horizontal and upflow direct drive two-stage furnace. It features EcoNet� and Bluetooth� technology for easy monitoring and troubleshooting. The furnace operates mainly at a low capacity of around 60-65% and switches to high capacity for stable heat distribution. A constant CFM motor allows for humidity control and energy savings.

• Built-in EcoNet� & Bluetooth� technology for monitoring and troubleshooting
• Two-stage heating for stable heat distribution
• Constant CFM motor for humidity control and energy savings

Product Highlights

This FRIEDRICH furnace features two-stage heating, a constant CFM motor, and EcoNet� enabled technology.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR802V1255A24UHSCAP

Technical Specifications

• A2L Compatible: Contingent
• AFUE: 80
• AMP: 12, 9.6
• ANSI: ANSI Z223.1
• BTU: 125000
• BTU Heat Rating: 100000 Btu/h
• Blower Type: Direct Drive
• CEC Compliant: For Sale in CA
• CFM: 1900
• Collection: Endeavor�� Line F-Series Plus
• Communicating: Communicating
• Condensing: No
• Configuration: Horizontal, Upflow
• Depth: 29-19/32
• Fan Speeds: 5
• Flue Size: 6
• Fuel Type: Propane
• Gas Valve Stages: Two-Stage
• Heat Exchanger Type: Aluminized Steel
• Height: 34
• Horsepower: 3/4 hp
• Ignition System: Direct Spark Ignition
• Length: 29-19/32
• MBH: 125
• Max Fuse Size: 20
• Phase: Single Phase
• Power Source: Gas
• Refrigerant: R-410A;R-454B
• UL Listed: Yes
• UPC: 662021670473
• Volts: 115V
• Watts: 560
• Weight: 143.5
• Width: 24-1/2
