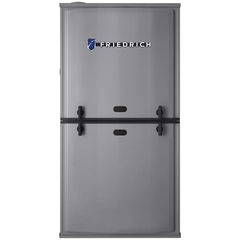

Friedrich FR802V0754A17DZSCAP Gas Furnace 80% 75K Btu

Product Description

The FRIEDRICH FR802V0754A17DZSCAP is a natural gas furnace rated at 75,000 BTU/h with 80 percent AFUE efficiency. It features a downflow configuration and an ECM variable speed blower motor, making it well suited for installations where the air handler sits above the conditioned space and supply air discharges downward. The 2-stage gas valve allows the unit to run at a reduced capacity during mild demand periods, improving comfort and reducing short-cycling. A licensed HVAC technician should handle all gas and electrical connections for this unit.

This furnace is designed for residential forced-air heating applications requiring a downflow configuration. At 17.5 inches wide, it fits standard downflow platform or closet installations. The 4-nominal-ton blower capacity supports matched cooling coil installations up to 4 tons, making it a practical choice for combination heating and cooling systems. The ECM motor improves part-load efficiency and supports variable airflow for both heating and cooling modes.

Key Features

• 80 percent AFUE natural gas furnace for cost-effective residential heating
• 75,000 BTU/h output suits medium to large residential applications
• 2-stage operation reduces short-cycling and improves temperature consistency
• ECM variable speed blower motor lowers operating energy compared to PSC motors
• Downflow configuration designed for platform or closet installs with downward air discharge
• 17.5-inch cabinet width fits standard downflow installation openings

Compatibility

Designed as an OEM-style replacement or new-installation downflow gas furnace for residential forced-air systems requiring a 4-nominal-ton, 80 percent AFUE, 2-stage ECM unit in a 17.5-inch cabinet width.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code (IFGC) and all applicable local codes. Shut off gas supply and disconnect electrical power before beginning any service or installation work. Downflow furnaces require a rated combustible-floor base or non-combustible platform as specified in the installation manual. Verify flue venting meets manufacturer and code requirements for an 80 percent non-condensing appliance before startup.

Technical Specifications

• Fuel Type: Natural Gas
• AFUE Efficiency: 80 percent
• Heating Capacity: 75,000 BTU/h
• Staging: 2 Stage
• Nominal Tons: 4 tons
• Configuration: Downflow
• Motor Type: ECM Variable Speed
• Cabinet Width: 17.5 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR802V0754A17DZSCAP
