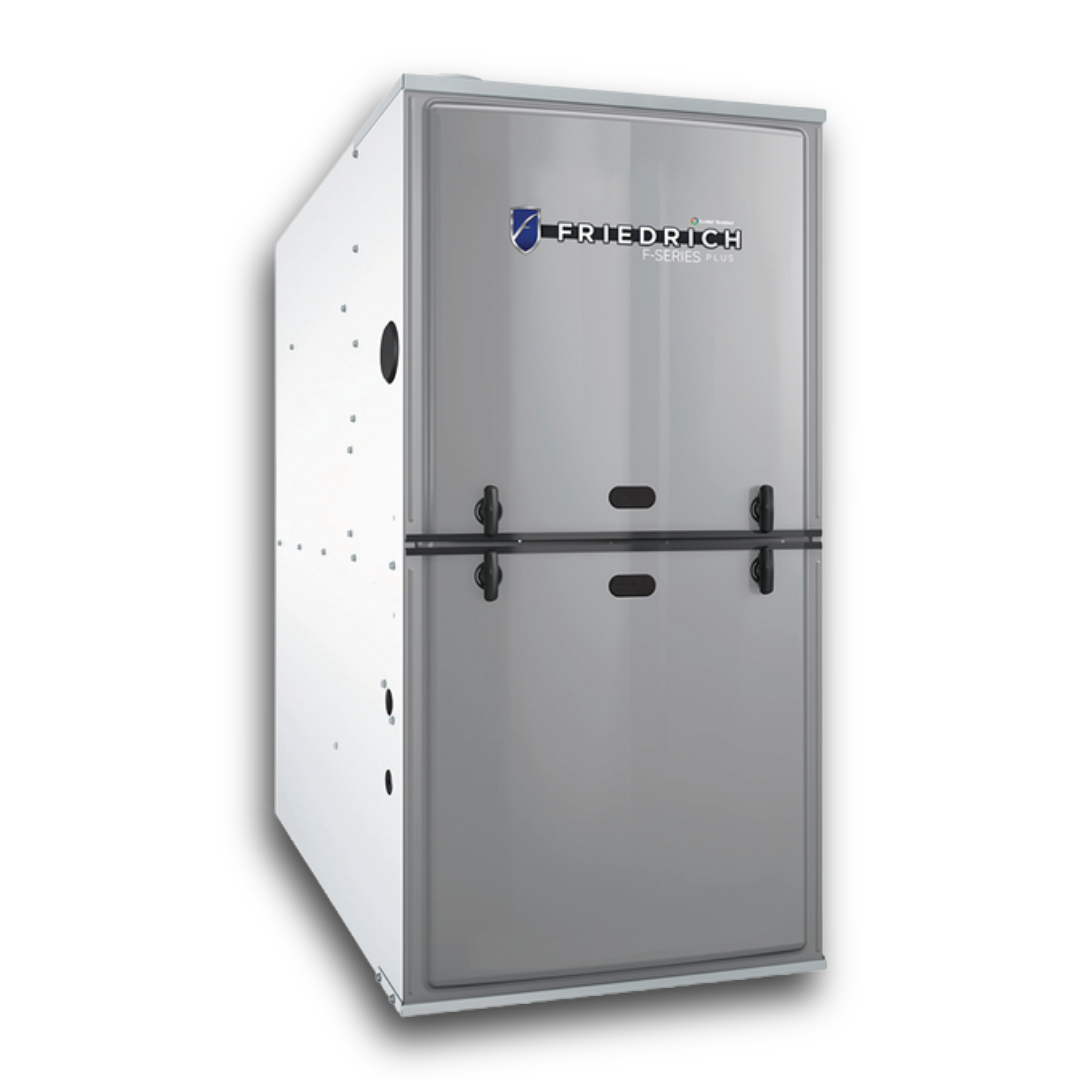

Friedrich FR802V0503A14DZSCAP Endeavor FR802V0503A14DZSCAP 80+ DZ 2 Stage Constant CFM Gas Furnace

Product Description

The Friedrich FR802V0503A14DZSCAP Endeavor is an 80+ DZ 2 Stage Constant CFM Gas Furnace designed for HVAC systems. This unit features a direct drive blower type, aluminized steel heat exchanger, and a direct spark ignition system. It operates on propane and is CEC compliant for sales in California. The furnace has a BTU heat rating of 40000 Btu/h and a CFM of 975 ft3/min.

• 80.00 % AFUE rating for efficient heating.
• Two-stage gas valve for adaptable performance.
• Direct spark ignition system ensures reliable start-up.

Product Highlights

The Friedrich Endeavor gas furnace provides efficient and consistent heating with its two-stage operation and robust design.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR802V0503A14DZSCAP

Technical Specifications

• Part #: FR802V0503A14DZSCA
• Item #: 10208922
• Manufacturer Part #: FR802V0503A14DZSCAP
• AFUE: 80.00 %
• AMP: 9
• ANSI: Z223.1
• BTU: 50000
• BTU Heat Rating: 40000 Btu/h
• Blower Type: Direct Drive
• CEC Compliant: For Sale in CA
• CFM: 975 ft3/min
• Collection: Endeavor��
• Communicating: Communicating
• Condensing: No
• Configuration: Downflow
• Depth: 29.59375 in
• Fan Speeds: 5
• Flue Size: 6
• Fuel Type: Propane
• Gas Valve Stages: Two-Stage
• Heat Exchanger Type: Aluminized Steel
• Height: 34 in
• Horsepower: 1/2 hp
• Ignition System: Direct Spark Ignition
• Input (MBH): 50
• MBH: 40
• Max Fuse Size: 15
• Phase: Single Phase
• Power Source: Gas
• Proposition 65: WARNING:This product contains a chemical known to the State of California to cause cancer
• Tonnage: 3 Ton
• UL Listed: Yes
• Volts: 115V
• Watts: 373 W
• Width: 14 in
