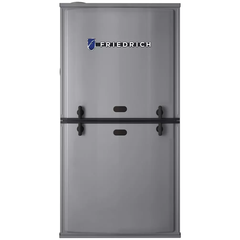

Friedrich FR801V0754A17UHSCAP Gas Furnace 75000 Btu/h

Product Description

The FRIEDRICH FR801V0754A17UHSCAP is a natural gas furnace rated at 75,000 BTU/h with 80 percent AFUE efficiency. It uses an ECM variable-speed motor to modulate airflow across the heat exchanger, reducing energy draw during steady-state operation and improving temperature consistency throughout the conditioned space. The single-stage gas valve controls burner output at one fixed rate. This unit is configured for upflow or horizontal installation, making it suitable for attic, closet, and basement applications. Licensed HVAC technicians perform installation and startup on this equipment.

This furnace is sized for residential or light-commercial systems requiring a 4-ton nominal cooling match. The upflow/horizontal configuration supports a wide range of duct layouts where supply air exits from the top or side of the cabinet. At 17.5 inches wide, the cabinet fits in standard furnace closets and utility spaces. The ECM motor provides quiet, efficient blower operation that supports multi-speed cooling and continuous fan modes when paired with a compatible air handler or coil arrangement.

Key Features

• 75,000 BTU/h heating capacity at 80 percent AFUE
• ECM variable-speed blower motor for efficient, quiet airflow
• Single-stage burner operation with natural gas fuel
• Upflow and horizontal installation configurations supported
• 17.5-inch cabinet width for standard closet and alcove installs
• 4-ton nominal cooling airflow match

Compatibility

Designed as an OEM-style replacement or new-installation gas furnace for residential upflow and horizontal applications requiring an 80 percent AFUE, single-stage, ECM variable-speed unit at 4-ton nominal capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code (IFGC), local mechanical codes, and the manufacturer installation instructions. Shut off the gas supply and disconnect electrical power before servicing or replacing any furnace components. The venting system must be sized and configured for an 80 percent non-condensing appliance using approved B-vent or single-wall metal vent materials as required by local code. Verify thermostat and low-voltage control wiring compatibility before powering the unit.

Technical Specifications

• Fuel Type: Natural Gas
• Heating Capacity: 75,000 BTU/h
• AFUE Efficiency: 80 percent
• Stage: Single Stage
• Nominal Cooling Match: 4 Ton
• Motor Type: ECM Variable Speed
• Configuration: Upflow/Horizontal
• Cabinet Width: 17.5 inches

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR801V0754A17UHSCAP
