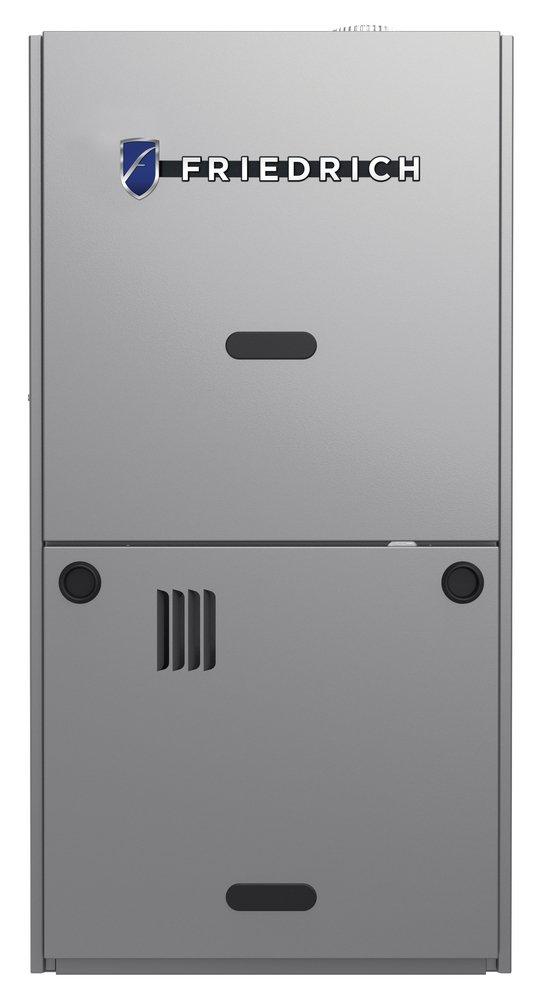

Friedrich FR801T1255A24DZSNAP Air Conditioning Endeavor™ 125k BTU Downflow Gas Furnace 24-1/2 inches

Product Description

The FRIEDRICH FR801T1255A24DZSNAP is an air conditioning Endeavor™ gas furnace with an 80% AFUE and 125k BTU, designed for downflow configuration and a width of 24-1/2". It operates on a single phase with a 115V power supply and consumes 746 watts. The furnace features a direct spark ignition system and an aluminized steel heat exchanger.

• 80% AFUE rating for efficient heating.
• 125,000 BTU capacity for powerful performance.
• Downflow configuration suitable for specific installation requirements.

Product Highlights

This FRIEDRICH gas furnace provides reliable heating with its robust design and efficient operation, suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR801T1255A24DZSNAP

Technical Specifications

• A2L Compatible: Contingent
• AFUE: 80
• AMP: 15
• ANSI: Z223.1
• BTU: 125000
• Blower Type: Direct Drive
• CFM: 1789
• Collection: Endeavor™
• Communicating: Non-Communicating
• Condensing: No
• Configuration: Downflow
• Fan Speeds: 5
• Flue Size: 6
• Fuel Type: Propane
• Gas Valve Stages: Single-Stage
• Heat Exchanger Type: Aluminized Steel
• Height: 34
• Ignition System: Direct Spark Ignition
• Input (MBH): 125
• Length: 29-19/32
• Max Fuse Size: 25
• Phase: Single Phase
• Power Source: Gas
• UL Listed: Yes
• UPC: 662021670848
• Volts: 115V
• Watts: 746
• Width: 24-1/2
