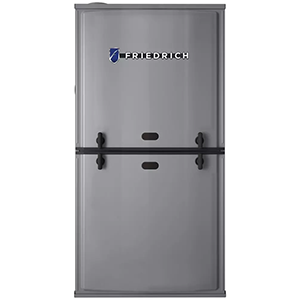

Friedrich FR801T0753A17DZSNAP Air Conditioning Endeavor�� 75k BTU Downflow Gas Furnace 17-1/2 inches

Product Description

The FRIEDRICH FR801T0753A17DZSNAP Air Conditioning Endeavor�� is an 80% AFUE, 75k BTU downflow gas furnace with a 17-1/2" width. This unit is designed for HVAC applications and is compatible with both R-410A and R-454B refrigerants. It features a direct drive blower and a single-stage gas valve.

• 80% AFUE rating for efficient heating
• 75000 BTU heat output
• Downflow configuration for versatile installation

Product Highlights

The FRIEDRICH FR801T0753A17DZSNAP is a reliable gas furnace suitable for residential and commercial heating needs. It is designed for optimal performance and energy efficiency.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FR801T0753A17DZSNAP

Technical Specifications

• A2L Compatible: Contingent
• AFUE: 80
• AMP: 12
• ANSI: Z223.1
• BTU: 75000
• BTU Heat Rating: 60000 Btu/h
• Blower Type: Direct Drive
• CEC Compliant: For Sale in CA
• CFM: 1059
• Collection: Endeavor��
• Communicating: Non-Communicating
• Condensing: No
• Configuration: Downflow
• Fan Speeds: 5
• Flue Size: 6
• Fuel Type: Propane
• Gas Valve Stages: Single-Stage
• Heat Exchanger Type: Aluminized Steel
• Height: 34
• Ignition System: Direct Spark Ignition
• Input (MBH): 75
• Length: 29-19/32
• MBH: 60
• Max Fuse Size: 15
• Phase: Single Phase
• Power Source: Gas
• Refrigerant: R-410A;R-454B
• UL Listed: Yes
• Volts: 115V
• Watts: 559.5
• Width: 17-1/2
