Friedrich FPHSR36A3B Single Zone Outdoor Heat Pump 36000 Btu

Product Description

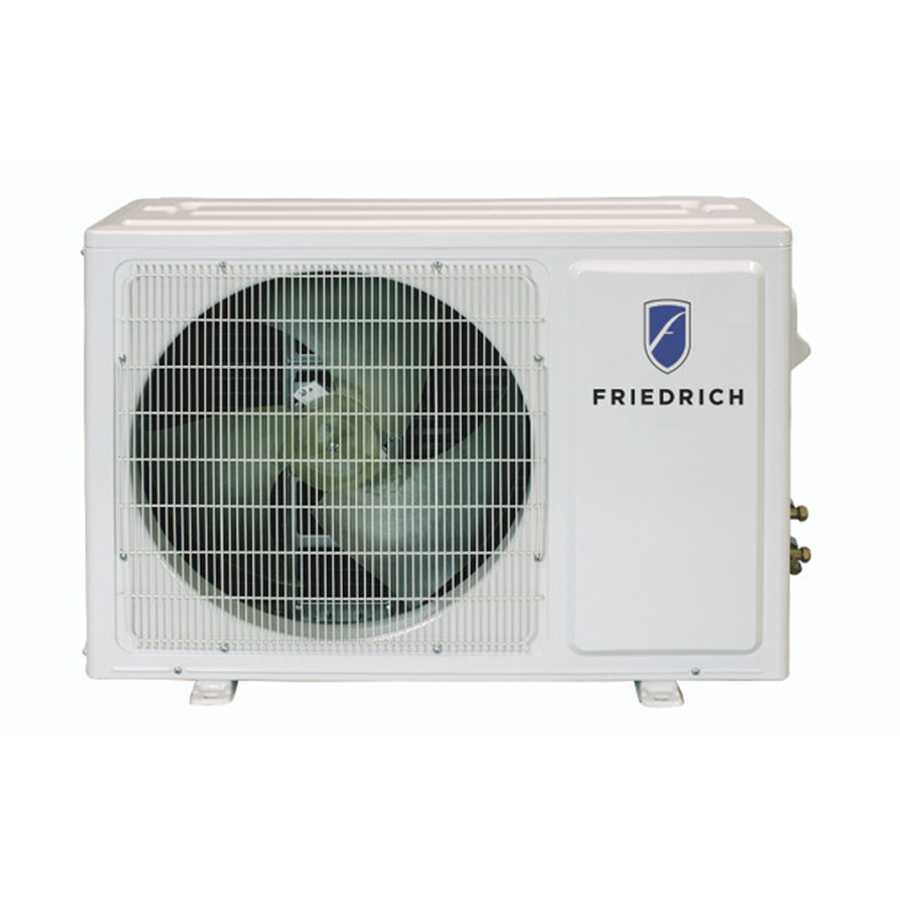

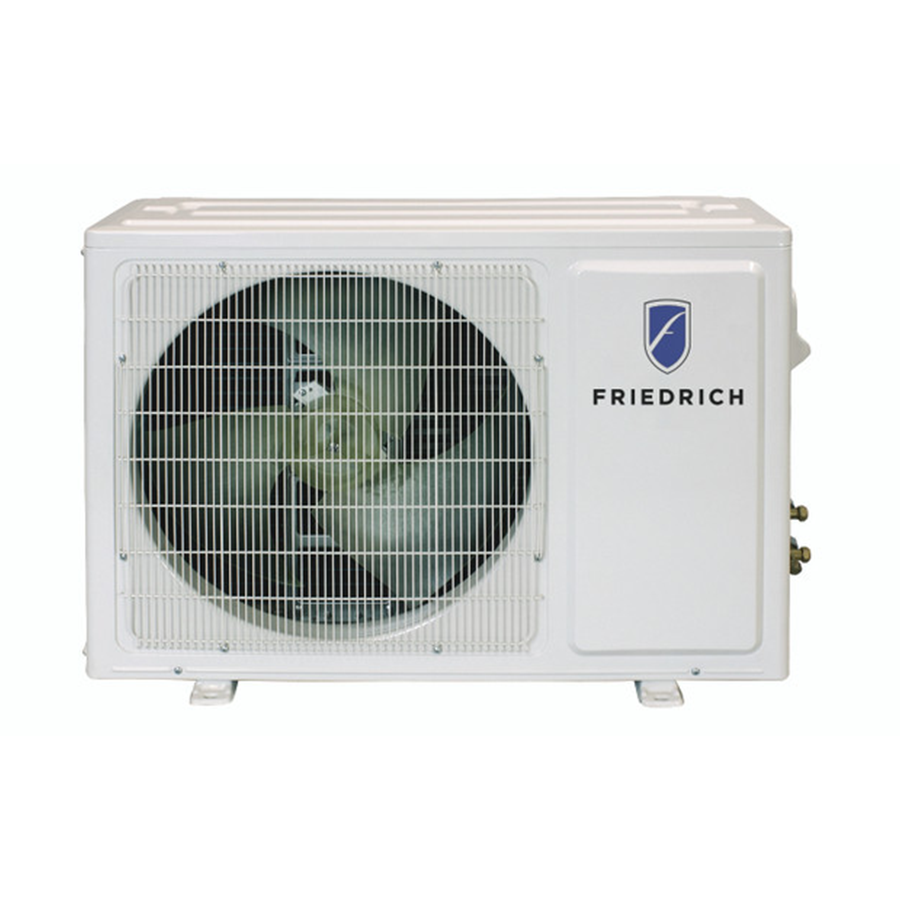

The FRIEDRICH FPHSR36A3B is a single-zone outdoor heat pump unit from the Floating Air Pro series, rated at 36,000 BTU/h and designed to operate at 230 volts. It serves as the outdoor condensing component of a ductless mini-split system, handling both heating and cooling functions. The unit connects to a matched indoor air handler via refrigerant lines using a 3/8-inch liquid connection and a 5/8-inch suction fitting. Licensed HVAC technicians install and commission this equipment. The Floating Air Pro series is engineered for extended operating ranges, allowing effective heating and cooling performance across a wider range of outdoor temperatures than standard mini-split systems.

This outdoor unit is suited for residential and light-commercial single-zone ductless applications where a dedicated 230-volt circuit is available. Typical installations include room additions, converted spaces, detached structures, or any area where extending existing ductwork is impractical. The unit pairs with a compatible Friedrich Floating Air Pro indoor wall-mount or other indoor handler to complete the system. It delivers both heating and cooling from a single outdoor unit, eliminating the need for separate heating equipment in many climates.

Key Features

• 36,000 BTU/h capacity for larger single-zone spaces
• 230-volt operation for compatibility with standard dedicated HVAC circuits
• 3/8-inch liquid line connection and 5/8-inch suction fitting for standard refrigerant piping
• Extended operating range for heating and cooling in variable outdoor conditions
• Part of the Floating Air Pro series, designed for high-efficiency single-zone ductless systems

Compatibility

Designed as an OEM-matched outdoor unit for the Friedrich Floating Air Pro single-zone ductless mini-split system. Pair with the compatible Friedrich Floating Air Pro indoor unit to complete the system installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer guidelines. Shut off all electrical power to the circuit before making any electrical or refrigerant connections. The outdoor unit requires a dedicated 230-volt circuit and must be mounted on a stable, level surface with adequate clearance for airflow on all sides. Refrigerant line connections should be leak-tested before system startup.

Technical Specifications

• Capacity: 36,000 BTU/h
• Voltage: 230 volts
• Item Type: Outdoor Unit
• Width: 34.875 inches
• Height: 31.25 inches
• Depth: 14.375 inches
• Liquid Line Connection: 3/8 inch
• Suction Line Connection: 5/8 inch

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHSR36A3B
