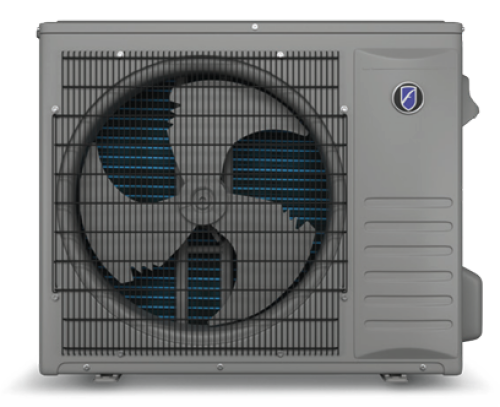

Friedrich FPHSR24A3D Floating Air Pro Series Outdoor Unit 24000 BTU

Product Description

The Friedrich FPHSR24A3D 24000 BTU Floating Air Pro Series outdoor mini split condenser uses inverter technology for efficient cooling. This single zone outdoor unit is compatible with the Friedrich FAHFW24A3D wall unit. It comes pre-charged with R454B refrigerant, a low GWP alternative to R410A, sufficient for 25 ft. of line.

• Low GWP R454B Refrigerant
• Precision Inverter Technology / Variable Speed Compressor for energy efficiency and smooth performance
• Soft Start Technology starts compressor at reduced amperage

Product Highlights

Features include DiamonBlue corrosion protection, quiet operation, and easy installation. Designed with FastPro for quick maintenance access and includes a BLDC motor.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHSR24A3D

Technical Specifications

• Cooling BTUs: 24000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 24000
• Outdoor Unit Noise Level (dBA): 53
• Inverter Technology: Yes
• Line Set Liquid Line: 3/8"
• Line Set Suction Line: 5/8"
• Maximum Pipe Length (ft.): 100
• Max. Height Difference (Indoor / Outdoor) (ft.): 50
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -13°F - 75°F
• Min. Outdoor Temp for Heat °F: -13
• Voltage: 208-230V
• Amps: 22
• Circuit Breaker Size (Amps): 35
• A2L Compatible: Yes
• Application: Heating, Cooling
• Auto Switching Heat: Yes
• BTU Cooling Rating: 24000 Btu/h
• HVAC System Type: Heat Pump
• Indoor Outdoor: Outdoor
• Installation Type: Wall Mount
• Refrigerant: R-454B
• SEER2: 22.5
• SEER2 Range: 15.2 - 40.0
• Type: FFPHSR24A3D
• Zones: 1
• Volts: 208/230V
