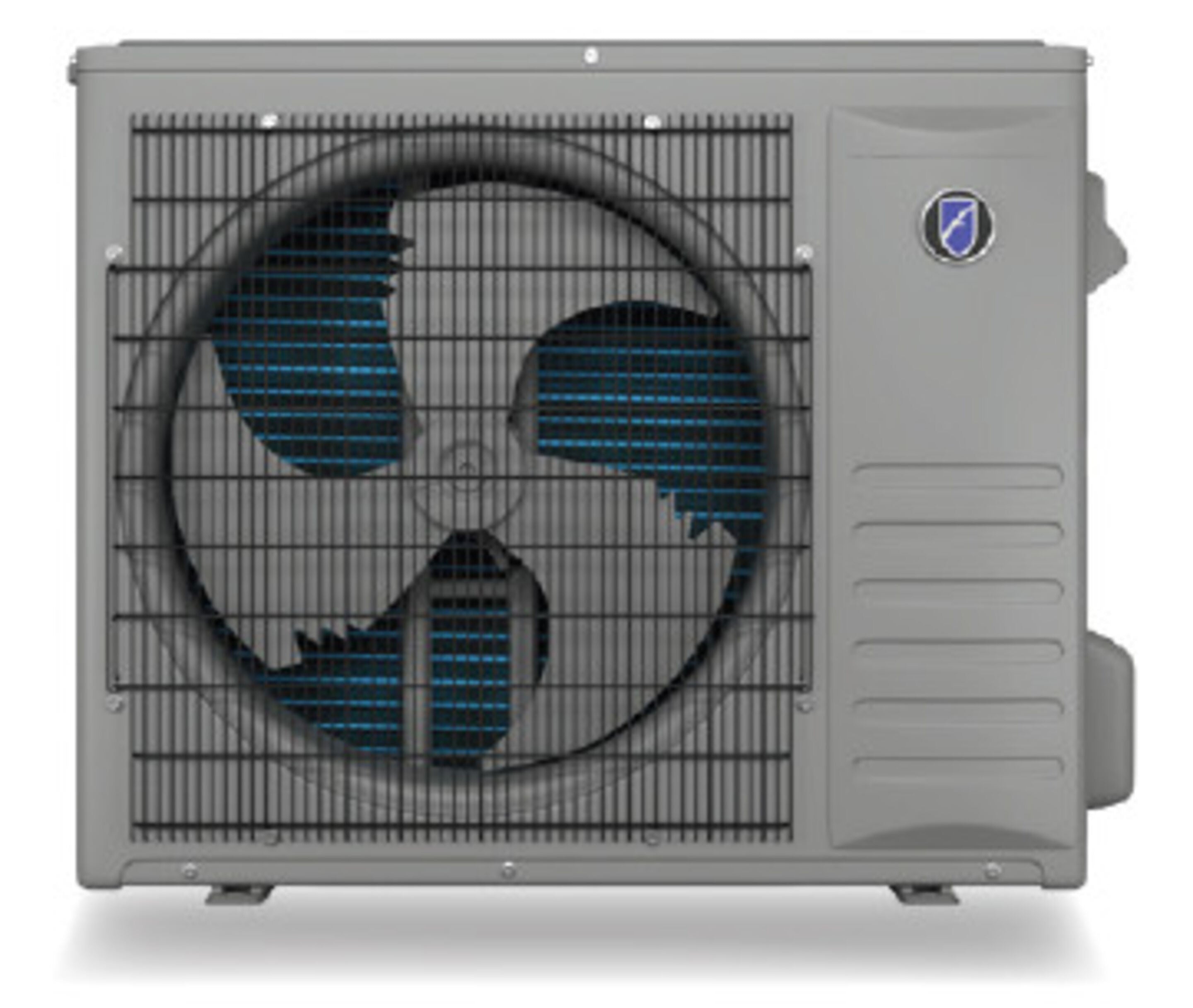

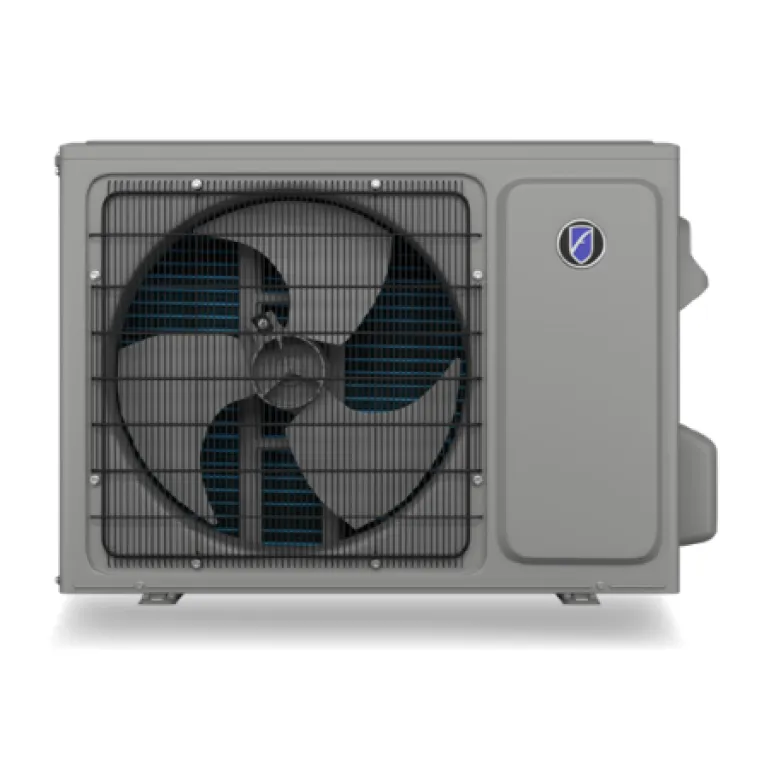

Friedrich FPHSR09A3D 9000 BTU Floating Air Pro Series Outdoor Unit - 230V - R454B Refrigerant

Product Description

The Friedrich FPHSR09A3D is a 9000 BTU Floating Air Pro Series outdoor mini split condenser with inverter technology for efficient cooling. Designed for 230V applications, this single zone heat pump unit uses R454B refrigerant. It is pre-charged with refrigerant sufficient for 25 ft. of line and can be paired with the Friedrich FAHFW09A3D wall unit.

• Low GWP R454B Refrigerant
• Precision Inverter Technology / Variable Speed Compressor for energy efficiency and smooth performance
• Soft Start Technology - starts compressor at reduced amperage

Product Highlights

Features DiamonBlue Advanced Corrosion Protection, quiet operation, and easy installation. Operates in cooling mode at low ambient temperatures as low as 5°F and in heating mode as low as -13°F.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHSR09A3D

Technical Specifications

• Cooling BTUs: 9000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 9000
• Outdoor Unit Noise Level (dBA): 53
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Maximum Pipe Length (ft.): 66
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -13°F - 75°F
• Min. Outdoor Temp for Heat °F: -13
• Width (in.): 31.875
• Depth (in.): 11
• Height (in.): 23
• Voltage: 208-230V
• Amps: 9.5
• Circuit Breaker Size (Amps): 15
• Max. Airflow: 1,471 CFM
• Fan Motor: 36W (Output)
• SEER2: 25
• Cooling Capacity: 9,000 Btu/h
• Heating Capacity: 9,000 Btu/h
• COP2: 4.0
• EER2: 13.7
• HSPF2: 11.0
• Connection: Flare
• Moisture Removal: 1.9 pints/hr
