Friedrich FPHSR09A1C 9000 BTU Floating Air Pro Series Outdoor Unit - 115V - R454B Refrigerant

Product Description

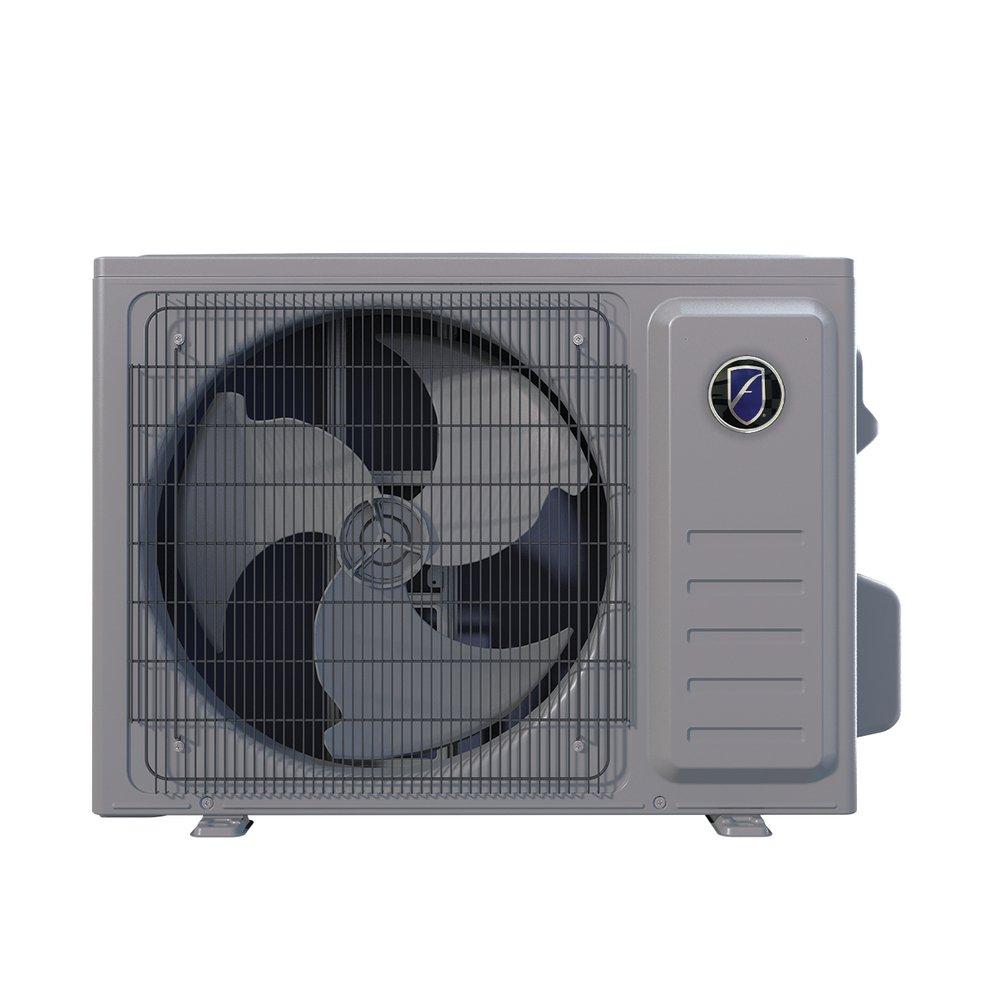

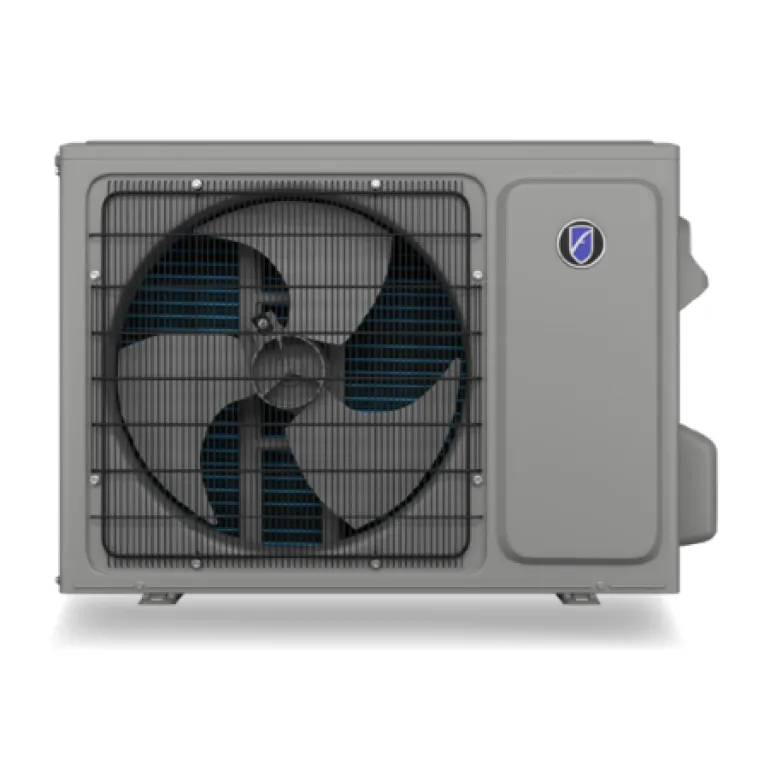

The Friedrich FPHSR09A1C 9000 BTU Floating Air Pro Series condenser is a 115 volt single zone outdoor unit featuring inverter technology for efficient cooling. It uses variable compressor speeds to maintain comfort and reduce energy costs. The outdoor unit comes pre-charged with R454B refrigerant sufficient for 25 ft. of line. It can be used with the Friedrich FAHSW09A1C Wall Unit.

• Precision Inverter Technology / Variable Speed Compressor for energy efficiency and smooth performance
• Soft Start Technology - starts compressor at reduced amperage
• Easy installation - Your system will be up and running in just a few short hours in most cases.

Product Highlights

The Friedrich FPHSR09A1C offers efficient cooling with inverter technology, soft start, and easy installation for ductless mini-split systems.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHSR09A1C

Technical Specifications

• Cooling BTUs: 9000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 9000
• Outdoor Unit Noise Level (dBA): 53
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Maximum Pipe Length (ft.): 66
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 118°F
• Ambient Temperature Range - Heating: -13°F - 75°F
• Min. Outdoor Temp for Heat °F: -13
• Width (in.): 31.875
• Depth (in.): 11
• Height (in.): 23
• Voltage: 115V~,60Hz,1P
• Amps: 16
• Circuit Breaker Size (Amps): 25
• Max. Airflow: 1,471 CFM
• Fan Motor: 36W (Output)
• Refrigerant: R-454B
• SEER2: 23
• Cooling Capacity: 9,000 Btu/h
• Heating Capacity: 9,500 Btu/h
• COP2: 4.0
• EER2: 12.3
• HSPF2: 10.0
• Sound Level: 53 dB(A)
• A2L Compatible: Yes
• Application: Heating, Cooling
• Auto Switching Heat: Yes
• BTU: 9000
• HVAC System Type: Heat Pump
• Indoor Outdoor: Outdoor
• Installation Type: Wall Mount
• Type: FFPHSR09A1C
• Volts: 115V
• Zones: 1
