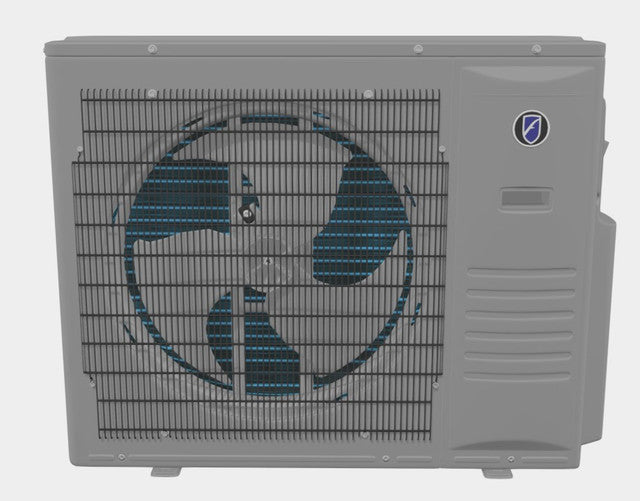

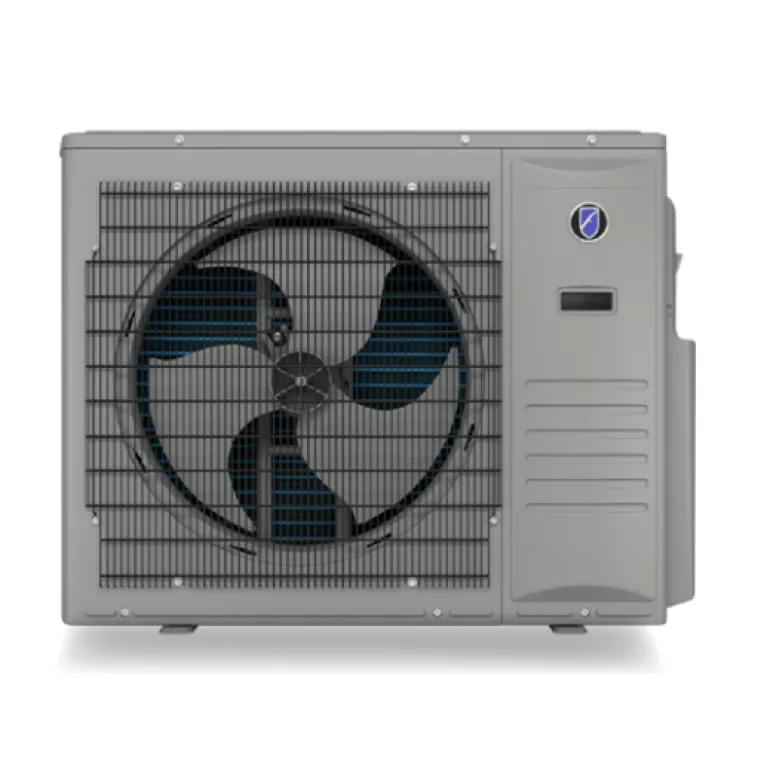

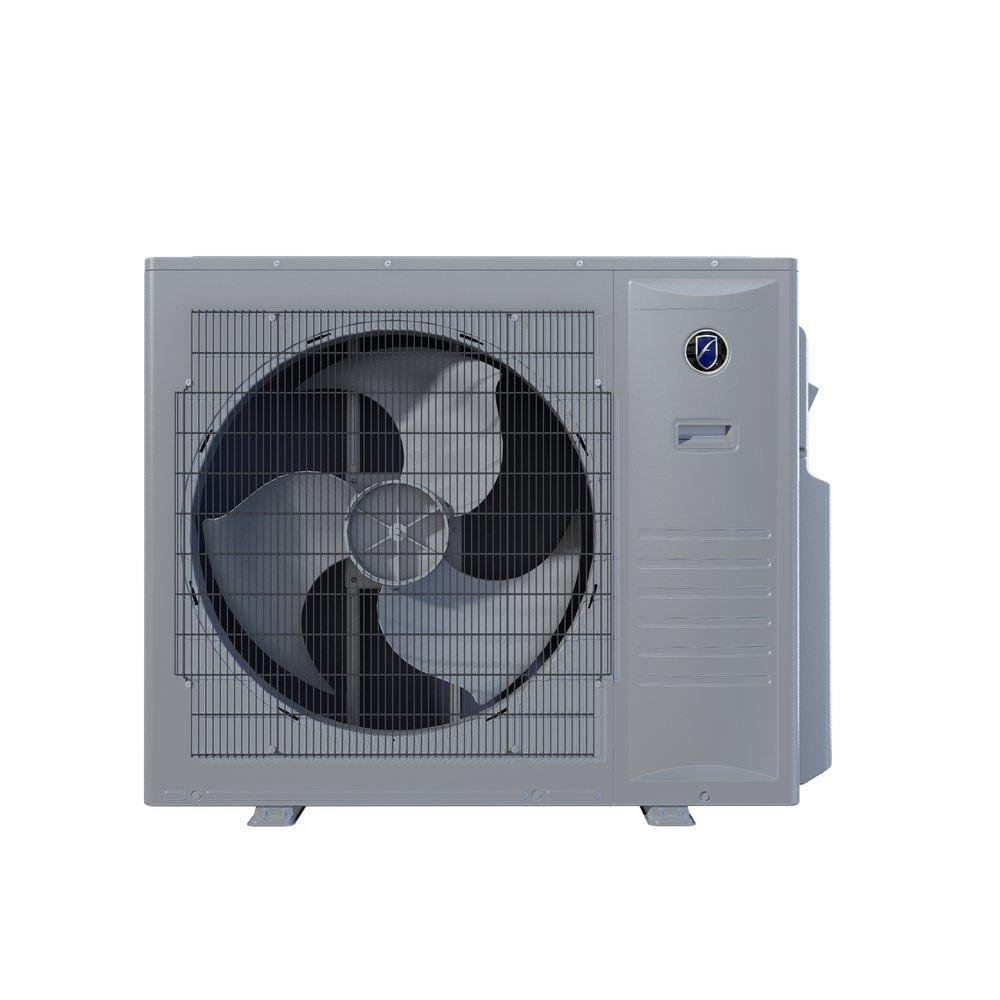

Friedrich FPHMR36A3D Floating Air Pro-X Quad-Zone Mini Split Air Conditioner with Heat Pump 36000 BTU

Product Description

The FRIEDRICH FPHMR36A3D outdoor quad-zone condenser features Friedrich's Precision Inverter Technology, offering a variable speed compressor. This Energy Star rated unit uses R454B refrigerant and features low ambient operation for cooling and heating. The built-in troubleshooting control board allows checking parameters on all units. It can connect up to four indoor units with a connected capacity of up to 48,000 BTUs.

• Precision Inverter Technology with variable speed compressor
• Uses R454B refrigerant with a low Global Warming Potential (GWP)
• Features a built-in troubleshooting control board

Product Highlights

This Friedrich multi-zone compressor offers easy installation, DiamonBlue Advanced Corrosion Protection, and ultra-quiet operation.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHMR36A3D

Technical Specifications

• Number of Zones: 2 - 4
• Maximum Number of Indoor Units: 4
• Max. Connected Outdoor BTU Capacity: 48000
• Refrigerant: R454B
• Energy Star: Yes
• Outdoor Unit Noise Level (dBA): 64
• Dehumidification (pts/hr): 4.3
• Includes Heat Pump: Yes
• Cooling BTUs (Non-Ducted): 36000
• EER2 (Non-Ducted): 12.85
• SEER2 (Non-Ducted): 22.0
• Heat Pump BTUs (Non-Ducted): 36000
• COP (Non-Ducted): 3.91
• HSPF2 (non-ducted): 10.0
• Cooling BTUs (Ducted): 36000
• EER2 (Ducted): 12.85
• SEER2 (Ducted): 19.0
• Heat Pump BTUs (Ducted): 36000
• COP (Ducted): NA
• HSPF2 (Ducted): 9.0
• Inverter Technology: Yes
• Connectivity: Built-In WiFi
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Max. Pipe Length (ft.): 230
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 125°F
• Ambient Temperature Range - Heating: -13°F - 75°F
• Min. Outdoor Temp for Heat °F: -13
• Width (in.): 38.375
• Depth (in.): 14.125
• Height (in.): 32.875
• Voltage: 208-230V
• Amps: 32
• Circuit Breaker Size (Amps): 50
• Cooling Capacity: 36,000 Btu/h
• Heating Capacity: 36,000 Btu/h
• Moisture Removal: 4.3 pints/h
• Airflow: 3,357 CFM
• Model #: FPHMR36A3D
• A2L Compatible: Yes
• Application: Heating, Cooling
• BTU: 36000
• Maximum Overcurrent Protection (MOP): 50
• MiniSplit Parts or Accessory Type: Condenser
• Minimum Circuit Ampacity (MCA): 32
• Multi-Zone Compatible: Yes
• Number of Condenser Fan Motors: 1
• Proposition 65: Cancer and Reproductive Harm
• Tonnage: 3 Ton
• Type: FFPHMR36A3D
• UPC: 724587449273
• Volts: 230V
• Zones: 4
