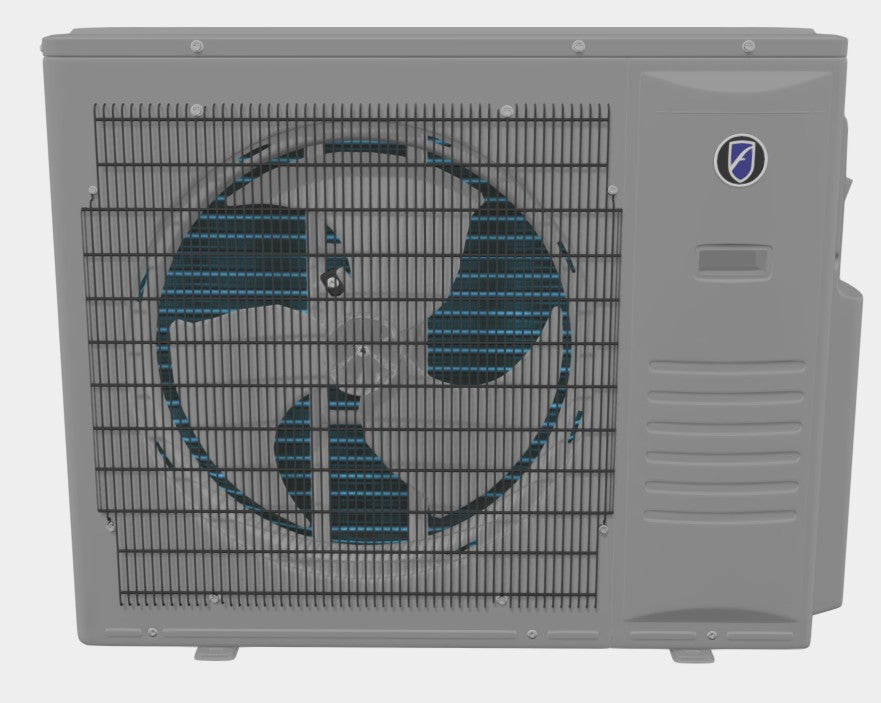

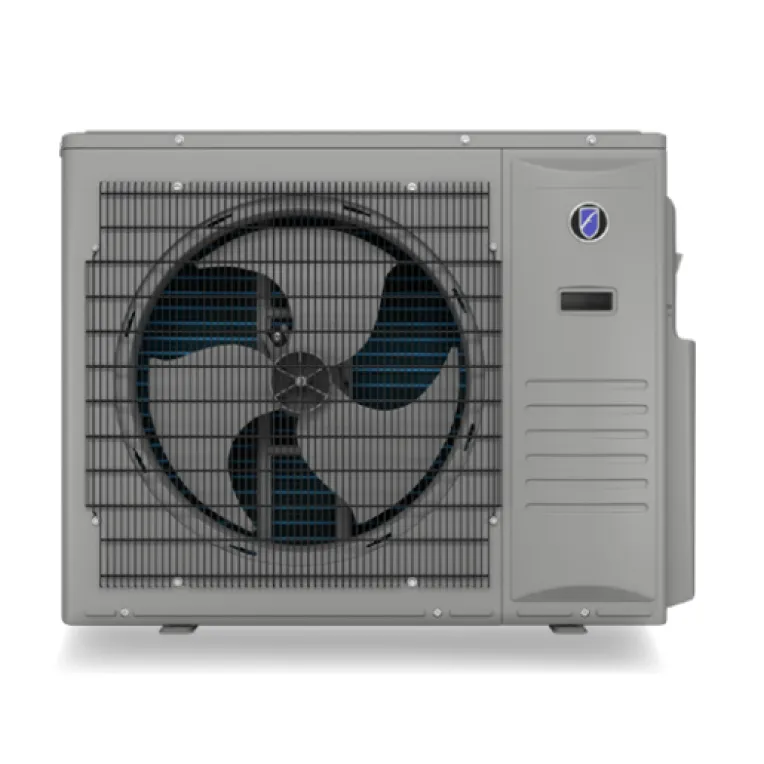

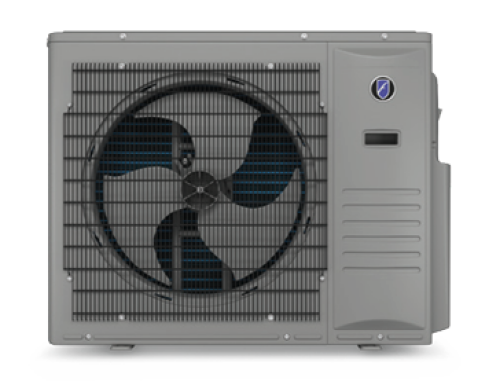

Friedrich FPHMR27A3D 27000 BTU Floating Air Pro-X Tri-Zone Mini Split Air Conditioner with Heat Pump

Product Description

The FRIEDRICH FPHMR27A3D outdoor tri-zone condenser features Friedrich's Precision Inverter Technology, offering a variable speed compressor. This 27000 BTU unit has a connected capacity of up to 36,000 BTUs and uses R454B refrigerant. It operates in cooling mode from 5°F to 125°F and in heating mode from -13°F to 75°F. A minimum of two units must be connected.

• Features Precision Inverter Technology with variable speed compressor.
• Utilizes R454B refrigerant with a low Global Warming Potential (GWP).
• Includes a built-in troubleshooting control board for easy maintenance.

Product Highlights

The FPHMR27A3D offers efficient, multi-zone climate control with a wide operating range and user-friendly features.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHMR27A3D

Technical Specifications

• Number of Zones: 2 - 3
• Maximum Number of Indoor Units: 3
• Max. Connected Outdoor BTU Capacity: 36000
• Refrigerant: R454B
• Energy Star: Yes
• Outdoor Unit Noise Level (dBA): 62
• Dehumidification (pts/hr): 3.0
• Includes Heat Pump: Yes
• Cooling BTUs (Non-Ducted): 27000
• EER2 (Non-Ducted): 12.85
• SEER2 (Non-Ducted): 23.0
• Heat Pump BTUs (Non-Ducted): 27000
• COP (Non-Ducted): 3.6
• HSPF2 (non-ducted): 10.0
• Cooling BTUs (Ducted): 27000
• EER2 (Ducted): 11.5
• SEER2 (Ducted): 18.0
• Heat Pump BTUs (Ducted): 27000
• COP (Ducted): NA
• HSPF2 (Ducted): 8.8
• Inverter Technology: Yes
• Connectivity: Built-In WiFi
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Max. Pipe Length (ft.): 230
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Ambient Temperature Range - Cooling: 5°F - 125°F
• Ambient Temperature Range - Heating: -13°F - 75°F
• Min. Outdoor Temp for Heat °F: -13
• Width (in.): 38.375
• Depth (in.): 14.125
• Height (in.): 32.875
• Voltage: 208-230V
• Amps: 25
• Circuit Breaker Size (Amps): 40
• Nominal CFM: 3,357
