Product Description

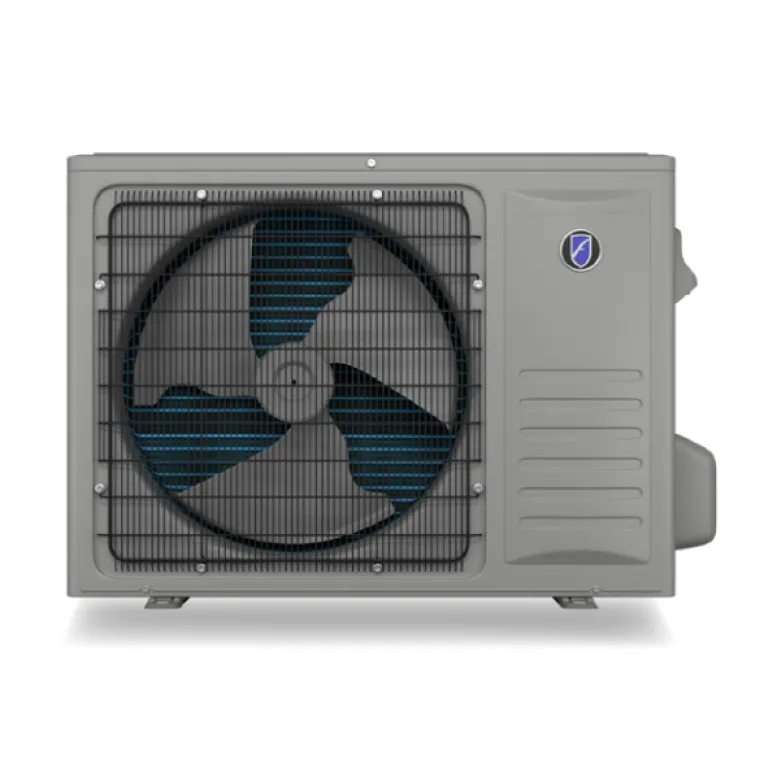

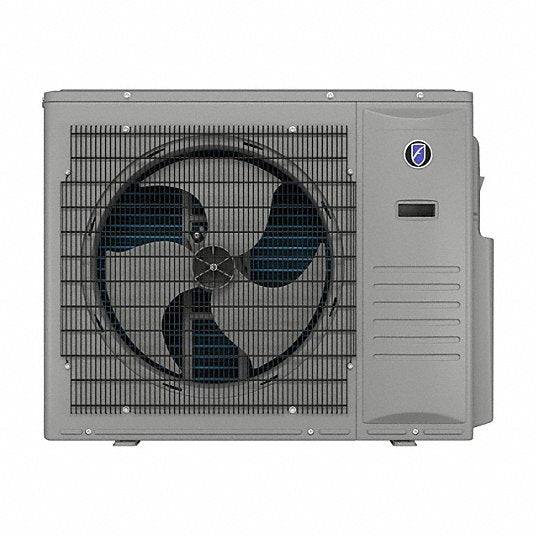

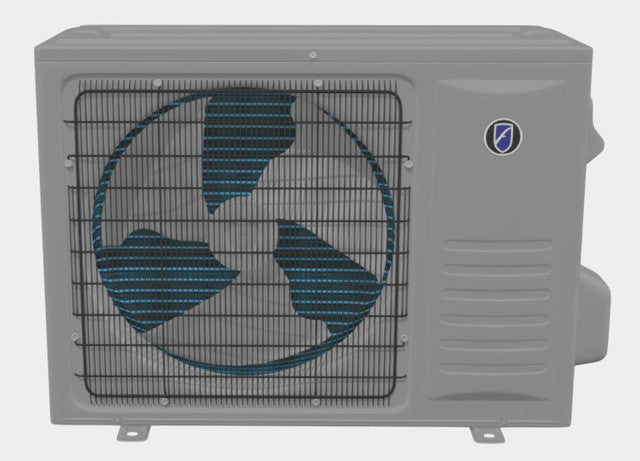

The FRIEDRICH FPHMR18A3D outdoor dual zone condenser features Friedrich's Precision Inverter Technology, offering a variable speed compressor. This 18,000 BTU unit has a connected capacity of up to 24,000 BTUs and uses R454B refrigerant. It operates in cooling mode from 5°F to 125°F and in heating mode from -13°F to 75°F. It is Energy Star and Cold Climate Energy Star rated.
- Precision Inverter Technology with variable speed compressor
- Dual zone unit for comfort control in two separate spaces
- Low Ambient Operation for year-round heating and cooling
Product Highlights
The FPHMR18A3D mini split air conditioner offers efficient and flexible climate control with its inverter technology and wide operating temperature range.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: FPHMR18A3D
-
Country of Origin: China
Technical Specifications
-
Number of Zones: 2
-
Maximum Number of Indoor Units: 2
-
Max. Connected Outdoor BTU Capacity: 24000
-
Refrigerant: R454B
-
Energy Star: Yes
-
Outdoor Unit Noise Level (dBA): 55
-
Dehumidification (pts/hr): 2.4
-
Includes Heat Pump: Yes
-
Cooling BTUs (Non-Ducted): 18000
-
EER2 (Non-Ducted): 13.3
-
SEER2 (Non-Ducted): 22.0
-
Heat Pump BTUs (Non-Ducted): 18000
-
COP (Non-Ducted): 3.82
-
HSPF2 (Non-Ducted): 10.0
-
Cooling BTUs (Ducted): 18000
-
EER2 (Ducted): 12.0
-
SEER2 (Ducted): 17.5
-
Heat Pump BTUs (Ducted): 18000
-
COP (Ducted): NA
-
HSPF2 (Ducted): 9.4
-
Inverter Technology: Yes
-
Connectivity: Built-In WiFi
-
Line Set Liquid Line: 1/4"
-
Line Set Suction Line: 3/8"
-
Max. Pipe Length (ft.): 164
-
Max. Height Difference (Indoor / Outdoor) (ft.): 49
-
Ambient Temperature Range - Cooling: 5°F - 125°F
-
Ambient Temperature Range - Heating: -13°F - 75°F
-
Min. Outdoor Temp for Heat °F: -13
-
Width (in.): 33.875
-
Depth (in.): 12.25
-
Height (in.): 26.375
-
Voltage: 208-230V
-
Amps: 21
-
Circuit Breaker Size (Amps): 30
-
Product Marketing Name: Friedrich Floating Air Pro X Ductless Mini-split Multi-zone Heat Pump (Outdoor Unit)
-
Energy Star Qualified: Yes
-
Operation: Cool / Heat Pump
-
Cooling Capacity (BTUh): 18,000
-
Heat Pump Capacity (BTUh): 18,000
-
Cooling Area (Sq Ft.): Up to 1,000
-
Cooling Power: 18000 btu
-
Heating Power: 18000 btu
-
Airflow: 1,850 cfm
-
Minimum Average Coverage Area: 700 sq ft
-
Maximum Average Coverage Area: 1,000 sq ft
-
Compressor Technology: Variable Output (Inverter)
-
Compressor Type: Rotary
-
Control Location: Handheld Remote
-
Control Type: Electronic
-
Minimum Cooling Capacity: 9,000 BtuH
-
Maximum Cooling Capacity: 22,000 BtuH
-
Current: 5.83 A; 6.05 A
-
Dehumidification Rate: 2.4 pt/hr
-
Energy Efficiency Ratio (EER) Rating: 13.3
-
For Line Length - Minimum: 25 ft
-
For Line Length - Maximum: 164 ft
-
Frequency: 60 Hz
-
Heat Pump Heating Capacity - Minimum: 14,500 BtuH
-
Heat Pump Heating Capacity - Maximum: 30,000 BtuH
-
Heating Method: Heat Pump
-
Number of Indoor Units Supported: 2
-
Number of Speeds: Variable
-
Operation Mode: Cooling/Heating
-
Outdoor Sound Level: 55 dBA
-
Power Source: Hardwired
-
Programming Capability: Not Programmable
-
Refrigerant Precharge: 51.1 oz
-
Refrigerant Type: R-454B
-
Remote Control Functions: No Remote Control
-
Seacoast Corrosion Protection: Rear Coil
-
SEER Rating: 22
-
Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 23.0
-
Standards: ENERGY STAR® Certified
-
Suction Line Size: 3/8 in
-
System Component: Condenser Only
-
Wattage - Cooling: 1,380 W
-
Wattage - Heating: 1,364 W
-
Dimensions: 12.25 × 33.875 × 26.375 in
-
Nominal CFM: 1,850
-
COP2: 3.82
-
HSPF2: 10.00
-
Sound Level: 55 dBA
-
Moisture Removal: 2.4 pints/hr
-
Gas Line: 3/8"
