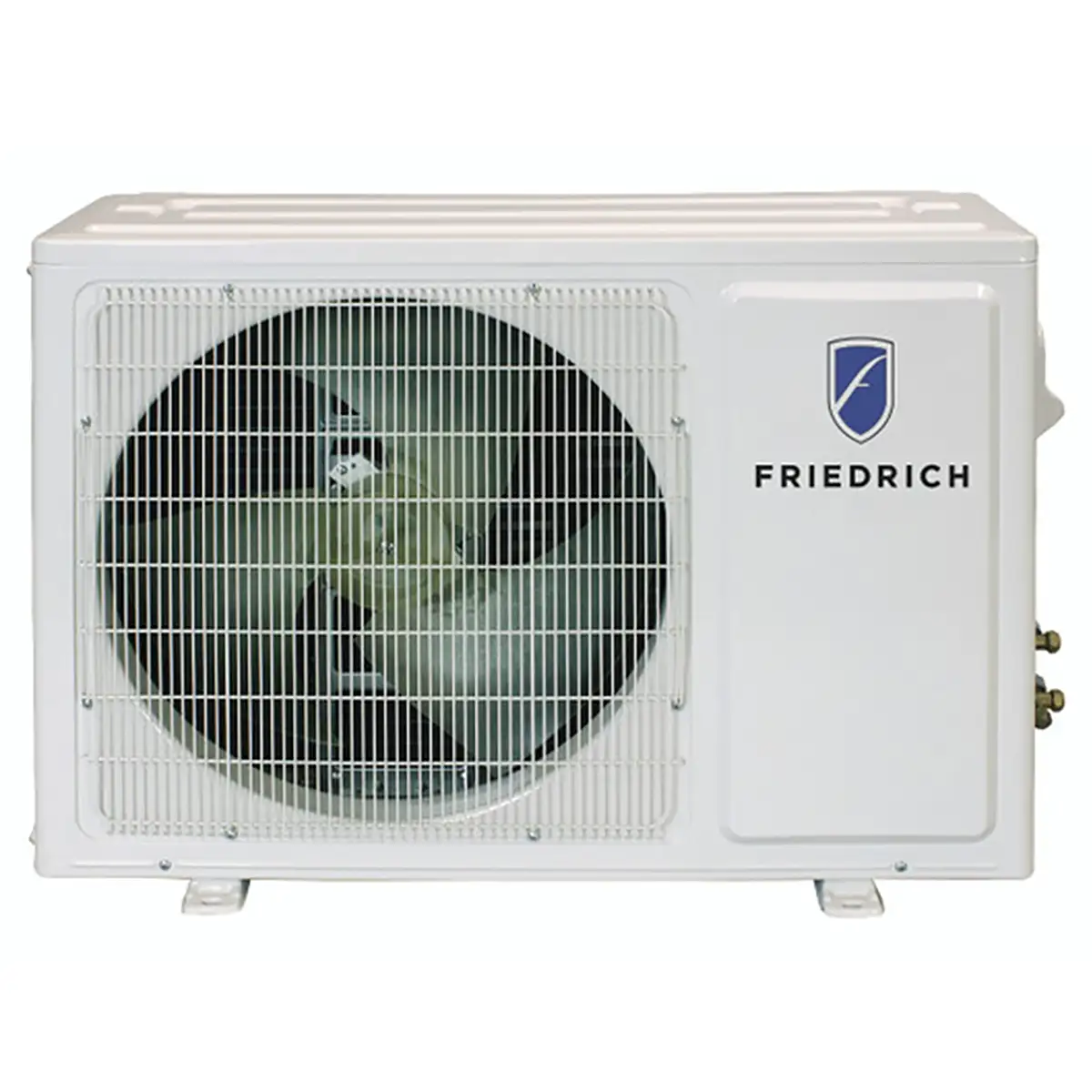

Friedrich FPHFR24A3D Outdoor Unit 24000 Btu/h 230V R454B

Product Description

The FRIEDRICH FPHFR24A3D is a 24000 BTU/h single-zone outdoor condensing unit designed for use with cassette or ducted indoor air handlers in the Floating Air product line. Operating on 230 volts and charged with R454B low-GWP refrigerant, this unit is engineered for high-efficiency split-system applications. HVAC technicians install this outdoor section as part of a matched single-zone mini-split or concealed-duct system where space constraints or aesthetics require a ceiling cassette or ducted indoor terminal. The R454B refrigerant charge reflects current refrigerant transition standards replacing older HFC blends in new equipment.

This outdoor unit is suited for residential and light-commercial single-zone installations where a cassette or ducted indoor unit is required. Typical applications include finished rooms, retail spaces, offices, and other environments where exposed wall units are not preferred. The unit pairs with a compatible FRIEDRICH Floating Air cassette or ducted indoor air handler. Install scenarios typically involve rooftop, ground-level pad, or wall-bracket mounting with refrigerant line sets connecting to the indoor terminal.

Key Features

• 24000 BTU/h capacity suitable for single-zone residential and light-commercial spaces
• R454B refrigerant — a low global-warming-potential HFC blend meeting current regulatory direction
• 230V single-zone outdoor unit designed for cassette or ducted indoor terminal pairing
• Part of the FRIEDRICH Floating Air product line for concealed-style split systems

Compatibility

Designed as an OEM-matched outdoor condensing unit for FRIEDRICH Floating Air single-zone cassette and ducted split systems rated at 24000 BTU/h with R454B refrigerant.

Installation Notes

Installation should be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling refrigerants. Disconnect and lock out all power before connecting or servicing refrigerant lines, electrical connections, or control wiring. Follow local mechanical codes and the manufacturer installation manual for line set sizing, condensate routing, and mounting clearances. Do not mix refrigerant types or use this unit with indoor handlers not specified for R454B service.

Technical Specifications

• Capacity: 24000 BTU/h
• Item Type: Outdoor Unit
• Refrigerant: R454B
• Voltage: 230V
• Zone Configuration: Single Zone

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFR24A3D
