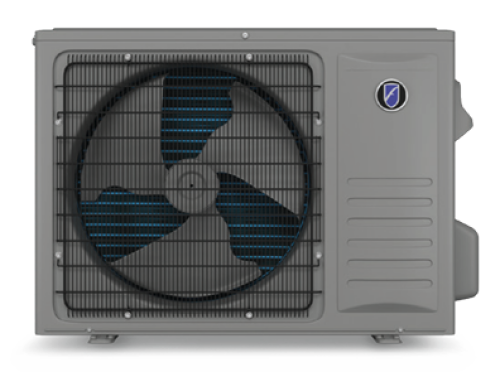

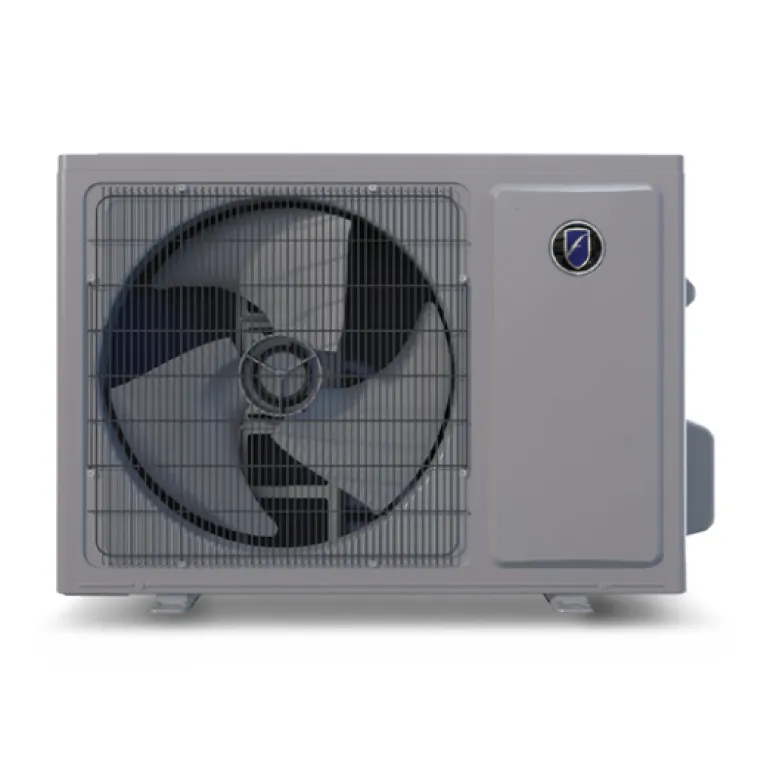

Friedrich FPHFR12A3D 1 Ton Heat Pump Condenser, 20 SEER2, R454B

Product Description

The Friedrich FPHFR12A3D 1 Ton Heat Pump Condenser is designed to match unique heating and cooling needs. Available in single-zone options, this unit offers high energy efficiencies and quiet operation. Features Precision Inverter Technology with a variable speed compressor and a Soft-Start compressor. Operates as a low ambient heat pump down to -22°F and provides low ambient cooling down to 5°F.

• Precision Inverter Technology (variable speed compressor)
• Soft-Start compressor
• BLDC motor

Product Highlights

This Friedrich heat pump condenser delivers customized comfort with high energy efficiency and quiet operation for year-round peace of mind.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFR12A3D

Technical Specifications

• Liquid Line: 1/4"
• SEER2: 20
• Cooling Capacity: 12,000 Btu
• Heating Capacity: 5,500–18,000 Btu
• COP2: 3.52
• EER2: 12
• HSPF2: 9.5
• Sound Level: 64 dB(A)
• Moisture Removal: 2.5 pints/hr
• Gas Line: 3/8"
• A2L Compatible: Yes
• Auto Switching Heat: Yes
• BTU: 12000
• BTU Cooling Rating: 12000 Btu/h
• BTU Heat Rating: 12000 Btu/h
• Compressor Type: Rotary
• Decibel Rating (dB): 64 dB
• EER: 12.0
• HSPF2 Range: 7.5 - 25.0
• HVAC System Type: Heat Pump
• Indoor Outdoor: Outdoor
• Multi-Zone Compatible: No
• Phase: Single Phase
• Refrigerant: R-454B
• Tonnage: 1 Ton
• Volts: 230V
• Zones: 1
