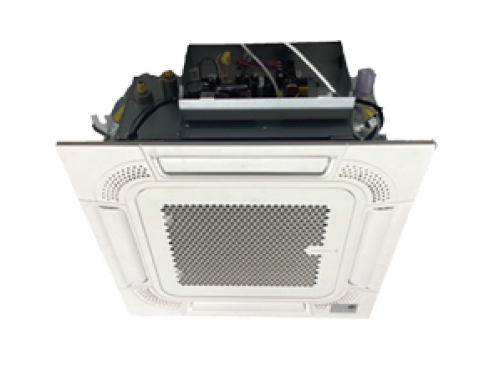

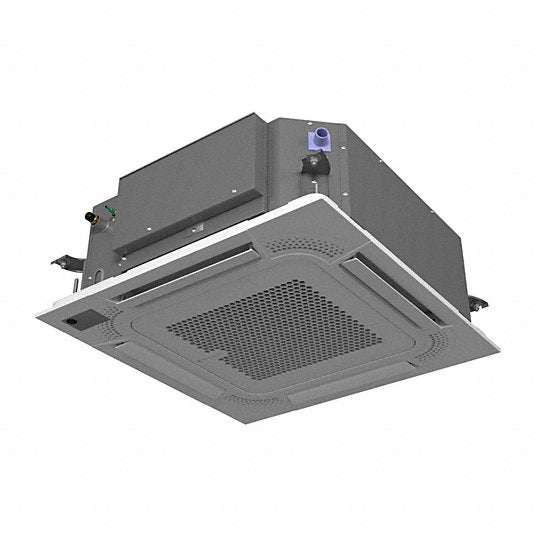

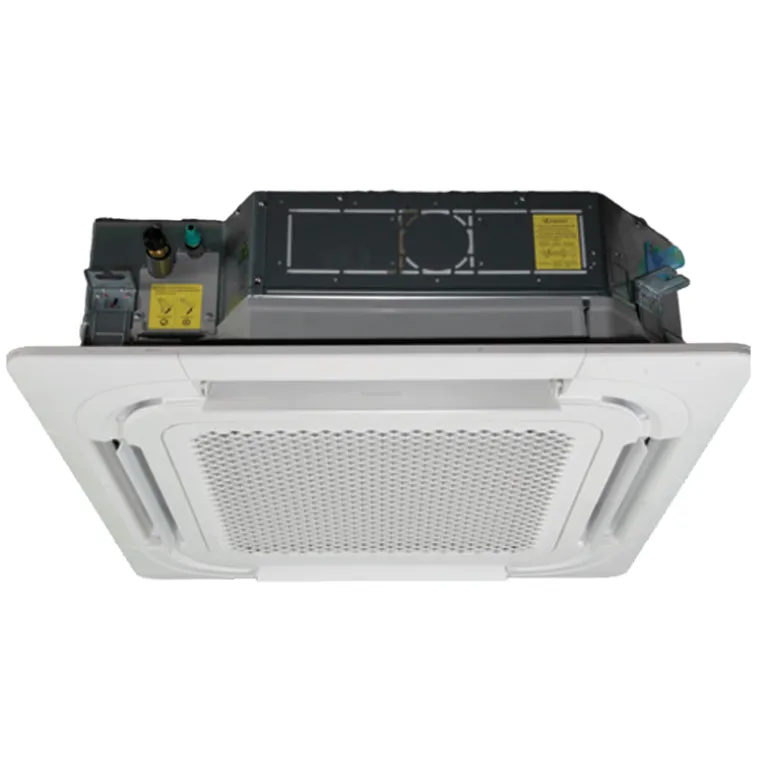

Friedrich FPHFC18A3D 1.5 Ton Floating Air Ceiling Cassette Indoor Unit

Product Description

The Friedrich FPHFC18A3D 1.5 Ton Floating Air Ceiling Cassette Indoor Unit is designed for customized comfort. This ductless mini-split system is available in single- and multi-zone options, offering high energy efficiencies and quiet operation. It features 360/8-way air flow, built-in Wi-Fi, and independent vane control for precise air distribution.

• Features Precision Inverter Technology with a variable speed compressor.
• Equipped with a BLDC motor and Soft-Start compressor.
• Offers 3 fan speeds and an ultra-quiet turbo fan.

Product Highlights

This Friedrich indoor unit provides flexible installation and a clean, modern look, with all models being ENERGY STAR qualified.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFC18A3D
• Country of Origin: China

Technical Specifications

• Voltage: 208V/230V~,60Hz,1P
• Max. Airflow: 588 CFM
• Min. Airflow: 394 CFM
• Nominal Tons: 1.5 Ton
• Brand: FRIEDRICH
• Refrigerant: R454B
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 Btu/h
• Sound Level: 39/32/29 dB(H/M/L)
• Connection: Flare
• Moisture Removal: 3.2 pints/hr
• Air Filtration: Air Filtering
• Minimum Average Coverage Area: 700 sq ft
• Maximum Average Coverage Area: 1,000 sq ft
• Compatible Apps: ComfortPro
• Compressor Technology: Variable Output (Inverter)
• Control Location: App
• Minimum Cooling Capacity: 7,800 BtuH
• Maximum Cooling Capacity: 24,000 BtuH
• Current: 6.3 A; 6.78 A
• Energy Efficiency Ratio (EER) Rating: 12
• For Line Length - Maximum: 150 ft
• Frequency: 60 Hz
• Heat Pump Heating Capacity - Minimum: 8,500 BtuH
• Heat Pump Heating Capacity - Maximum: 24,000 BtuH
• Heating Method: Heat Pump
• Includes: A2L Sensor
• Includes Air Filter: Air Filter
• Indoor Mounting: Ceiling Mount
• Liquid Line Size: 1/4 in
• Number of Speeds: Variable
• Operation Mode: Cooling/Heating
• Phase: Single
• Power Source: Hardwired
• Programming Capability: Weekly Schedules
• Refrigerant Type: R-454B
• Remote Control Functions: Fan Speed
• Seacoast Corrosion Protection: Front and Rear Coil
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 20.0
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; ETL Approved
• Suction Line Size: 1/2 in
• System Component: Air Handler Only
• Wattage - Cooling: 1,500 W
• Wattage - Heating: 1,560 W
• Cooling Power: 18000 btu
• Heating Power: 18000 btu
• Category: Ductless Mini-Splits
• Product Marketing Name: Friedrich Floating Air Pro X Ductless Mini-split Ceiling Cassette (Indoor Unit)
• EER(2): 12.0
• SEER(2): 20.0
