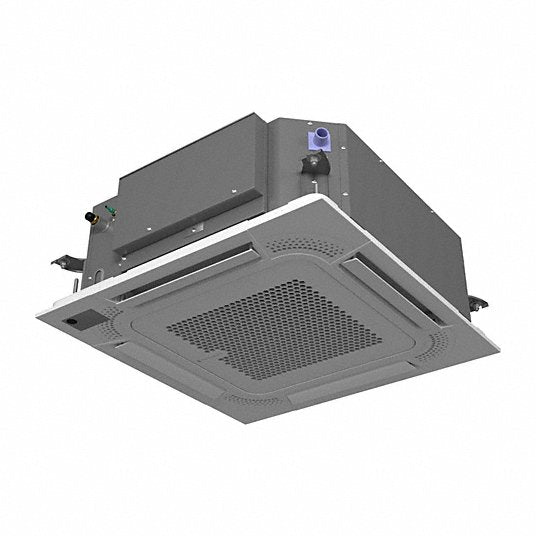

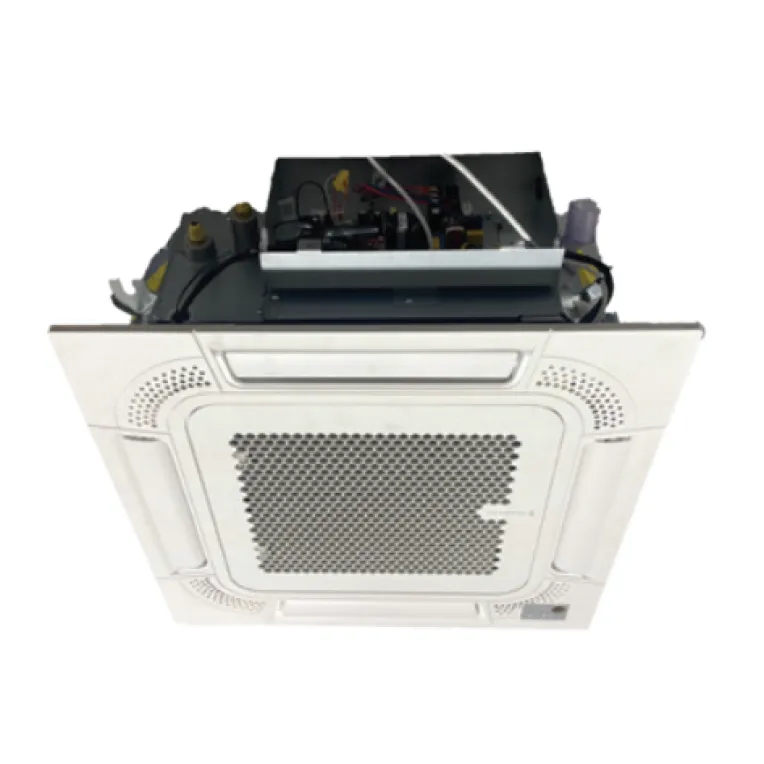

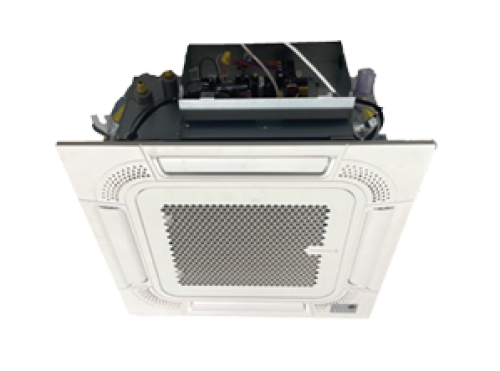

Friedrich FPHFC12A3D Floating Air Pro X Multi Zone 12,000 BTU Cassette (Indoor Model)

Product Description

The FRIEDRICH FPHFC12A3D Floating Air Pro X Multi Zone 12,000 BTU Cassette is an indoor model air handler designed for ceiling installation to distribute cooled or heated air. It can connect to an outdoor condenser for a multizone mini-split system. Features Precision Inverter technology and a BLDC motor for efficient operation.

• Features Precision Inverter technology (variable speed compressor)
• Equipped with a Soft-Start compressor
• Includes built-in Wi-Fi and sleep mode

Product Highlights

This ceiling-mount cassette air handler offers precise air distribution and quiet operation for customized comfort.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFC12A3D
• Country of Origin: China

Technical Specifications

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFC12A3D
• Air Filtration: Air Filtering
• Airflow: 235 cfm; 294 cfm; 341 cfm; 1,354 cfm
• Minimum Average Coverage Area: 450 sq ft
• Maximum Average Coverage Area: 550 sq ft
• Compatible Apps: ComfortPro
• Compressor Technology: Variable Output (Inverter)
• Control Location: App
• Minimum Cooling Capacity: 4,300 BtuH
• Maximum Cooling Capacity: 14,500 BtuH
• Current: 4.25 A; 4.3 A
• Energy Efficiency Ratio (EER) Rating: 12
• For Line Length - Maximum: 130 ft
• Frequency: 60 Hz
• Heat Pump Heating Capacity - Minimum: 5,500 BtuH
• Heat Pump Heating Capacity - Maximum: 18,000 BtuH
• Heating Method: Heat Pump
• Includes: A2L Sensor
• Includes Air Filter: Air Filter
• Indoor Depth: 22-1/2 in
• Indoor Height: 8-1/2 in
• Indoor Mounting: Ceiling Mount
• Indoor Width: 22-1/2 in
• Liquid Line Size: 1/4 in
• Number of Speeds: Variable
• Operation Mode: Cooling/Heating
• Outdoor Sound Level: 64 dBA
• Phase: Single
• Power Source: Hardwired
• Programming Capability: Weekly Schedules
• Refrigerant Precharge: 38.1 oz
• Refrigerant Type: R-454B
• Remote Control Functions: Fan Speed
• Seacoast Corrosion Protection: Front and Rear Coil
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 20.0
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; ETL Approved
• Suction Line Size: 3/8 in
• System Component: Air Handler Only
• Voltage: 208/230V AC
• Wattage - Cooling: 1,000 W
• Wattage - Heating: 1,000 W
• Cooling Power: 12000 btu
• Heating Power: 12000 btu
• Category: Ductless Mini-Splits
• Product Marketing Name: Friedrich Floating Air Pro X Ductless Mini-split Ceiling Cassette (Indoor Unit)
• Cooling Capacity (BTUh): 12,000
• Heat Pump Capacity (BTUh): 12,000
• EER(2): 12.0
• Cooling Area (Sq Ft.): Up to 550
• SEER(2): 20.0
