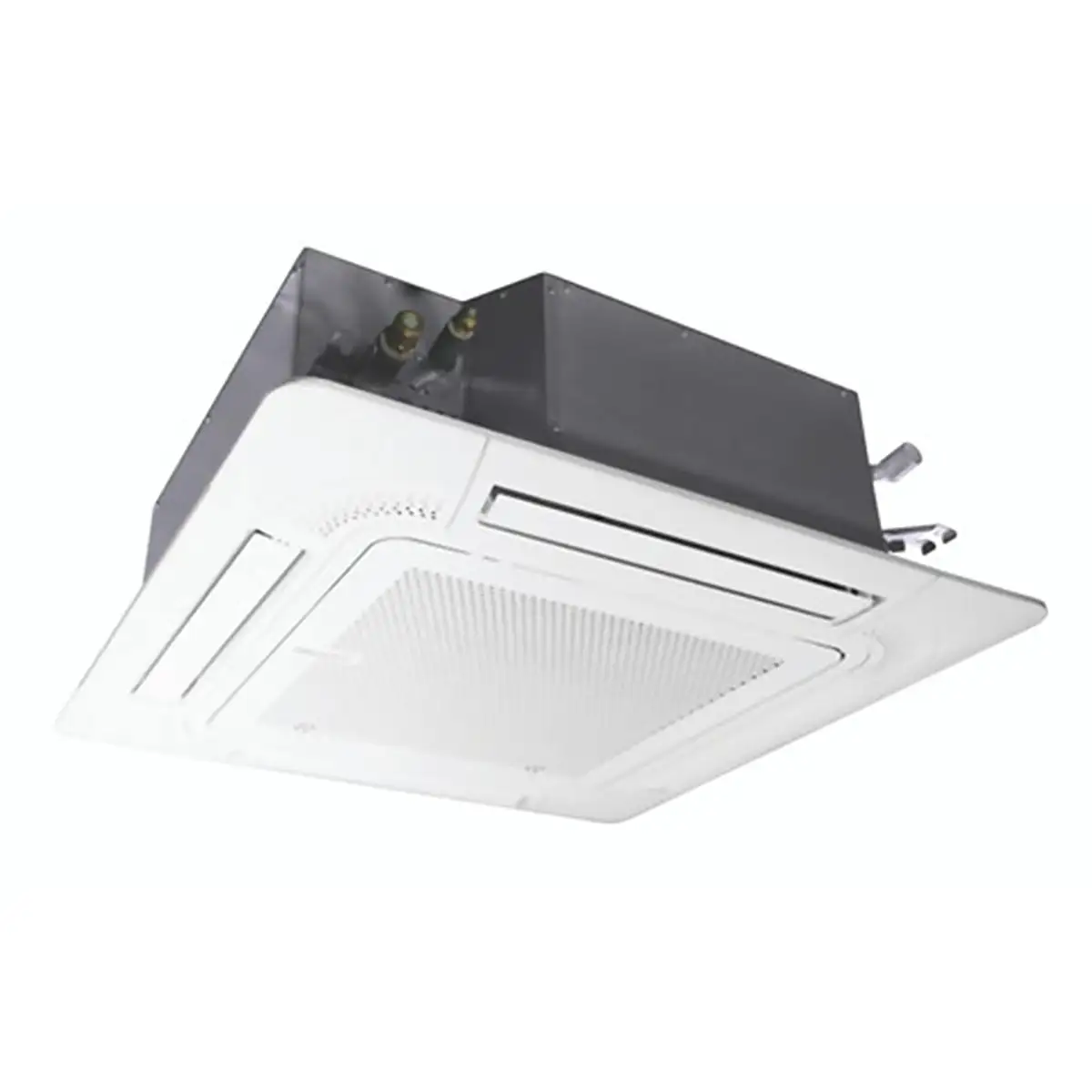

Friedrich FPHFC09A3D 9000 Btu Ceiling Cassette Indoor Unit

Product Description

The FRIEDRICH FPHFC09A3D is a 9000 BTU ceiling cassette indoor unit designed for residential and light commercial ductless mini-split systems. It operates on R454B refrigerant and includes built-in Wi-Fi for remote thermostat and scheduling control through a compatible app. The cassette mounts flush into a drop ceiling or framed ceiling cavity, distributing conditioned air in multiple directions for even coverage across the served space. Licensed HVAC technicians install and commission this unit as part of a single-zone or multi-zone system paired with a compatible outdoor condensing unit.

The FPHFC09A3D fits ceiling installations in offices, server rooms, hotel rooms, retail spaces, and residential applications where wall space is limited or a low-profile ceiling-integrated look is preferred. It is compatible with both single-zone and multi-zone configurations, giving installers flexibility depending on system design. Built-in Wi-Fi eliminates the need for a separate smart thermostat or external Wi-Fi adapter, simplifying the control wiring at rough-in.

Key Features

• 9000 BTU capacity suitable for small to medium single-room applications
• Ceiling cassette form factor mounts flush for low-profile, unobtrusive installation
• Built-in Wi-Fi enables remote control and scheduling without an external adapter
• R454B refrigerant with lower global warming potential than legacy refrigerants
• Compatible with both single-zone and multi-zone outdoor units for system design flexibility

Compatibility

Designed for use in Friedrich Floating Air single-zone and multi-zone ductless mini-split systems. Consult the Friedrich system pairing guide to confirm compatible outdoor unit models before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerant under EPA Section 608 requirements. Power down all associated electrical circuits before beginning any wiring or refrigerant line connections. The ceiling cassette requires a framed ceiling opening and drain pan plumbing to a suitable condensate drain point. Follow local mechanical codes and the manufacturer installation manual for refrigerant line sizing, flaring, and evacuation procedures.

Technical Specifications

• Capacity: 9000 BTU/h
• Item Type: Indoor Ceiling Cassette
• Refrigerant: R454B
• Wi-Fi Enabled: Yes

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFC09A3D
