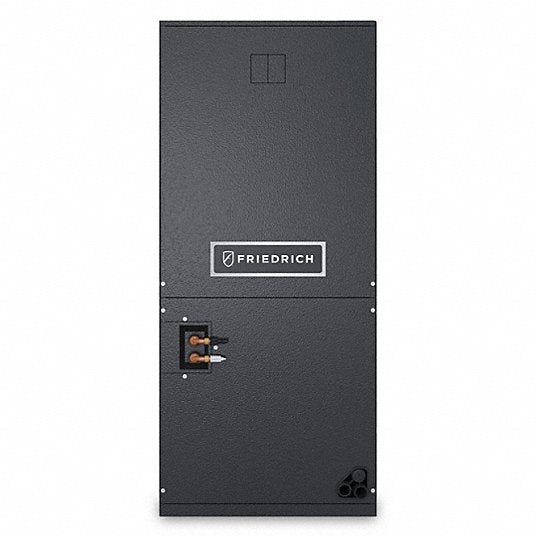

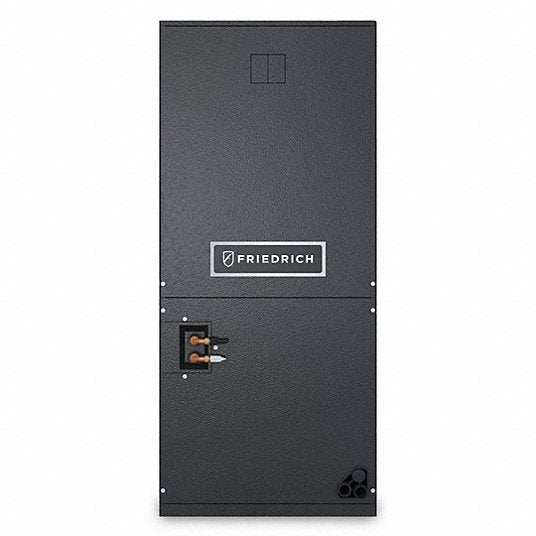

Friedrich FPHFA48A3D Air Handler 48,000 BtuH 4 Ton 208-230V AC 1 Phase 7/8 hp

Product Description

The FRIEDRICH FPHFA48A3D Air Handler is designed for integration into HVAC systems, providing climate control and dehumidification. This 4-ton unit delivers 48,000 BtuH nominal cooling capacity with a maximum airflow of 1,600 cfm, powered by a 7/8 hp Electronically Commutated Motor. Operating on 208-230V AC, 1 Phase, it features a steel housing and is pre-charged with R454B refrigerant, ensuring efficient and reliable performance for cooling applications.

• Installs into an HVAC system for climate control and dehumidification.
• Features a 7/8 hp Electronically Commutated Motor and variable speeds.
• AHRI Certified, Energy Star Cold Climate Certified, and ETL Listed for quality and efficiency.

Product Highlights

This air handler offers 48,000 BtuH cooling, 1,600 cfm airflow, and is electric heater compatible, making it a versatile solution for HVAC installations.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFA48A3D
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: FPHFA48A3D
• Nominal Cooling Capacity (Tons): 4 ton
• Nominal Cooling Capacity (BtuH): 48,000 BtuH
• Maximum Airflow: 1,600 cfm
• Motor Horsepower: 7/8 hp
• Motor Type: Electronically Commutated
• Input Voltage: 208-230V AC
• Phase: 1
• Frequency: 60 Hz
• Operating Current: 18.8 A
• Number of Speeds: Variable
• Electric Heater Compatible: Yes
• Fuse Rating: 50 A
• Expansion Device Type: Expansion Valve
• Refrigerant Type: R454B
• Refrigerant Pre-Charged: Yes
• Refrigerant Capacity: 169.3 oz
• Coil Connection Type: Flared
• Housing Material: Steel
• Suction Line Size: 3/4 in
• Liquid Line Size: 3/8 in
• Return Air Opening Width: 24-1/8 in
• Return Air Opening Depth: 2-1/4 in
• Filter Size: 22 in W x 20 in H
• Supply Opening Width: 22 in
• Supply Opening Depth: 2 in
• Coil Drain Connection Size: 3/4 in
• Overall Height: 55-1/2 in
• Overall Width: 22 in
• Overall Depth: 22 in
• Standards: AHRI Certified; Energy Star Cold Climate Certified; ETL Listed
• Discharge Position: Multiposition
• Drive Type: Direct Drive
