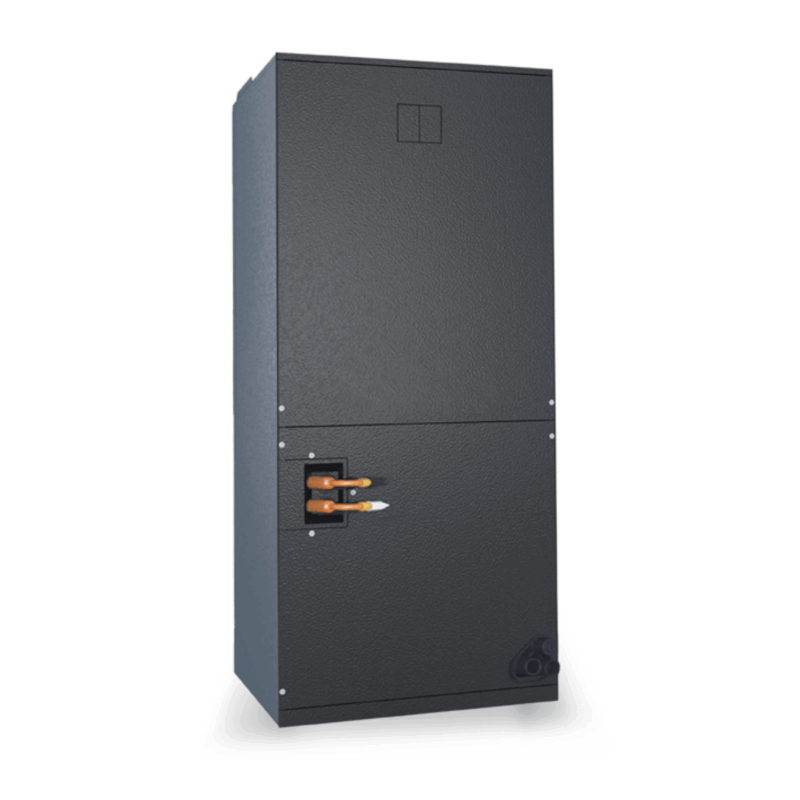

Friedrich FPHFA24A3D Air Handler 24,000 BtuH 2 Ton

Product Description

The FRIEDRICH FPHFA24A3D Air Handler is designed for HVAC systems, providing climate control and dehumidification by cooling the airstream. This 24,000 BtuH, 2 Ton unit operates on 208-230V AC and utilizes R454B refrigerant. It features an Electronically Commutated Motor with variable speeds, ensuring efficient airflow up to 800 cfm. Ideal for residential or light commercial applications, it is AHRI Certified, Energy Star Cold Climate Certified, and ETL Listed.

• Electronically Commutated Motor with variable speeds for efficient airflow.
• Provides climate control and dehumidification for interior spaces.
• AHRI Certified, Energy Star Cold Climate Certified, and ETL Listed for assured quality.

Product Highlights

This air handler offers efficient climate control and dehumidification with an Electronically Commutated Motor, variable speeds, and R454B refrigerant, meeting AHRI, Energy Star, and ETL standards.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFA24A3D
• Country of Origin: China

Technical Specifications

• Brand: Friedrich
• MPN: FPHFA24A3D
• Product Type: Air Handler
• Category: Heat Pump
• Nominal Cooling Capacity: 2 ton, 24,000 BtuH
• Heating Capacity: 24000 BTU
• Maximum Airflow: 800 cfm
• Motor Horsepower: 1/2 hp
• Motor Type: Electronically Commutated
• Input Voltage: 208-230V AC
• Phase: 1
• Frequency: 60 Hz
• Current: 9.4 A
• Number of Speeds: Variable
• Electric Heater Compatible: Yes
• Fuse Rating: 30 A
• Expansion Device Type: Expansion Valve
• Refrigerant Type: R454B
• Refrigerant Pre-Charged: Yes
• Refrigerant Capacity: 88.1 oz
• Coil Connection Type: Flared
• Housing Material: Steel
• Suction Line Size: 5/8 in
• Liquid Line Size: 3/8 in
• Return Air Opening Width: 21 in
• Return Air Opening Depth: 3-3/8 in
• Filter Size: 20 in W x 18 in H
• Supply Opening Width: 17-1/2 in
• Supply Opening Depth: 2-5/8 in
• Coil Drain Connection Size: 3/4 in
• Compatible Heater Grainger Part Number: 871A06; 871A07; 871A08; 871A09; 871A10
• Compatible Heater Manufacturer Part Number: AUX10KWA; AUX15KWA; AUX20KWA; AUX5KWA; AUX7KWA
• Standards: AHRI Certified; Energy Star Cold Climate Certified; ETL Listed
