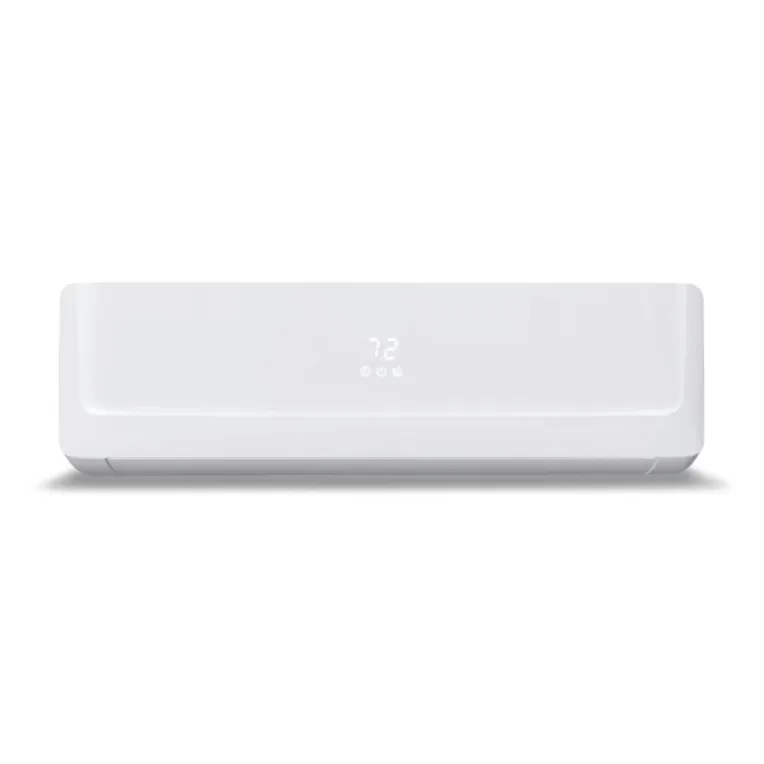

Friedrich FAHSW09A1C Floating Air Indoor Wall Unit 9000 BTU

Product Description

The Friedrich FAHSW09A1C Floating Air Indoor Wall Unit is designed for use with a compatible outdoor condenser. This single zone system features high efficiency ratings and low ambient heating and cooling capabilities. It operates in multiple modes including auto, cool, dry, fan only, and heat. The unit also features a washable anti-microbial filter.

• Built-In WiFi connectivity for wireless control.
• Features FastPro technology for easy maintenance.
• Offers multiple fan speeds and a 24-hour timer.

Product Highlights

This Friedrich indoor wall unit provides efficient heating and cooling with convenient features like built-in WiFi and a user-friendly remote control.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FAHSW09A1C

Technical Specifications

• Brand: FRIEDRICH
• MPN: FAHSW09A1C
• Category 1: HVAC Equipment
• Category 2: Specialty
• Category 3: Mini-Split Units & Accessories
• Indoor Unit Type: Wall Mount
• Cooling BTUs: 9000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 9500
• Dehumidification (pts/hr): 1.9
• CFMs: 247 / 294 / 341 / 382 (L / M / H / Max)
• Fan Speeds: 4
• Min. Indoor Noise Level (dBA): 32
• Indoor Noise Level (dBA): 32 / 35 / 37 / 39 / 42 (Q / L / M / H / Max)
• Control Type: Hand Held Remote
• Connectivity: Built-In WiFi
• Wired Thermostat Optional: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Max. Pipe Length (ft.): 66
• Max. Height Difference (Indoor / Outdoor) (ft.): 49
• Width (in.): 33.875
• Depth (in.): 8.5
• Height (in.): 11.25
• Voltage: 115V~60Hz,1P
• Max. Airflow: 382 CFM
• Min. Airflow: 247 CFM
• Fan Motor: 46 W Output
• Refrigerant: R-32
• SEER2: 20
• Cooling Capacity: 9,000 Btu/h @ 95°F
• Heating Capacity: 9,500 Btu/h @ 47°F
• COP2: 4.1 @ 47°F
• EER2: 12.5 @ 95°F
• HSPF2: 9.0
• Sound Level: 42/39/37/35/32 dBA (Max./M/L/Quiet)
