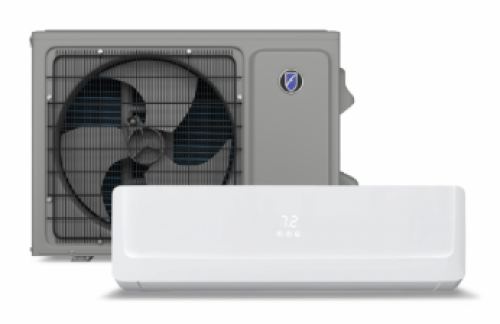

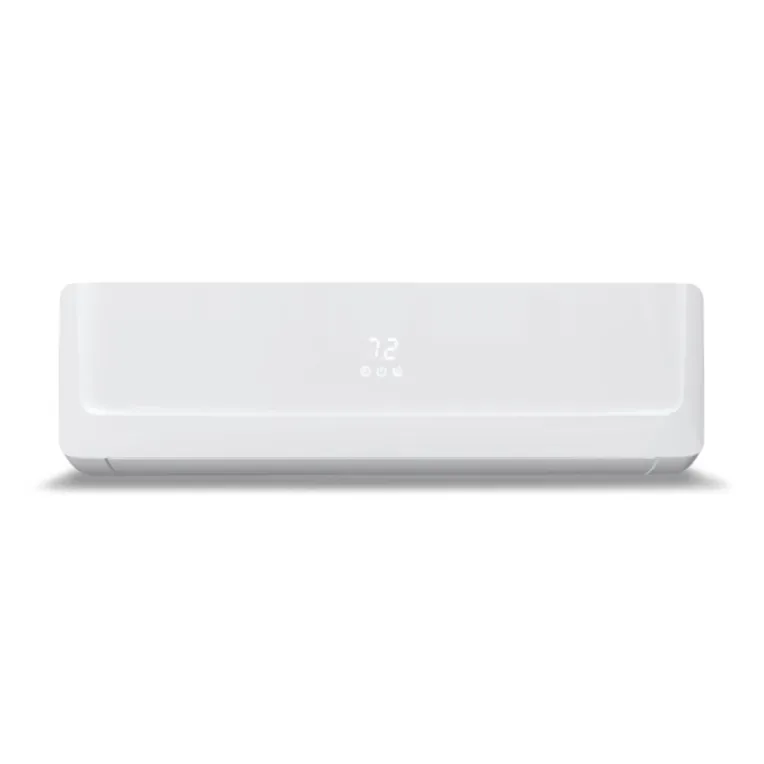

Friedrich FAHFW24A3D Floating Air Indoor Wall Unit 24000 BTU

Product Description

The Friedrich FAHFW24A3D is a 24000 BTU Floating Air indoor wall unit designed for use with a compatible outdoor condenser. It features FastPro Technology for easier installation and maintenance, providing HVAC technicians easy access to internal components. This unit offers optimized airflow with 4-way air swing and is compatible with both Select Series and Pro Series outdoor compressors.

• Built-In WiFi
• Fast Pro design for the fastest access for maintenance of any wall-mounted ductless system
• Auto Clean indoor coil

Product Highlights

This Friedrich indoor wall unit provides efficient cooling and heating with smart connectivity and a user-friendly design.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FAHFW24A3D
• Country of Origin: China

Technical Specifications

• Indoor Unit Type: Wall Mount
• Cooling BTUs: 24000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 24000
• Dehumidification (pts/hr): 4.2
• CFMs: 441 / 559 / 647 / 706 (L / M / H / Max)
• Fan Speeds: 4
• Min. Indoor Noise Level (dBA): 39
• Indoor Noise Level (dBA): 39 / 41 / 43 / 48 / 50 (Q / L / M / H / Max)
• Control Type: Hand Held Remote
• Connectivity: Built-In WiFi
• Wired Thermostat Optional: Yes
• Line Set Liquid Line: 3/8"
• Line Set Suction Line: 5/8"
• Width (in.): 45.25
• Depth (in.): 10.125
• Height (in.): 13.25
• Air Filtration: Air Filtering
• Airflow: 441 cfm; 559 cfm; 647 cfm; 706 cfm
• Minimum Average Coverage Area: 1,200 sq ft
• Maximum Average Coverage Area: 1,400 sq ft
• Compatible Apps: ComfortPro
• Compressor Technology: Variable Output (Inverter)
• Control Location: App
• Minimum Cooling Capacity: 8,000 BtuH
• Maximum Cooling Capacity: 25,000 BtuH
• Current: 8.7 A; 9.3 A
• Energy Efficiency Ratio (EER) Rating: 12.25
• Frequency: 60 Hz
• Heat Pump Heating Capacity - Minimum: 8,000 BtuH
• Heat Pump Heating Capacity - Maximum: 25,000 BtuH
• Heating Method: Heat Pump
• Includes: A2L Sensor
• Includes Air Filter: Air Filter
• Indoor Depth: 10-1/8 in
• Indoor Height: 13-1/4 in
• Indoor Mounting: Wall Mount
• Indoor Width: 45-1/4 in
• Liquid Line Size: 3/8 in
• Number of Speeds: Variable
• Operation Mode: Cooling/Heating
• Outdoor Sound Level: 61 dBA
• Phase: Single
• Power Source: Hardwired
• Programming Capability: Weekly Schedules
• Refrigerant Precharge: 70.6 oz
• Refrigerant Type: R-454B
• Seacoast Corrosion Protection: Front and Rear Coil
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 22.5
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; ETL Approved
• Suction Line Size: 5/8 in
• System Component: Air Handler Only
• Voltage: 208/230V AC
• Wattage - Cooling: 1,959 W
• Wattage - Heating: 1,954 W
• Max. Airflow: 706 CFM
• Min. Airflow: 441 CFM
• Motor Type: 35 W (Output)
• COP2: 3.3
• EER2: 10.6
• HSPF2: 8.5
• Sound Level: 50/48/43/41/39 dBA (Max./M/L/Quiet)
• Connection: Flare
• Moisture Removal: 4.2 pints/hr
