Product Description

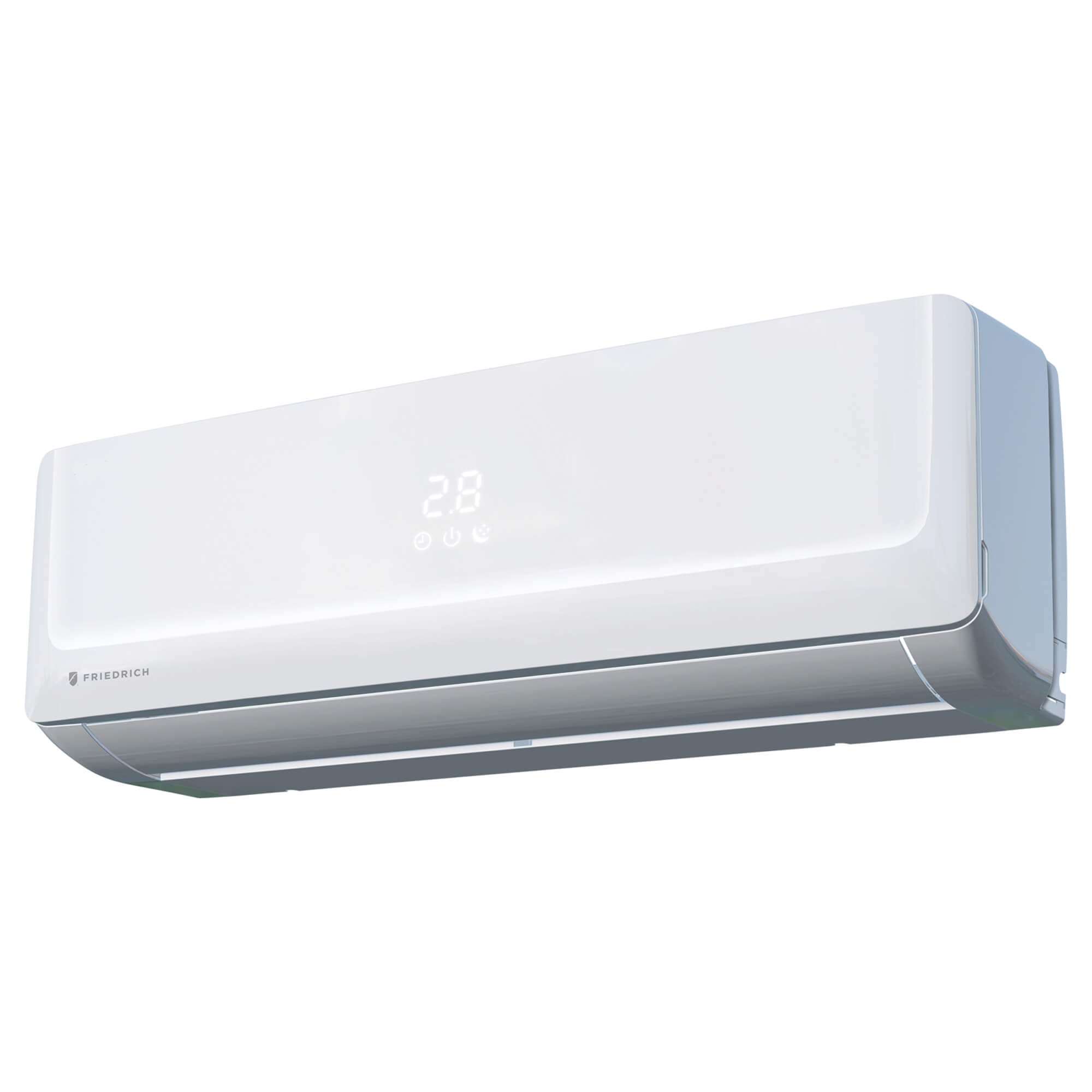

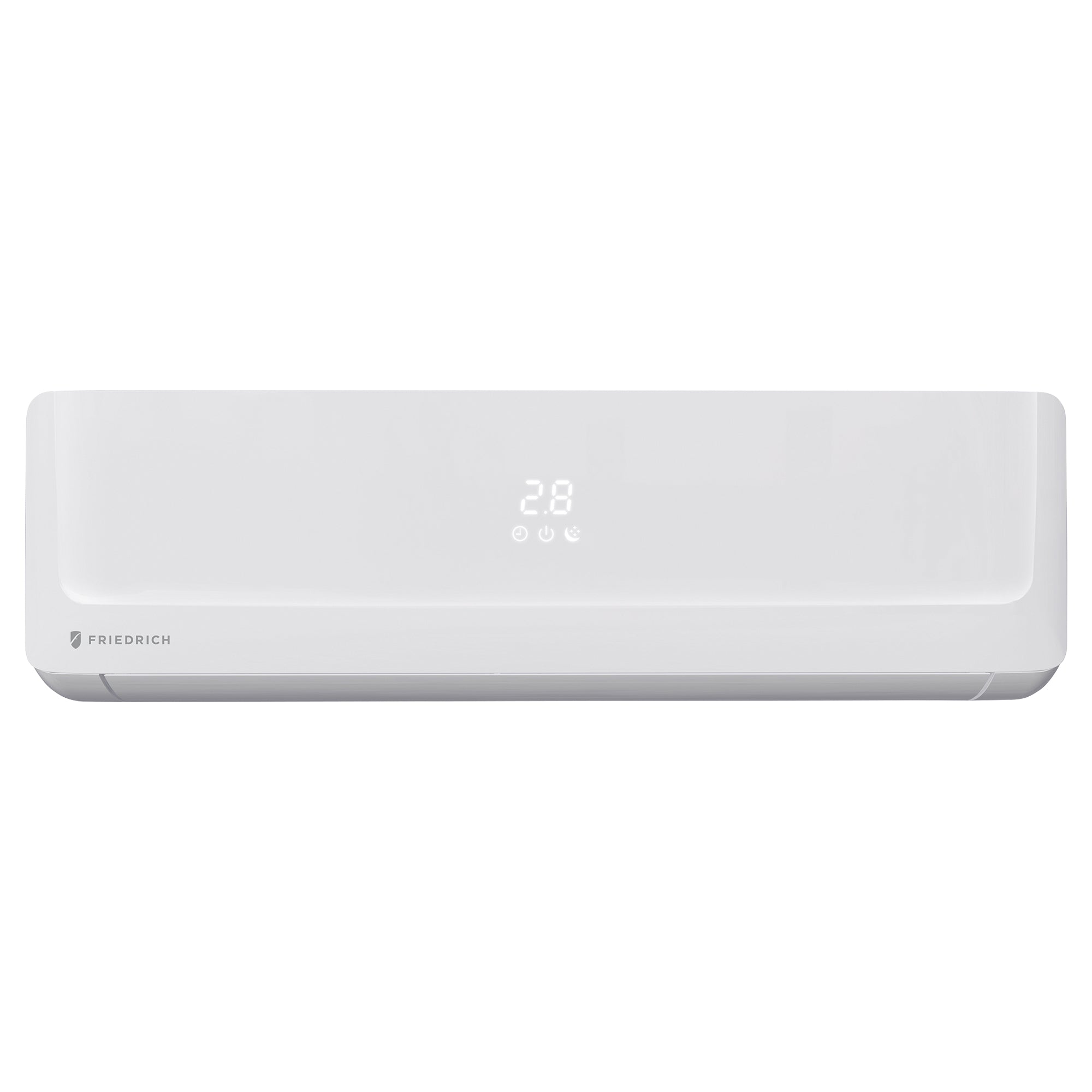

The Friedrich FAHFW18A3D is an 18000 BTU Floating Air indoor wall unit with heat and cool functionality and built-in WiFi. This unit features FastPro Technology, providing HVAC technicians easy access to internal components for simplified installation and maintenance. Compatible with Select Series and Pro Series outdoor compressors, it offers optimized airflow with 4-way air swing. It can cool a room approximately 800 sq. ft.
- Built-In WiFi
- Fast Pro design for the fastest access for maintenance of any wall-mounted ductless system
- Auto Clean indoor coil
Product Highlights
The FAHFW18A3D offers efficient cooling and heating with convenient features like built-in WiFi and FastPro technology for easy maintenance.
Product Information
Standard Information
-
Brand: FRIEDRICH
-
Manufacturer Part Number: FAHFW18A3D
-
Country of Origin: China
Technical Specifications
-
Indoor Unit Type: Wall Mount
-
Cooling BTUs: 18000
-
Includes Heat Pump: Yes
-
Heat Pump BTUs: 18000
-
Dehumidification (pts/hr): 3.8
-
CFMs: 382 / 482 / 588 / 647 (L / M / H / Max)
-
Fan Speeds: 4
-
Min. Indoor Noise Level (dBA): 36
-
Indoor Noise Level (dBA): 36 / 39 / 41 / 45 / 48 (Q / L / M / H / Max)
-
Control Type: Hand Held Remote
-
Connectivity: Built-In WiFi
-
Wired Thermostat Optional: Yes
-
Line Set Liquid Line: 1/4"
-
Line Set Suction Line: 1/2"
-
Width (in.): 45.25
-
Depth (in.): 10.125
-
Height (in.): 13.25
-
Air Filtration: Air Filtering
-
Airflow: 382 cfm; 482 cfm; 588 cfm; 647 cfm
-
Minimum Average Coverage Area: 700 sq ft
-
Maximum Average Coverage Area: 1,000 sq ft
-
Compatible Apps: ComfortPro
-
Compressor Technology: Variable Output (Inverter)
-
Control Location: App
-
Minimum Cooling Capacity: 6,500 BtuH
-
Maximum Cooling Capacity: 19,000 BtuH
-
Current: 6.1 A; 6.5 A
-
Energy Efficiency Ratio (EER) Rating: 12.95
-
Frequency: 60 Hz
-
Heat Pump Heating Capacity - Minimum: 6,500 BtuH
-
Heat Pump Heating Capacity - Maximum: 19,000 BtuH
-
Heating Method: Heat Pump
-
Includes: A2L Sensor
-
Includes Air Filter: Air Filter Included
-
Indoor Depth: 10-1/8 in
-
Indoor Height: 13-1/4 in
-
Indoor Mounting: Wall Mount
-
Indoor Width: 45-1/4 in
-
Liquid Line Size: 1/4 in
-
Number of Speeds: Variable
-
Operation Mode: Cooling/Heating
-
Outdoor Sound Level: 58 dBA
-
Phase: Single
-
Power Source: Hardwired
-
Programming Capability: Weekly Schedules
-
Refrigerant Precharge: 53 oz
-
Refrigerant Type: R-454B
-
Seacoast Corrosion Protection: Front and Rear Coil
-
Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 21.0
-
Smart Connectivity: Wi-Fi
-
Standards: AHRI Certified; ETL Approved
-
Suction Line Size: 1/2 in
-
System Component: Air Handler Only
-
Voltage: 208/230V AC
-
Wattage - Cooling: 1,390 W
-
Wattage - Heating: 1,426 W
-
Cooling Capacity (BTUh): 18,000
-
Heat Pump Capacity (BTUh): 18,000
-
EER(2): 12.0
-
SEER(2): 21.0
-
Cooling Area (Sq Ft.): Up to 1,000
