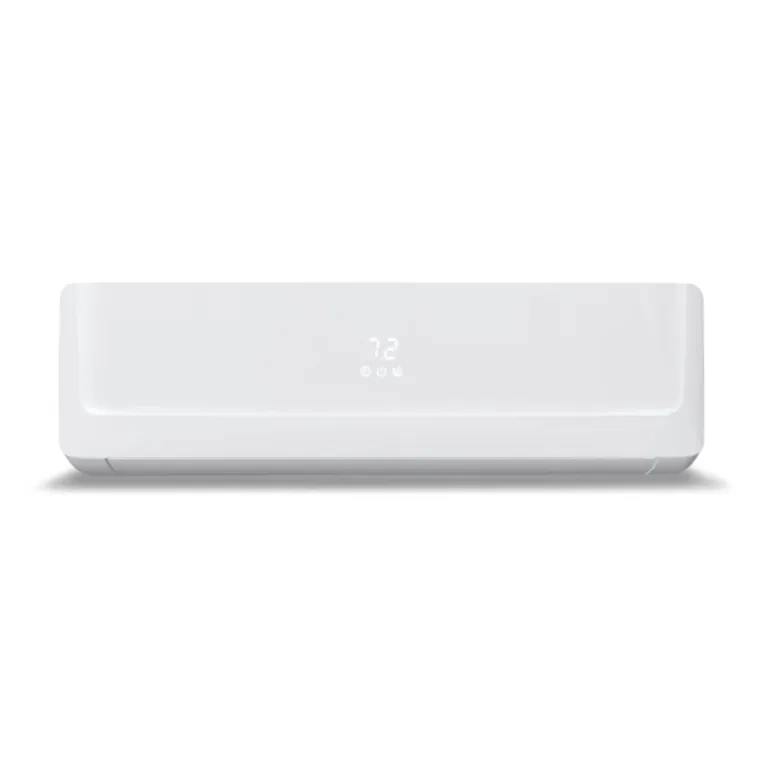

Friedrich FAHFW12A3D Floating Air Pro Indoor Wall Unit 12000 BTU

Product Description

The Friedrich FAHFW12A3D is a 12,000 BTU Floating Air Pro Series indoor wall unit featuring FastPro Technology for simplified installation and maintenance. It offers optimized airflow with 4-way air swing, distributing conditioned air throughout the room. Compatible with single and multi-zone compressors using R454B refrigerant, it provides cooling operation down to 5°F and heating operation down to -13°F.

• Built-In WiFi
• Fast Pro design for the fastest access for maintenance of any wall-mounted ductless system
• Auto Clean indoor coil

Product Highlights

This unit features FastPro Technology, built-in WiFi, and is compatible with the Friedrich ComfortPro App for wireless control, as well as Google Assistant and Alexa voice commands.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FAHFW12A3D
• Country of Origin: China

Technical Specifications

• Indoor Unit Type: Wall Mount
• Cooling BTUs: 12000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 12000
• Dehumidification (pts/hr): 2.5
• CFMs: 253 / 312 / 365 / 394 (L / M / H / Max)
• Fan Speeds: 4
• Min. Indoor Noise Level (dBA): 32
• Indoor Noise Level (dBA): 32 / 35 / 37 / 39 / 42 (Q / L / M / H / Max)
• Control Type: Hand Held Remote
• Connectivity: Built-In WiFi
• Wired Thermostat Optional: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Width (in.): 33.875
• Depth (in.): 8.5
• Height (in.): 11.25
• Voltage: 208/230V AC
• Max. Airflow: 394 CFM
• Min. Airflow: 253 CFM
• Fan Motor: 25W (Output)
• Cooling Capacity: 12,000 Btu
• Heating Capacity: 12,000 Btu
• Connection: Flare
• Moisture Removal: 2.5 pints/hr
• Air Filtration: Air Filtering
• Compatible Apps: ComfortPro
• Compressor Technology: Variable Output (Inverter)
• Control Location: App
• Minimum Cooling Capacity: 4,000 BtuH
• Maximum Cooling Capacity: 13,000 BtuH
• Current: 4.1 A; 4.3 A
• Energy Efficiency Ratio (EER) Rating: 12.25
• Frequency: 60 Hz
• Heat Pump Heating Capacity - Minimum: 4,000 BtuH
• Heat Pump Heating Capacity - Maximum: 13,000 BtuH
• Heating Method: Heat Pump
• Includes: A2L Sensor
• Includes Air Filter: Air Filter
• Liquid Line Size: 1/4 in
• Number of Speeds: Variable
• Operation Mode: Cooling/Heating
• Outdoor Sound Level: 53 dBA
• Phase: Single
• Power Source: Hardwired
• Programming Capability: Weekly Schedules
• Refrigerant Precharge: 38.1 oz
• Refrigerant Type: R-454B
• Seacoast Corrosion Protection: Front and Rear Coil
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 23.0
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; ETL Approved
• Suction Line Size: 3/8 in
• System Component: Air Handler Only
• Wattage - Cooling: 980 W
• Wattage - Heating: 926 W
