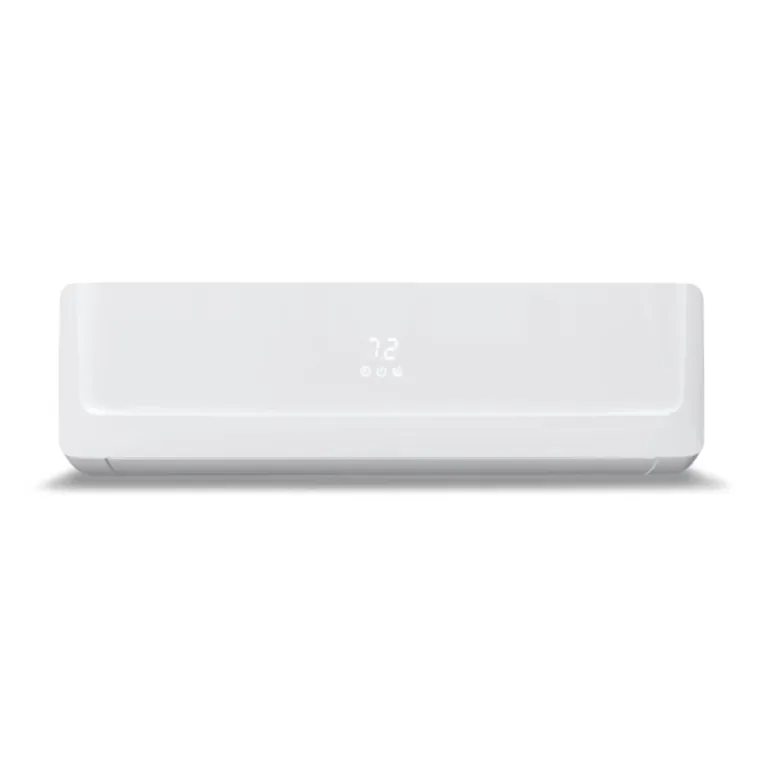

Friedrich FAHFW09A3D Floating Air Pro Indoor Wall Unit - 9000 BTU - 230V

Product Description

The Friedrich FAHFW09A3D is a 9000 BTU Floating Air Pro indoor wall unit designed for both heating and cooling. It features FastPro Technology for simplified installation and maintenance, offering easy access to internal components. Compatible with single and multi-zone compressors using R454B refrigerant, it provides optimized airflow with 4-way air swing. Built-in WiFi enables control via the Friedrich ComfortPro App, Google Assistant, and Alexa voice commands.

• Built-In WiFi
• Fast Pro design for the fastest access for maintenance of any wall-mounted ductless system
• Ultra quiet operation

Product Highlights

This 230V indoor unit offers efficient climate control with smart connectivity and a user-friendly design. Ideal for spaces around 450 sq ft, it ensures consistent comfort.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FAHFW09A3D
• Country of Origin: China

Technical Specifications

• Indoor Unit Type: Wall Mount
• Cooling BTUs: 9000 Btu/h
• Includes Heat Pump: Yes
• Heat Pump BTUs: 9000 Btu/h
• Dehumidification (pts/hr): 1.9
• CFMs: 247 / 294 / 341 / 382 (L / M / H / Max)
• Fan Speeds: 4
• Min. Indoor Noise Level (dBA): 32
• Indoor Noise Level (dBA): 32 / 35 / 37 / 39 / 42 (Q / L / M / H / Max)
• Control Type: Hand Held Remote
• Connectivity: Built-In WiFi
• Wired Thermostat Optional: Yes
• Line Set Liquid Line: 1/4"
• Line Set Suction Line: 3/8"
• Width (in.): 33.875
• Depth (in.): 8.5
• Height (in.): 11.25
• Air Filtration: Air Filtering
• Compressor Technology: Variable Output (Inverter)
• Minimum Cooling Capacity: 3,600 BtuH
• Maximum Cooling Capacity: 10,000 BtuH
• Current: 2.5 A; 3.1 A
• Energy Efficiency Ratio (EER) Rating: 13.65
• Frequency: 60 Hz
• Heat Pump Heating Capacity - Minimum: 3,600 BtuH
• Heat Pump Heating Capacity - Maximum: 10,000 BtuH
• Heating Method: Heat Pump
• Includes: A2L Sensor
• Includes Air Filter: Air Filter
• Liquid Line Size: 1/4 in
• Number of Speeds: Variable
• Operation Mode: Cooling/Heating
• Phase: Single
• Power Source: Hardwired
• Programming Capability: Weekly Schedules
• Refrigerant Precharge: 35.3 oz
• Refrigerant Type: R-454B
• Seacoast Corrosion Protection: Front and Rear Coil
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 25.0
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; ETL Approved
• Suction Line Size: 3/8 in
• System Component: Air Handler Only
• Voltage: 208/230V AC
• Wattage - Cooling: 659 W
• Wattage - Heating: 659 W
• Max. Airflow: 382 CFM
• Min. Airflow: 247 CFM
• Heating Capacity: 9,000 Btu/h
• Connection: Flare
• Moisture Removal: 1.9 pints/hr
