Fresh-Aire Uv tuv-btx-er3 Blue-Tube UV-X

Product Description

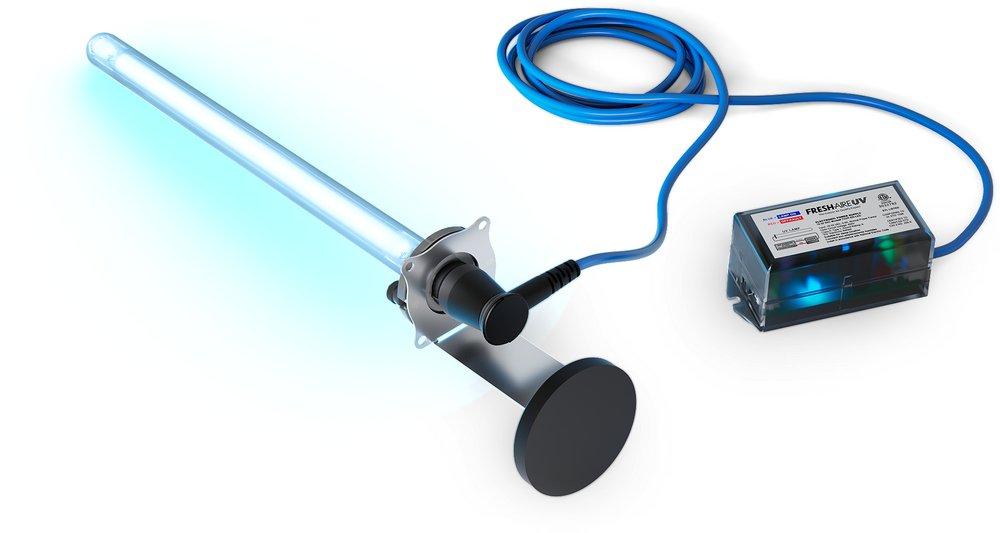

The FRESH-AIRE UV TUV-BTX-ER3 Blue-Tube UV-X is designed to improve indoor air quality. This HVAC UV light neutralizes germs continuously with its powerful UVC light. It features a multi-bracket with a coated anti-vibration magnet for easy installation and delivers exceptional performance for maintaining a healthy HVAC system. The kit includes a power supply, lamp cable, UV lamp, magnetic bracket, mounting hardware, panel indicator, and installation decal.

• Auto sensing 18-32V & 110-277V models
• 3-year UVC 254nm quartz lamp
• Magnetic mounting bracket with anti-vibration coating

Product Highlights

Improve indoor air quality with the Blue-Tube UV-X. It features a long lamp life, improved power supply, and easy installation.

Product Information

Standard Information

• Brand: FRESH-AIRE UV
• Manufacturer Part Number: TUV-BTX-ER3
• Country of Origin: UNITED STATES

Technical Specifications

• Amperage Rating: 0.8 A
• Voltage Rating: 24 V
• Frequency Rating: 60 Hz
• Power Rating: 20 VA
• Average Life: 3 years
• Lamp Diameter: 0.9 in
• Mounting Type: Bracket
• Wavelength: 254 nm
• Material: Quartz Glass
• Additional Information: Shielded Quartz Hot Filament
• AMP: 0.8
• Collection: Blue-Tube UV
• Power Source: Electric
• Product Type: Ultraviolet Lamp
• Volts: 18/32V
• Brand: Fresh-Aire UV
• Model: TUV-BTX-ER3
• MPN: TUV-BTX-ER3
• Country of Origin: United States
• Description: 18-32 VAC UV Light System
